NSN 6640-01-453-8567 200510, 2005-10, 980041
Product Details | BIOLOGICAL STAINING JAR
6640-01-453-8567 A wide mouth vessel designed for use in staining specimens on microscope slides. It has integral grooves on inner sides for holding slides in a vertical position. It is furnished with a cover. Excludes DISH, BIOLOGICAL STAINING.
Part Alternates: 200510, 2005-10, 980041, 98-0041, 6640-01-453-8567, 01-453-8567, 6640014538567, 014538567, 442081000
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 12 MAR 1998 | 01-453-8567 | 13655 ( JAR, BIOLOGICAL STAINING ) |

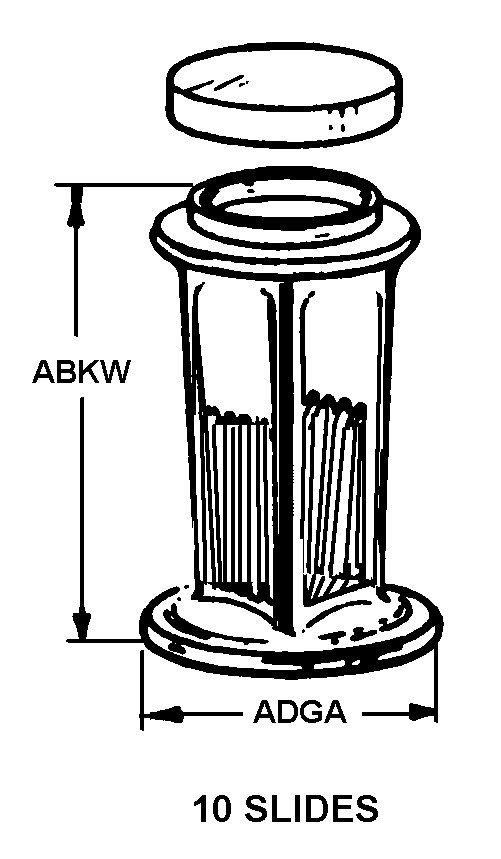

Drawings & Photos | NSN 6640-01-453-8567
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-01-453-8567
Related Products | NSN 6640-01-453-8567
Technical Data | NSN 6640-01-453-8567
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | COPLIN |
| MATERIAL | PLASTIC, POLYETHYLENE |
| STYLE DESIGNATOR | H5 10 SLIDES |
| OVERALL HEIGHT | 4.500 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.300 INCHES NOMINAL |
| PRIMARY CONTAINER TYPE | ANY ACCEPTABLE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | COPLIN STAINING JAR; PLASTIC; UNBREAKABLE HIGH DENSITY POLYETHYLENE; INTERNAL GROOVES HOLD UP TO TEN 3 IN. X 1 IN. SLIDES BACK TO BACK; 4-1/2 HIGH X 2.3 IN. DIAMETER AT BASE; USED IN STAINING SPECIMENS ON MICROSCOPE SLIDES |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | JAR BIOLOGICAL STAINING 4.5 X 2.3IN USED IN STAINING SPECIMENS |
Restrictions/Controls & Freight Information | NSN 6640-01-453-8567
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6640-01-453-8567
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
