NSN 6640-01-331-8520 3702025, 37020-25, 01-331-8520
Product Details | MEASURING PIPET
6640-01-331-8520 A nonbulbous instrument calibrated with graduations along the cylindrical portion only.
Part Alternates: 3702025, 37020-25, 6640-01-331-8520, 01-331-8520, 6640013318520, 013318520
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 DEC 1990 | 01-331-8520 | 16759 ( PIPET, MEASURING ) |
Drawings & Photos | NSN 6640-01-331-8520
Cross Reference | NSN 6640-01-331-8520
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 37020-25 | 75278 | KIMBLE GLASS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-01-331-8520
Related Products | NSN 6640-01-331-8520
Technical Data | NSN 6640-01-331-8520
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | MOHR |
| MATERIAL | GLASS, BOROSILICATE |

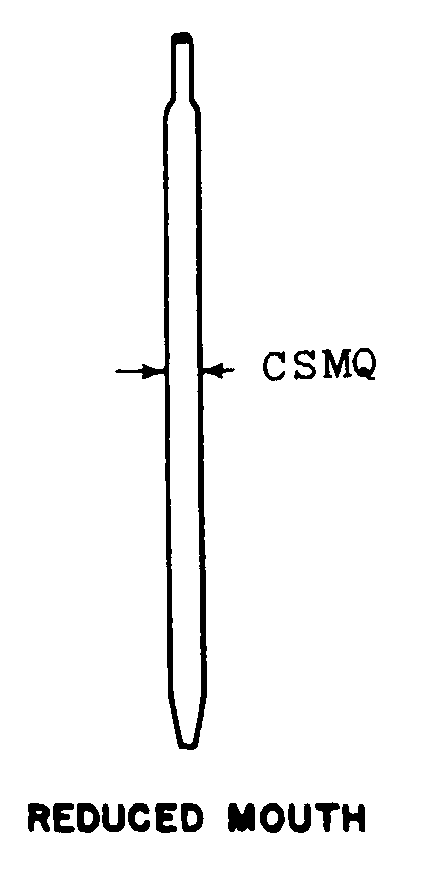

| STYLE DESIGNATOR | M17 REDUCED MOUTH |
| SCALE PORTION OUTSIDE DIAMETER | 12.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 24.900 MILLILITERS MINIMUM AND 25.100 MILLILITERS MAXIMUM |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 0.1 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.0 TO 25.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION |
| GRADUATION MARKING METHOD | ETCHED OR FIRED STAIN |
| PRIMARY CONTAINER TYPE | PACKAGE |
| PRIMARY CONTAINER UNIT QUANTITY | 12 |
| SPECIAL FEATURES | TEMPERED TIP,1 WHITE BAND |
| III EXTERIOR CONTAINER QUANTITY | 1 |
| III UNIT OF ISSUE WEIGHT | 0.40 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 0.40 POUNDS |
| III UNIT OF ISSUE CUBE | 0.011 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 0.011 CUBIC FEET |
Restrictions/Controls & Freight Information | NSN 6640-01-331-8520
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-01-331-8520
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
