Product Details | BLOOD DILUTING PIPET

6640-01-044-4708 A graduated, tubular glass vessel having a bulb which may contain a glass pellet to facilitate the mixing of diluted blood. May include a length of rubber tubing and a mouthpiece.

Part Alternates: B40322, B4032-2, GGH216, GG-H-216, 15011, 1501-1, 6640-01-044-4708, 01-044-4708, 6640010444708, 010444708

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 14 JUL 1977 01-044-4708

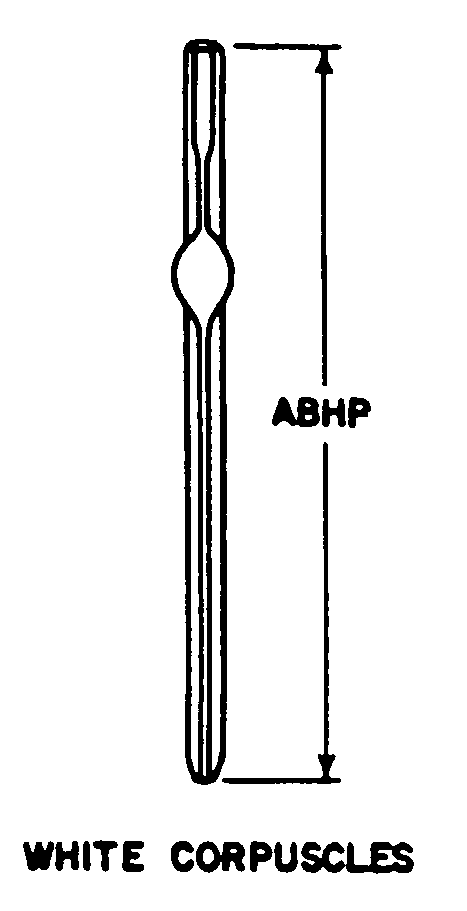

Drawings & Photos | NSN 6640-01-044-4708


Cross Reference | NSN 6640-01-044-4708

Part Number Cage Code Manufacturer
1501-1 7A784 FISHER SCIENTIFIC CO
B4032-2 04687 BAXTER HEALTHCARE CORP IV SYSTEMS/GOV SALES
GG-H-216 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-01-044-4708

Technical Data | NSN 6640-01-044-4708

Characteristic Specifications
DESIGN DESIGNATION THOMA
MATERIAL GLASS
STYLE DESIGNATOR M11 WHITE CORPUSCLES
OVERALL LENGTH 104.00 MILLIMETERS MINIMUM AND 121.00 MILLIMETERS MAXIMUM
CAPACITY RATING 0.200 MILLILITERS MINIMUM AND 0.400 MILLILITERS MAXIMUM
CALIBRATION FUNCTION TO DELIVER
SCALE READING DIRECTION TOP TO BOTTOM OUTSIDE SINGLE SCALE
SCALE MARKING 11.0,1.0,0.5
GRADUATION MARKING METHOD FIRED ENAMEL
ACCURACY CERTIFIER MANUFACTURER
PRIMARY CONTAINER TYPE CARTON
PRIMARY CONTAINER UNIT QUANTITY 1
TOTAL PRIMARY CONTAINER QUANTITY 12
UNIT PACKAGE TYPE CARTON
SPECIAL FEATURES WITH GLASS OR PLASTIC PELLET; W/O TUBING AND MOUTHPIECE; REPLACEMENT PIPET FOR HEMACYTOMETER SET, 6630-00-427-7000; FOR MOUTHPIECE, ORDER 6640-00-935-1382; FOR CLEANING WIRE, ORDER 6640-00-926-7688, FOR RUBBER TUBING ORDER, 4720-00-141-9070
DEPARTURE FROM CITED DOCUMENT AS MODIFIED BY PARA 5.1.1.1.3.1 PIPETS -WHITE
III INTERMEDIATE PACKAGE QUANTITY 1
III EXTERIOR CONTAINER QUANTITY 576
III UNIT OF ISSUE WEIGHT 0.03 POUNDS
III EXTERIOR CONTAINER WEIGHT 35.00 POUNDS
III UNIT OF ISSUE CUBE 0.010 CUBIC FEET
III EXTERIOR CONTAINER CUBIC MEASURE 4.000 CUBIC FEET
III PART NAME ASSIGNED BY CONTROLLING AGENCY PIPET BLOOD DILUTING THOMA GLASS M11 WHITE CORPUSCLES 12S
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE GG-H-216

Restrictions/Controls & Freight Information | NSN 6640-01-044-4708

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 088120 GLASSWARE LABORATORY
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 704 unknown
Originating Activity Code KX Defense Supply Center Philadelphia
Philiadelphia, PA 19101
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity M Medical supplies, equipment, samples records, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6640-01-044-4708

Category Code Description
Materiel Category and Inventory ManagerC Medical/Dental Materiel
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group03Not-Potency-Dated
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Category Code Description
Stores Account Code1Marine Corps Stock Fund Account Item.
Materiel Management CodeBAll CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code2ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Physical Category Code1Bin
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDMU.S. Marine Corps
Service OrganizationMU.S. Marine Corps
ReparabilityZNonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Category Code Description
Cognizance Codes9BNavy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesYTERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
