Product Details | MEASURING PIPET

6640-00-990-1111 A nonbulbous instrument calibrated with graduations along the cylindrical portion only.

Part Alternates: NNNP350, 7064, 6640-00-990-1111, 00-990-1111, 6640009901111, 009901111

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 16 NOV 1966 00-990-1111

Drawings & Photos | NSN 6640-00-990-1111


Cross Reference | NSN 6640-00-990-1111

Part Number Cage Code Manufacturer
7064 14674 CORNING GLASS WORKS
NNNP350 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-990-1111

Technical Data | NSN 6640-00-990-1111

Characteristic Specifications
DESIGN DESIGNATION MOHR
MATERIAL GLASS, FED DD-G-541, TYPE 1, CLASS A OR GLASS, FED DD-G-541, TYPE 1, CLASS B

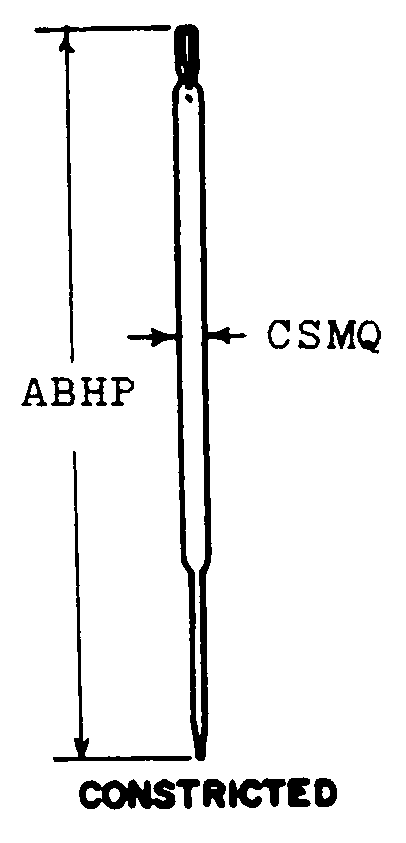

STYLE DESIGNATOR M19 CONSTRICTED
SCALE PORTION OUTSIDE DIAMETER 7.50 MILLIMETERS NOMINAL
CAPACITY RATING 5.000 MILLILITERS NOMINAL
CALIBRATION FUNCTION TO CONTAIN
SCALE READING DIRECTION BOTTOM TO TOP INSIDE SINGLE SCALE
SCALE GRADUATION UNIT 0.1 MILLILITERS SINGLE INTERVAL SINGLE SCALE
SCALE GRADUATION UNIT RANGE 0.0 TO 5.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE
SCALE MARKING EVERY TENTH
GRADUATION MARKING METHOD ENGRAVED OR ETCHED OR FIRED ENAMEL OR FIRED STAIN
UNIT PACKAGE TYPE BOX
SPECIAL FEATURES COLOR CODED W/BLUE BAND! FUSED-IN MARKINGS
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND B CLASS
DEPARTURE FROM CITED DESIGNATOR FEAT
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE NNNP350

Restrictions/Controls & Freight Information | NSN 6640-00-990-1111

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
