NSN 6640-00-989-1109 STAINLESS FILTER HOLDER, STAINLESSFILTERHOLDER, XX4504700
Product Details | MICROPOROUS FILTER UNIT
6640-00-989-1109 An item designed to hold a DISK, FILTERING, MICROPOROUS so that when air, gasses or fluids pass through, contaminants are left on the surface of the filtering disk.
Part Alternates: STAINLESS FILTER HOLDER, STAINLESSFILTERHOLDER, XX4504700, XX45-047-00, 6640-00-989-1109, 00-989-1109, 6640009891109, 009891109
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-989-1109 | 41087 ( FILTER UNIT, MICROPOROUS ) |

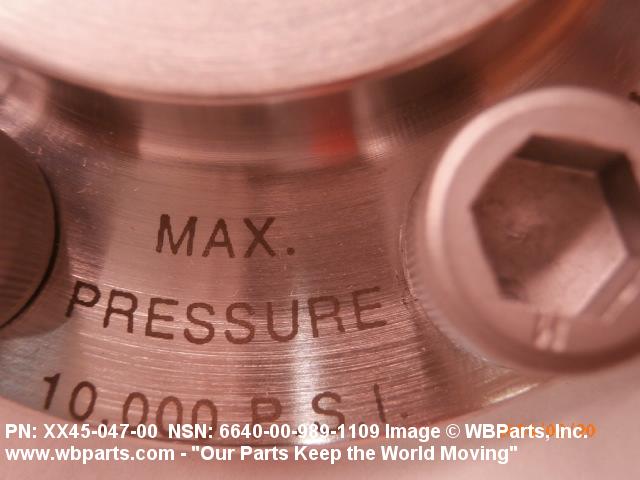

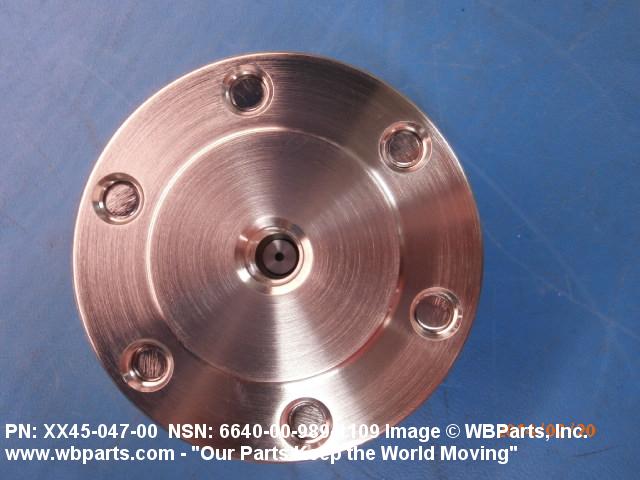

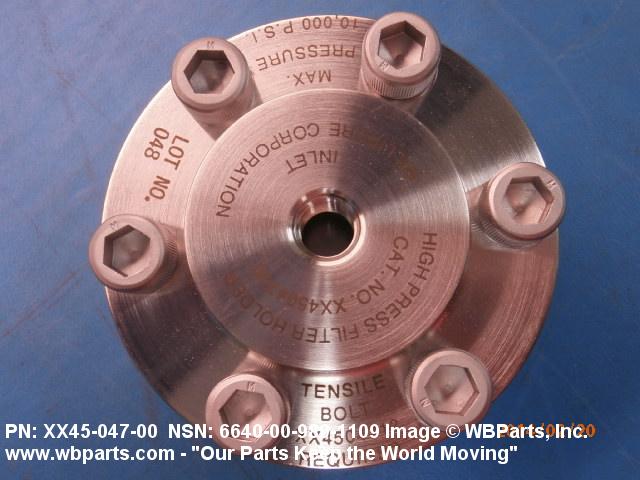

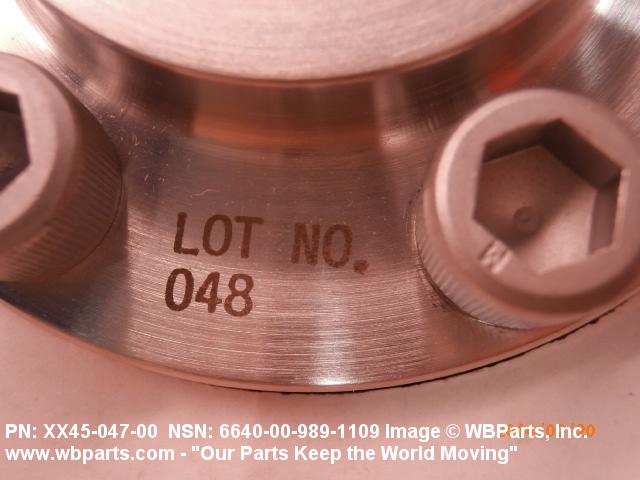

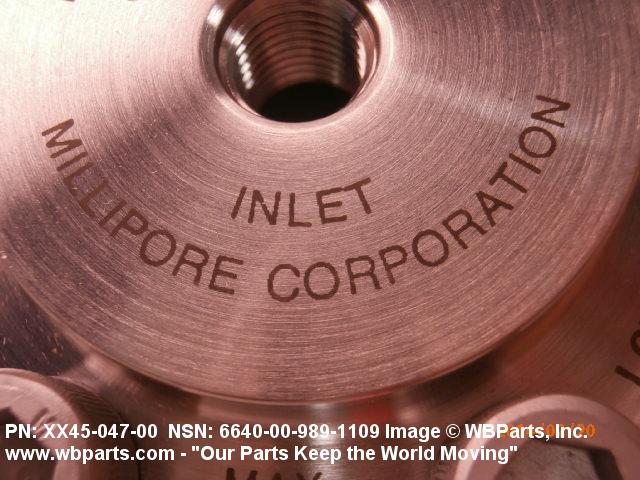

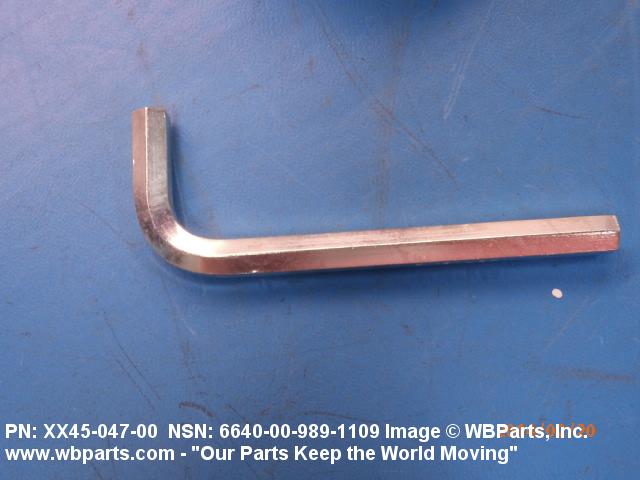

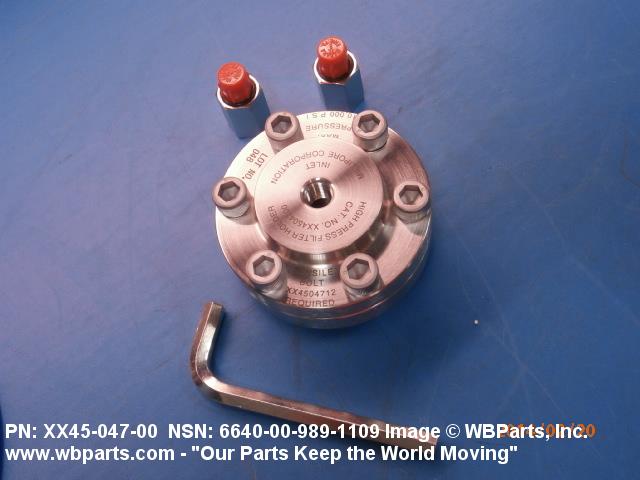

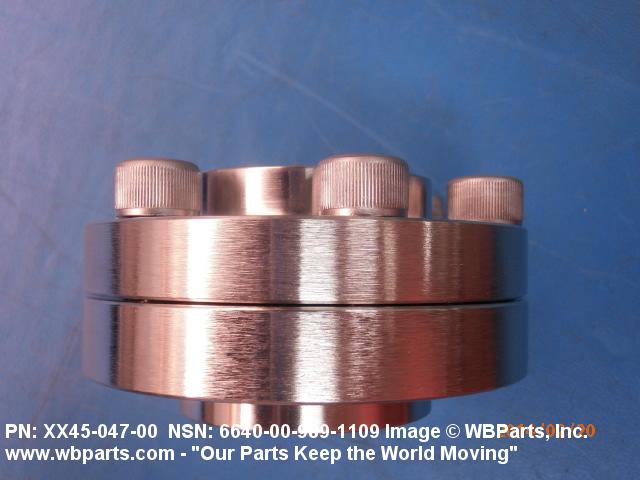

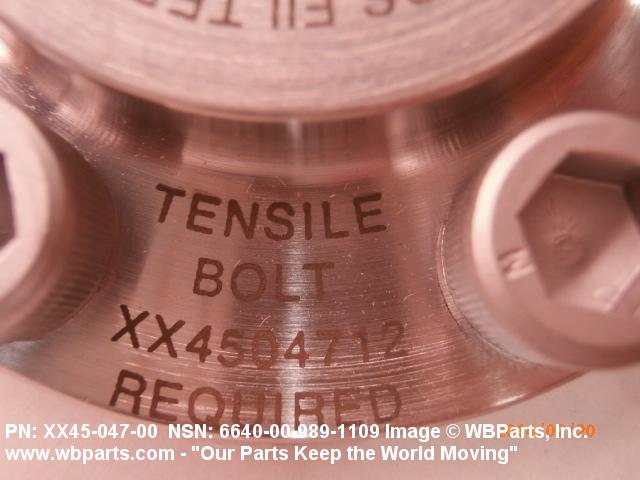

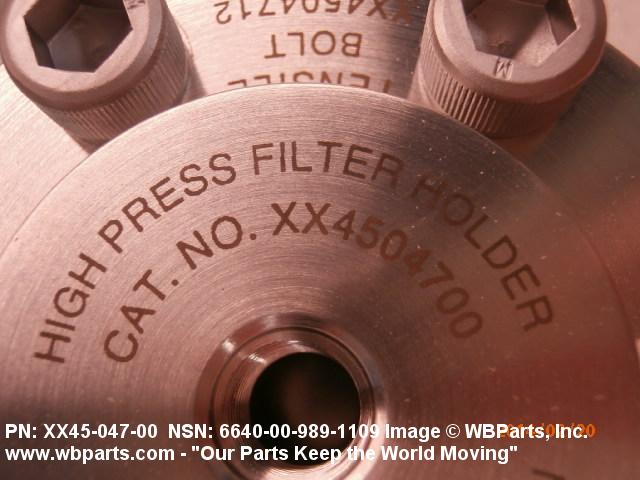

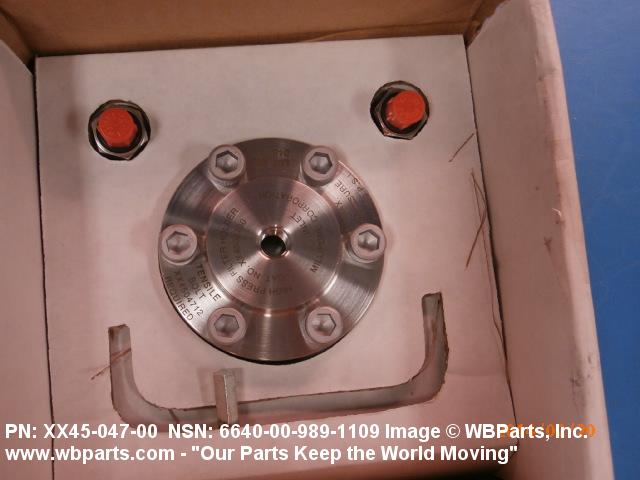

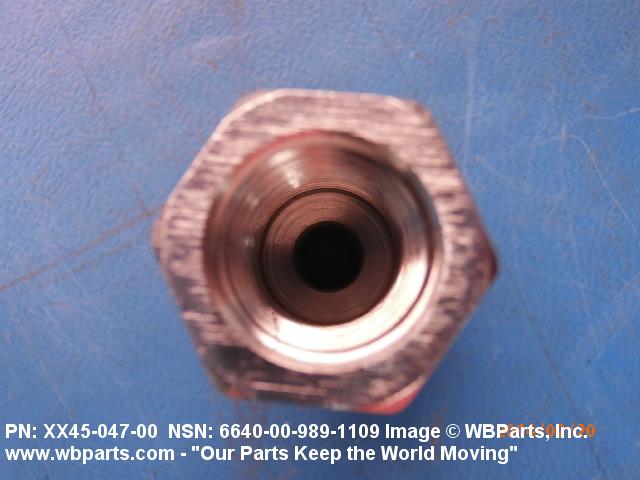

Drawings & Photos | NSN 6640-00-989-1109
Demand History | NSN 6640-00-989-1109
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| XX45-047-00 | 2023-08-233 | 18 | DIBBS |
| XX45-047-00 | 2022-11-320 | 14 | DIBBS |
| XX45-047-00 | 2022-07-202 | 12 | DIBBS |
| XX45-047-00 | 2021-02-49 | 9 | DIBBS |
| XX45-047-00 | 2020-03-90 | 9 | DIBBS |
| 6640-00-989-1109 | 2019-02-38 | 1 | TR |
| 6640-00-989-1109 | 2018-06-169 | 10 | DIBBS |
| 6640-00-989-1109 | 2018-06-156 | 1 | India |
| 6640-00-989-1109 | 2016-11-312 | 15 | DIBBS |
| 6640-00-989-1109 | 2016-10-292 | 7 | DIBBS |
| 6640-00-989-1109 | 2015-07-189 | 8 | DIBBS |
| 6640-00-989-1109 | 2015-01-15 | 11 | DIBBS |
| 6640-00-989-1109 | 2014-05-149 | 6 | DIBBS |
| XX4504700 | 2014-01-29 | 1 | India |
| XX4504700 | 2014-01-07 | 1 | India |
| 6640-00-989-1109 | 2012-06-167 | 3 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-989-1109
Related Products | NSN 6640-00-989-1109
Technical Data | NSN 6640-00-989-1109
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, STAINLESS |
| FILTER DISK SIZE ACCOMMODATED | 47.0 MILLIMETERS |

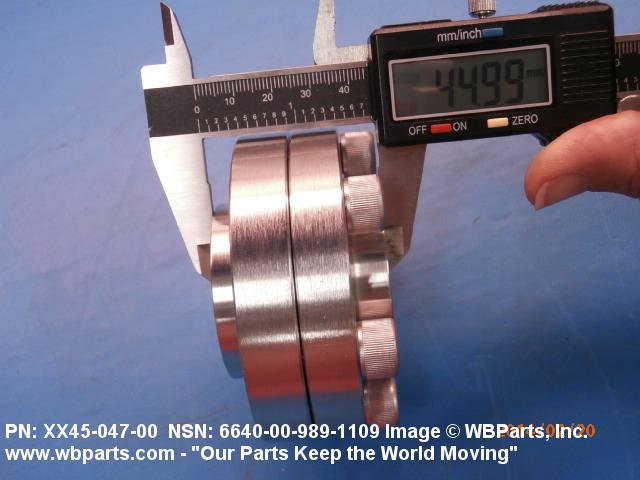

| OVERALL HEIGHT | 44.0 MILLIMETERS NOMINAL |

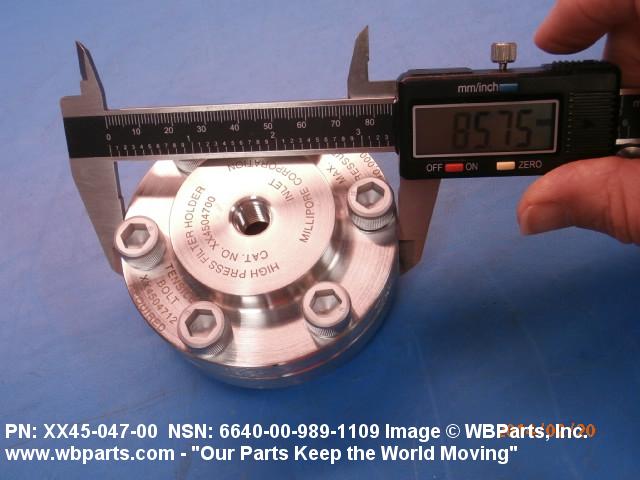

| OVERALL DIAMETER | 86.0 MILLIMETERS NOMINAL |
| GRID MARKINGS | NOT INCLUDED |
| FILTERING AREA | 9.6 SQUARE CENTIMETERS NOMINAL |
| ACCESSORY COMPONENTS AND QUANTITY | VITON O-RINGS; TYPE AP 142 DIA AND TYPE AW 47 MM DIA; PREFILTER (CANNOT BE USED IF BACK PRESSURE SUPPORT SCREEN IS INSTALLED) |

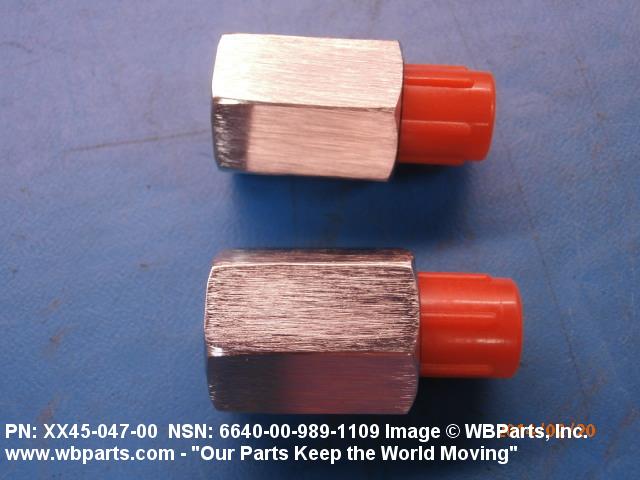

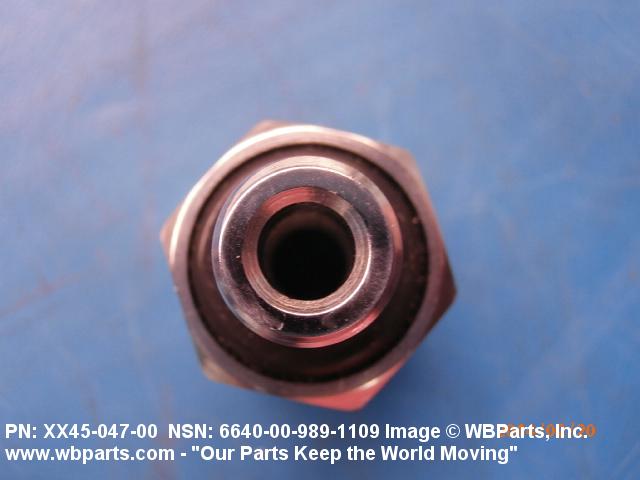

| SPECIAL FEATURES | WITH 7/16 INCH 20 (UNF-3B) FEMALE INLET AND OUTLET; 7/16 IN. 20 (UNF-3B) MALE TO 1/4 IN. NPTF ADAPTER CONNECTORS; FOR FILTERING HIGH PRESSURE GASES OR LIQUIDS FOR REMOVAL OF PARTICULATE CONTAMINANTS OR ANALYSIS OF CONTAMINANTS RETAINED ON FILTER SURFACE |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | STAINLESS FILTER HOLDER |
Restrictions/Controls & Freight Information | NSN 6640-00-989-1109
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-989-1109
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
