NSN 6640-00-899-4832 DDC575, DD-C-575, DD-C-575 TY1SZ3
Product Details | LABORATORY CONDENSER
6640-00-899-4832 A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING.
Part Alternates: DDC575, DD-C-575, DD-C-575 TY1SZ3, DDC575TY1SZ3, 6640-00-899-4832, 00-899-4832, 6640008994832, 008994832
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-899-4832 | 19430 ( CONDENSER, LABORATORY ) |
Drawings & Photos | NSN 6640-00-899-4832
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-899-4832
Technical Data | NSN 6640-00-899-4832
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| LINEAR EXPANSION COEFFICIENT PER DEG CELSIUS | 0.00000335 |
| LINEAR EXPANSION COEFFICIENT TEMP RANGE IN DEG CELSIUS | 0.0 TO 300.0 |

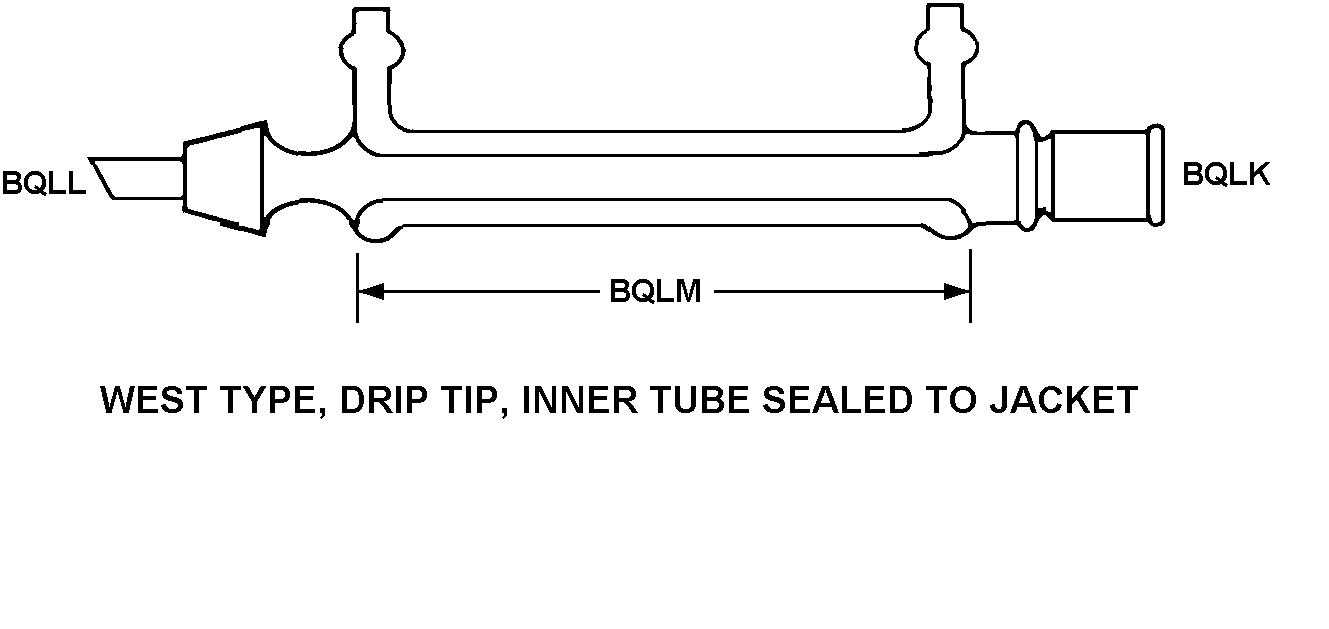

| CONDENSER STYLE DESIGNATOR | D8 WEST TYPE DRIP TIP, INNER TUBE SEALED TO JACKET |
| VAPOR INLET JOINT SIZE | 24/40 STD TAPER VAPOR INLET JOINT SIZE |
| JACKET LENGTH | 400.000 MILLIMETERS NOMINAL |
| CONDENSOR OUTLET JOINT SIZE | 24/40 STD TAPER CONDENSER OUTLET JOINT SIZE |
| DRIP TIP | INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 3 SIZE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DD-C-575 |
Restrictions/Controls & Freight Information | NSN 6640-00-899-4832
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
