NSN 6640-00-889-7083 MILG36805, 11423A, 11-423A
Product Details | LABORATORY LIQUID GRADUATE
6640-00-889-7083 A vessel generally conically shaped which is graduated to measure standardized volumes of liquid.
Part Alternates: MILG36805, 11423A, 11-423A, 3673, 6640-00-889-7083, 00-889-7083, 6640008897083, 008897083
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-889-7083 | 16914 ( GRADUATE, LIQUID, LABORATORY ) |
Drawings & Photos | NSN 6640-00-889-7083
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-889-7083
Related Products | NSN 6640-00-889-7083
Technical Data | NSN 6640-00-889-7083
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYPROPYLENE |

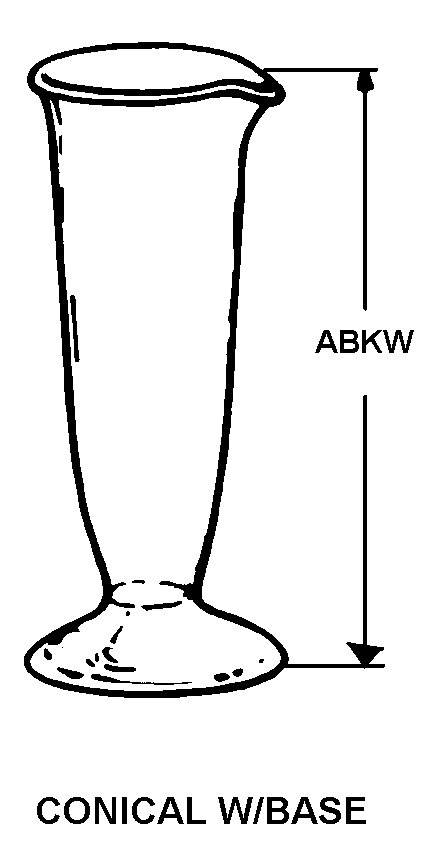

| STYLE DESIGNATOR | G2 CONICAL W/BASE |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| CAPACITY RATING | 125.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE 1ST SCALE TOP TO BOTTOM OUTSIDE 2ND SCALE |
| SCALE GRADUATION UNIT | 0.5 OUNCES, FLUID SINGLE INTERVAL 1ST SCALE 5.0 MILLILITERS SINGLE INTERVAL 2ND SCALE |
| SCALE GRADUATION UNIT RANGE | 1.0 TO 4.0 OUNCES, FLUID SINGLE INTERVAL 1ST SCALE 25.0 TO 125.0 MILLILITERS SINGLE INTERVAL 2ND SCALE |
| SCALE MARKING | FIRST SCALE EVERY GRADUATION NUMBERED,SECOND SCALE EVERY 25 ML NUMBERED |
| GRADUATION MARKING METHOD | MOLDED |
| FEATURES PROVIDED | POUR-OUT |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | OCTAGONAL BASE |
| NONDEFINITIVE SPEC/STD DATA | 1 SIZE |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 144 |
| III UNIT OF ISSUE WEIGHT | 0.26 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 38.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.035 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 5.000 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | GRADUATE LIQUID LABORATORY POLYPROPYLENE 125 ML CAPACITY RATING |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILG36805 |
Restrictions/Controls & Freight Information | NSN 6640-00-889-7083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058240 | RECORDING DEVICES GAUGES/METERS NOI |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-889-7083
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
