NSN 6640-00-782-6007 MILJ36511, 00-782-6007, 007826007
Product Details | PIPET JAR
6640-00-782-6007 An item used for soaking or washing pipets and other laboratory glassware.
Part Alternates: MILJ36511, 6640-00-782-6007, 00-782-6007, 6640007826007, 007826007
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 09 FEB 1966 | 00-782-6007 | 28189 ( JAR, PIPET ) |
Cross Reference | NSN 6640-00-782-6007
Part Number | Cage Code | Manufacturer |
---|---|---|
MILJ36511 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-782-6007
Related Products | NSN 6640-00-782-6007
Technical Data | NSN 6640-00-782-6007

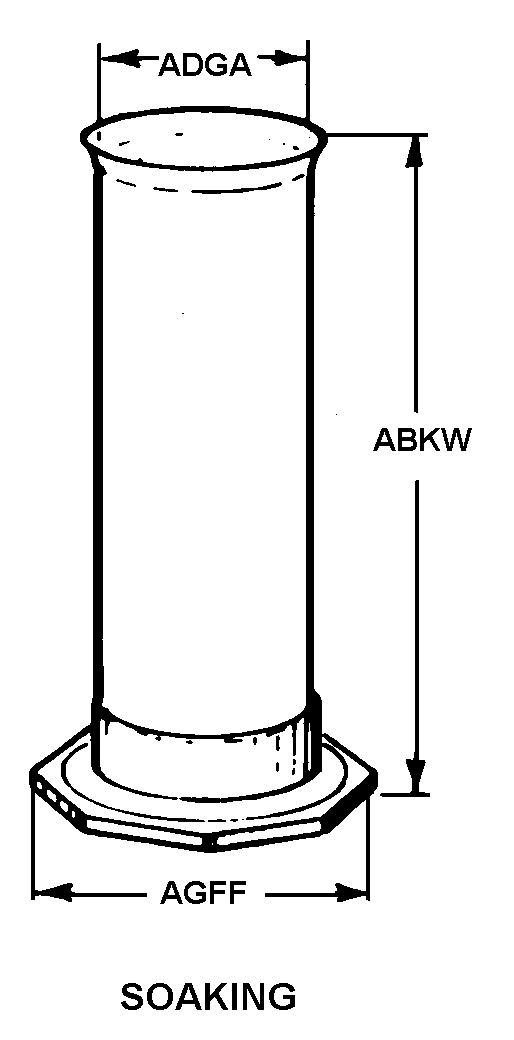

Characteristic | Specifications |
---|---|
MATERIAL | PLASTIC, POLYETHYLENE |
STYLE DESIGNATOR | H10 SOAKING |
OVERALL HEIGHT | 18.000 INCHES NOMINAL |
OVERALL OUTSIDE DIAMETER | 6.812 INCHES NOMINAL |
FLANGE WIDTH | 9.625 INCHES NOMINAL |
PRIMARY CONTAINER TYPE | CARTON |
PRIMARY CONTAINER UNIT QUANTITY | 1 |
TOTAL PRIMARY CONTAINER QUANTITY | 1 |
UNIT PACKAGE TYPE | CARTON |
SPECIAL FEATURES | REMOVABLE POLYETHYLENE FOAM DISC CUSHION INSIDE BOTTOM OF JAR,5/16 IN THK |
NONDEFINITIVE SPEC/STD DATA | A STYLE |
III SUPPLEMENTARY FEATURES | ACCOMMODATES PIPET BASKET,6640-00-447-3625 AND 6640-00-782-6015,WHEN WASHING PIPETS |
III INTERMEDIATE PACKAGE QUANTITY | 1 |
III EXTERIOR CONTAINER QUANTITY | 6 |
III UNIT OF ISSUE WEIGHT | 4.33 POUNDS |
III EXTERIOR CONTAINER WEIGHT | 26.00 POUNDS |
III UNIT OF ISSUE CUBE | 0.967 CUBIC FEET |
III EXTERIOR CONTAINER CUBIC MEASURE | 5.859 CUBIC FEET |
III PART NAME ASSIGNED BY CONTROLLING AGENCY | JAR PIPET PLASTIC POLYETHYLENE H10 SOAKING |
MANUFACTURERS CODE | 81349 |
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILJ36511 |
Restrictions/Controls & Freight Information | NSN 6640-00-782-6007
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | A | Item does not contain precious metal |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 088120 | GLASSWARE LABORATORY |
Less than car load rating | ||
Less than truck load rating | J | 100.2 |
Water commodity Code | 534 | unknown |
Originating Activity Code | KX | Defense Supply Center Philadelphia Philiadelphia, PA 19101 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | M | Medical supplies, equipment, samples records, etc. |
Air Special Handling | Z | No special handling required. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-782-6007
Category | Code | Description |
---|---|---|
Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
Specific Group/Generic Code | 0 | Medical Materiel |
Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DA | Department of the Army |
Service Organization | A | U.S. Army |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Category | Code | Description |
---|---|---|
Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
