Product Details | BRANCHED TUBING CONNECTOR

6640-00-774-5433 A metallic/nonmetallic item of either a T or Y shape used in making three way connections with metallic/nonmetallic tubing.20347300051Hose, Pipe, Tube, Lubrication, and Railing Fittings65150057Medical and Surgical Instruments, Equipment, and Supplies66400033Laboratory Equipment and Supplies

Part Alternates: 6152, 6640-00-774-5433, 00-774-5433, 6640007745433, 007745433

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1960 00-774-5433

Drawings & Photos | NSN 6640-00-774-5433


Cross Reference | NSN 6640-00-774-5433

Part Number Cage Code Manufacturer
6152 05178 NALGE CO DIV OF SYBRON CORP

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-774-5433

Technical Data | NSN 6640-00-774-5433

Characteristic Specifications
MATERIAL PLASTIC

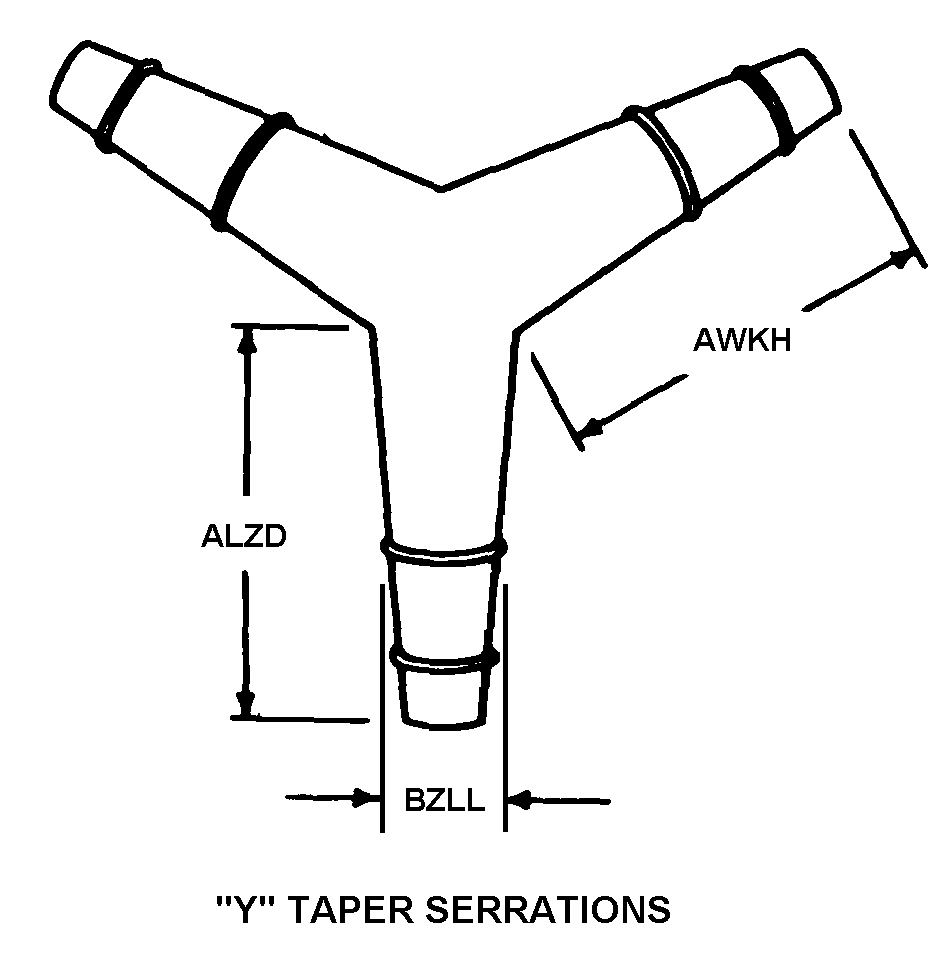

STYLE DESIGNATOR A15 Y TAPER SERRATIONS
STEM LENGTH ANY ACCEPTABLE
ARM LENGTH ANY ACCEPTABLE
TUBING INSIDE DIAMETER ACCOMMODATED 0.438 INCHES NOMINAL
UNIT PACKAGE TYPE BOX
SPECIAL FEATURES A. WITH STANDS AUTOCLAVING

Restrictions/Controls & Freight Information | NSN 6640-00-774-5433

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
