NSN 6640-00-753-2056 NNNB175, 13930200, 13930-200
Product Details | LABORATORY BEAKER
6640-00-753-2056 An item used in the handling of chemicals in laboratory procedures. It may have limited graduations and a handle. For items graduated to closely determine specific liquid amounts, see GRADUATE, LIQUID, LABORATORY.
Part Alternates: NNNB175, 13930200, 13930-200, 6640-00-753-2056, 00-753-2056, 6640007532056, 007532056
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1962 | 00-753-2056 | 12858 ( BEAKER, LABORATORY ) |
Drawings & Photos | NSN 6640-00-753-2056
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-753-2056
Technical Data | NSN 6640-00-753-2056
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

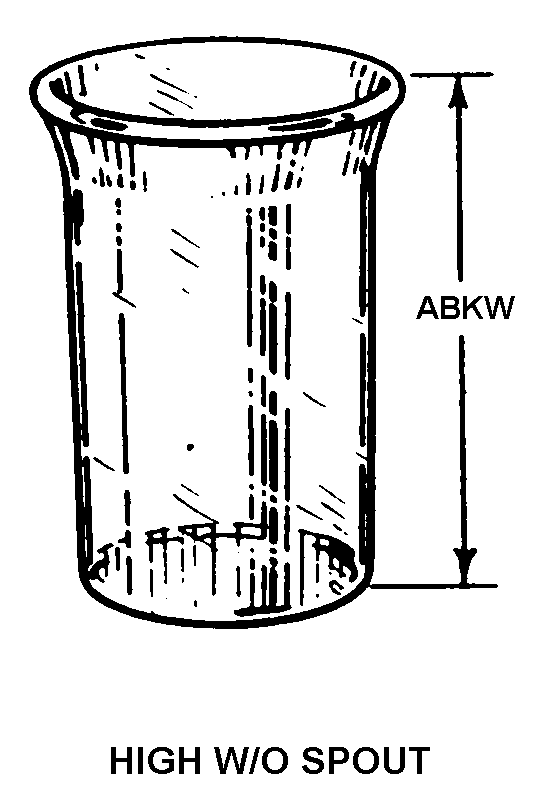

| STYLE DESIGNATOR | B4 HIGH W/O SPOUT |
| OVERALL HEIGHT | 95.00 MILLIMETERS MINIMUM AND 105.00 MILLIMETERS MAXIMUM |
| CAPACITY RATING | 200.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| SCALE READING DIRECTION | BOTTOM TO TOP OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 25.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 25.0 TO 150.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| GRADUATION MARKING METHOD | ETCHED |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NNNB175 |
Restrictions/Controls & Freight Information | NSN 6640-00-753-2056
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
