Product Details | SEROLOGICAL PIPET

6640-00-719-7216 A laboratory instrument, usually graduated from the tip. May be tubular and may measure, contain and/or deliver liquids in serology.

Part Alternates: NNNP375, 6640-00-719-7216, 00-719-7216, 6640007197216, 007197216

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 00-719-7216

Drawings & Photos | NSN 6640-00-719-7216


Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-719-7216

Technical Data | NSN 6640-00-719-7216

Characteristic Specifications
MATERIAL GLASS, BOROSILICATE

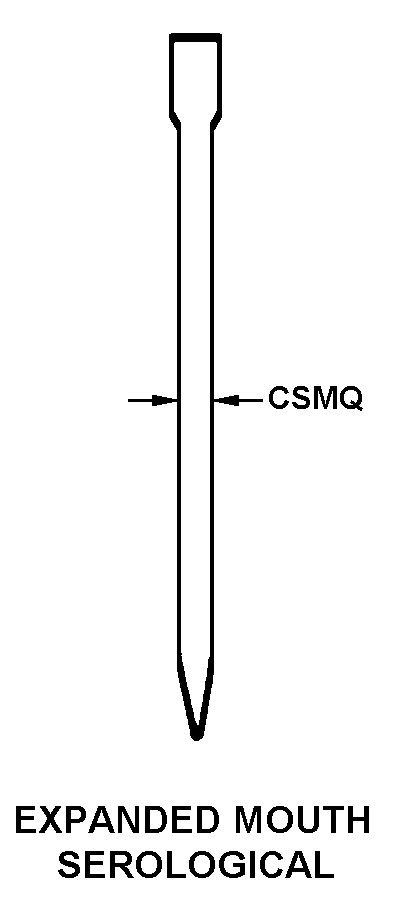

STYLE DESIGNATOR M22 EXPANDED MOUTH SEROLOGICAL
SCALE PORTION OUTSIDE DIAMETER 5.50 MILLIMETERS NOMINAL
CAPACITY RATING 0.100 MILLILITERS NOMINAL
CALIBRATION FUNCTION TO DELIVER W/VOLUME ADJUSTED FOR BLOWING OUT LAST DROP
SCALE READING DIRECTION TOP TO BOTTOM OUTSIDE SINGLE SCALE
SCALE GRADUATION UNIT 0.01 MILLILITERS SINGLE INTERVAL SINGLE SCALE
SCALE GRADUATION UNIT RANGE 0.0 TO 0.1 MILLILITERS SINGLE INTERVAL SINGLE SCALE
SCALE MARKING EVERY TENTH GRADUATION NUMBERED
GRADUATION MARKING METHOD ETCHED OR FIRED ENAMEL OR FIRED STAIN
PRIMARY CONTAINER TYPE CARTON
PRIMARY CONTAINER UNIT QUANTITY 1
TOTAL PRIMARY CONTAINER QUANTITY 1
UNIT PACKAGE TYPE CARTON
SPECIAL FEATURES TEMPERED TIP; 1 WHITE BAND; COTTON MOUTH
NONDEFINITIVE SPEC/STD DATA II STYLE
III INTERMEDIATE PACKAGE QUANTITY 18
III EXTERIOR CONTAINER QUANTITY 432
III UNIT OF ISSUE WEIGHT 0.06 POUNDS
III EXTERIOR CONTAINER WEIGHT 48.00 POUNDS
III UNIT OF ISSUE CUBE 0.003 CUBIC FEET
III EXTERIOR CONTAINER CUBIC MEASURE 3.412 CUBIC FEET
III PART NAME ASSIGNED BY CONTROLLING AGENCY PIPET SEROLOGICAL BOROSILICATE GLASS COTTON MOUTH 0.1 ML CAP
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE NNNP375

Restrictions/Controls & Freight Information | NSN 6640-00-719-7216

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Category Code Description
No Freight Information
