NSN 6640-00-568-4467 8022160, 00-568-4467, 005684467
Product Details | SEPARATORY FUNNEL
6640-00-568-4467 A vessel, with a stopcock at one end and usually a stopper at the other, used for sampling, mixing and separating liquids.
Part Alternates: 8022160, 6640-00-568-4467, 00-568-4467, 6640005684467, 005684467
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-568-4467 | 19425 ( FUNNEL, SEPARATORY ) |
Drawings & Photos | NSN 6640-00-568-4467
Cross Reference | NSN 6640-00-568-4467
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8022160 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-568-4467
Technical Data | NSN 6640-00-568-4467
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |

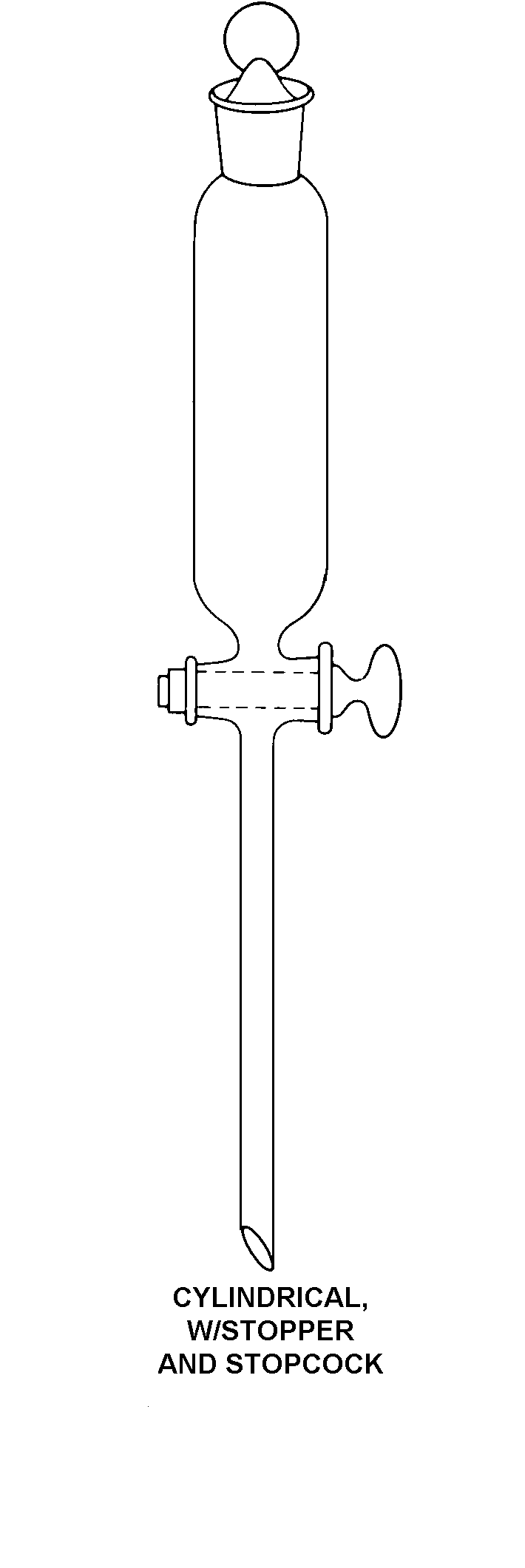

| STYLE DESIGNATOR | A1 CYLINDRICAL, WITH STOPPER AND STOPCOCK |
| LOAD CAPACITY | 125.0 MILLILITERS |
| TOP SIZE | 40 MM ID TOP |
| STOPPER | NOT INCLUDED |
| SCALE RANGE | 0.0 TO 4.0 CUBIC INCHES |
| SCALE INTERVAL | 1/4 CU IN. INTERVALS FROM 0 TO 4 CU IN. |
| SCALE GRADUATION TYPE | REGULAR-SINGLE |
| SCALE INTERVAL MARKING LOCATION | EVERY FOURTH GRADUATION |
| SCALE GRADUATION PURPOSE | TO DELIVER AND TO CONTAIN |
| OVERALL LENGTH | 9.875 MILLIMETERS NOMINAL |
| STEM LENGTH | 175.0 MILLIMETERS NOMINAL |
| SPECIAL FEATURES | 2-7/8 IN. LG OF STEM BENT AT 90 DEG ANGLE TO CENTER LINE OF FUNNEL |
| MANUFACTURERS CODE | 18876 |
| DESIGN CONTROL REFERENCE | 8022160 |
Restrictions/Controls & Freight Information | NSN 6640-00-568-4467
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
