NSN 6640-00-492-5648 430, 00-492-5648, 004925648
Product Details | EVAPORATING DISH
6640-00-492-5648 A vessel having a flat or rounded bottom with or without pour-outs, designed for determining total solids and residue of substances by evaporation at various temperatures.
Part Alternates: 430, 6640-00-492-5648, 00-492-5648, 6640004925648, 004925648
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 FEB 1970 | 00-492-5648 | 12800 ( DISH, EVAPORATING ) |

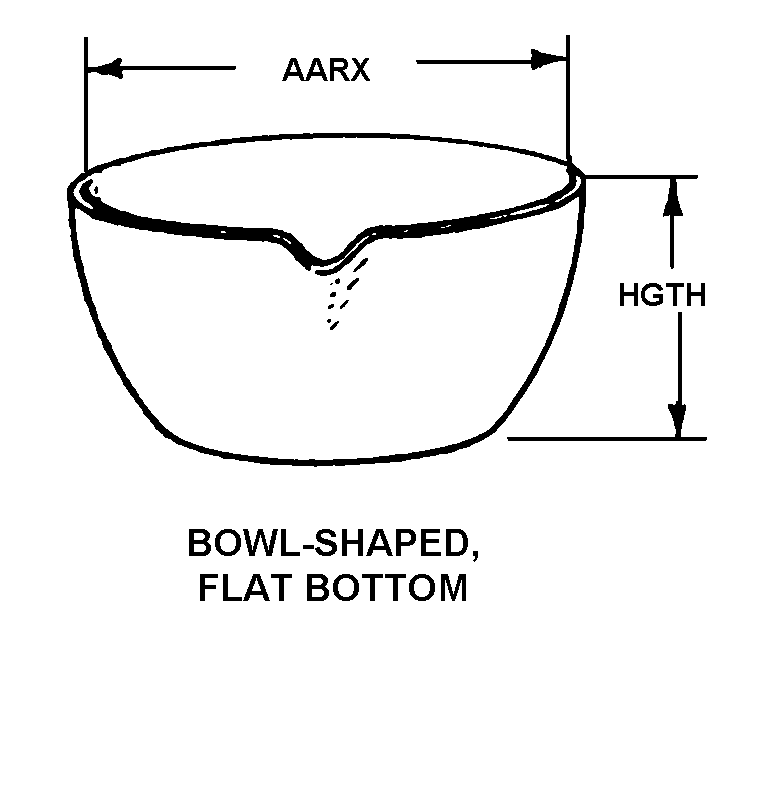

Drawings & Photos | NSN 6640-00-492-5648
Demand History | NSN 6640-00-492-5648
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 430 | 2016-02-49 | 2 | Singapore |
Cross Reference | NSN 6640-00-492-5648
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 430 | 14566 | COORSTEK, INC. DBA COORSTEK AMAZING SOLUTIONS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-492-5648
Technical Data | NSN 6640-00-492-5648
| Characteristic | Specifications |
|---|---|
| MATERIAL | PORCELAIN |
| STYLE DESIGNATOR | D25 BOWL-SHAPED, FLAT BOTTOM |
| INSIDE DIAMETER | 185.00 MILLIMETERS NOMINAL |
| HEIGHT | 54.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 765.000 MILLILITERS NOMINAL |
| UNIT PACKAGE TYPE | BOX |
| SPECIAL FEATURES | A. GLAZED INSIDE W/OUTSIDE GLAZED PARTLY BELOW RIM |
Restrictions/Controls & Freight Information | NSN 6640-00-492-5648
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
