Product Details | LABORATORY CYLINDRICAL JAR

6640-00-492-5592 A straight-sided glass vessel, without neck or shoulder, having flat bottom and ground rim, and usually without a cover. Its diameter is approximately equal to its height. It is used in laboratory procedures. Excludes JAR, BATTERY; JAR, MUSEUM; and CYLINDER, UNGRADUATED, LABORATORY. Do not use if a more specific name is available.

Part Alternates: S43725E, S43725-E, 15200004, 15200-004, 6640-00-492-5592, 00-492-5592, 6640004925592, 004925592

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 11 FEB 1970 00-492-5592

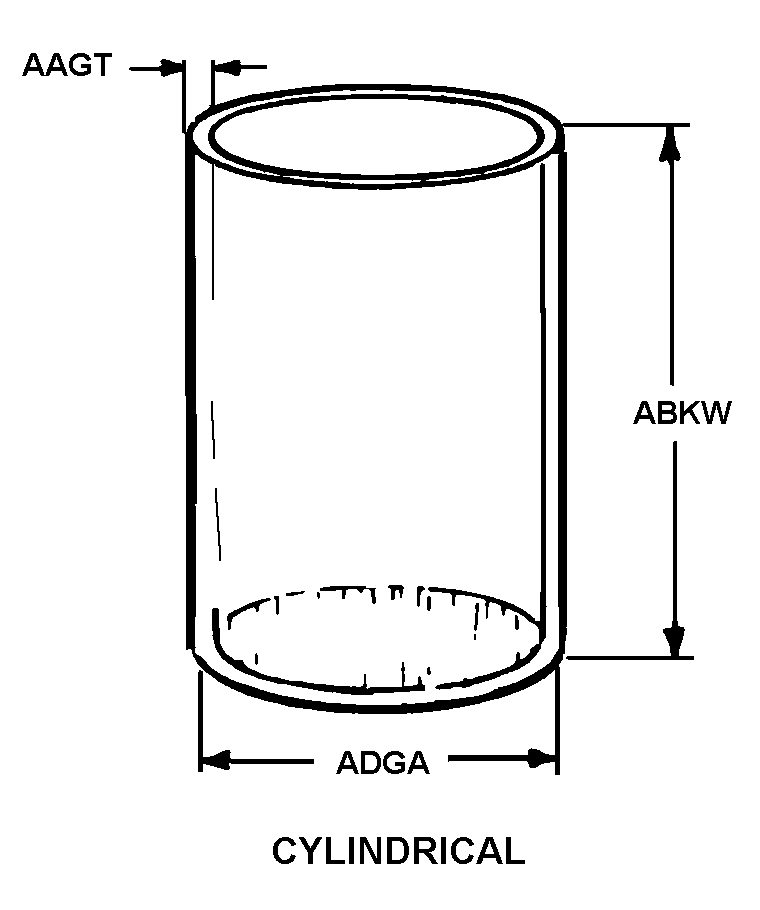

Drawings & Photos | NSN 6640-00-492-5592


Cross Reference | NSN 6640-00-492-5592

Part Number Cage Code Manufacturer
15200-004 11273 CENTRAL SCIENTIFIC CO EDUCATIONAL
S43725-E 64484 SARGENT-WELCH SCIENTIFIC CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-492-5592

Technical Data | NSN 6640-00-492-5592

Characteristic Specifications
MATERIAL GLASS, FED DD-G-541, TYPE 2
STYLE DESIGNATOR H6 CYLINDRICAL
WALL THICKNESS 0.188 INCHES NOMINAL
OVERALL HEIGHT 8.000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER 6.000 INCHES NOMINAL
CAPACITY RATING 1.000 GALLONS NOMINAL
UNIT PACKAGE TYPE BOX
SPECIAL FEATURES A. W/GROUND RIM OR EDGE

Restrictions/Controls & Freight Information | NSN 6640-00-492-5592

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information
