Product Details | LABORATORY FILTERING FUNNEL

6640-00-426-0650 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.

Part Alternates: MS360924, MS36092-4, DDF776CLASS1, DDG541TYPE1CLASSA, 6640-00-426-0650, 00-426-0650, 6640004260650, 004260650

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-426-0650

Drawings & Photos | NSN 6640-00-426-0650


Cross Reference | NSN 6640-00-426-0650

Part Number Cage Code Manufacturer
DDF776CLASS1 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
DDG541TYPE1CLASSA 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS36092-4 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-426-0650

Technical Data | NSN 6640-00-426-0650

Characteristic Specifications
DESIGN DESIGNATION BUECHNER
MATERIAL GLASS, FED DD-G-541, TYPE 1, CLASS A

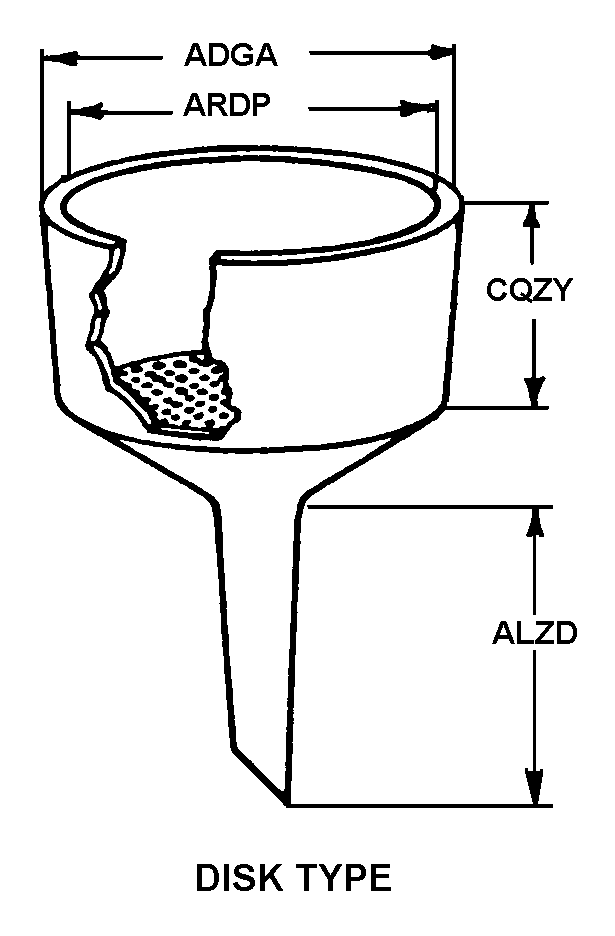

STYLE DESIGNATOR F5 DISK TYPE
OVERALL OUTSIDE DIAMETER 64.00 MILLIMETERS NOMINAL
STEM LENGTH 75.00 MILLIMETERS NOMINAL
DISK DIAMETER 60.00 MILLIMETERS NOMINAL
DISTANCE FROM DISK TO TOP ANY ACCEPTABLE
CAPACITY RATING 150.000 MILLILITERS NOMINAL
UNIT PACKAGE TYPE CARTON
NONDEFINITIVE SPEC/STD DATA I CLASS
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE DDF776CLASS1
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS36092-4

Restrictions/Controls & Freight Information | NSN 6640-00-426-0650

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
No Freight Information

Management | NSN 6640-00-426-0650

Category Code Description
Cognizance Codes9LNavy-owned stocks of defense medical material
Naval Inventory Control Point, Mechanicsburg
Source of SupplyS9MDefense Supply Center Philadelphia
Director of Medical Materiel
Philadelphia, PA 19145
AgencyDNDepartment of the Navy
Service OrganizationNU.S. Navy
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
4
EA : Each
