NSN 6640-00-420-9150 MS362152, MS36215-2, DDD205
Product Details | LABORATORY DESICCATOR
6640-00-420-9150 A vessel with an airtight, sealing cover used to dry and store specimens in a moisture-free atmosphere. The cover may have an evacuation device in order to create a vacuum. Excludes DRYING APPARATUS, VACUUM and MICRODESICCATOR.
Part Alternates: MS362152, MS36215-2, DDD205, DD-D-205, DD-D-205 TY1GRASZ2, DDD205TY1GRASZ2, 6640-00-420-9150, 00-420-9150, 6640004209150, 004209150
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-420-9150 | 41971 ( DESICCATOR, LABORATORY ) |

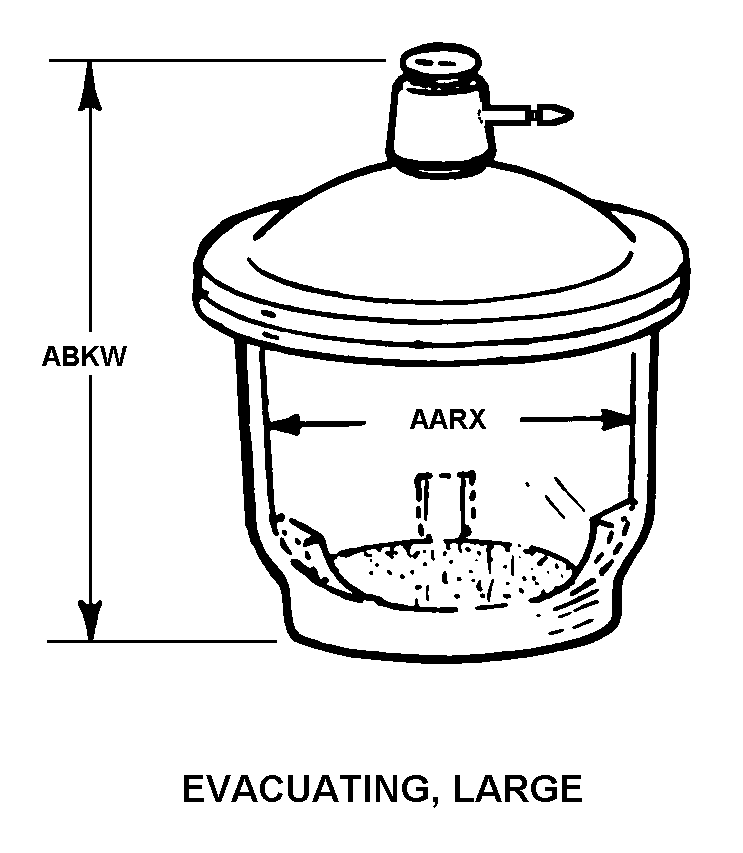

Drawings & Photos | NSN 6640-00-420-9150
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-420-9150
Technical Data | NSN 6640-00-420-9150
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | D2 EVACUATING, LARGE |
| INSIDE DIAMETER | 200.00 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 315.00 MILLIMETERS NOMINAL |
| CLOSURE TYPE ACCOMMODATED AND SIZE DESIGNATION | 55/38 STANDARD TAPER STOPPER JOINT |
| PRIMARY CONTAINER TYPE | CASE |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| NONDEFINITIVE SPEC/STD DATA | I TYPE AND A GRADE AND 2 SIZE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | DD-D-205 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS36215-2 |
Restrictions/Controls & Freight Information | NSN 6640-00-420-9150
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
