NSN 6640-00-419-9000 MS359436, MS35943-6, NNNC940
Product Details | LABORATORY GRADUATED CYLINDER
6640-00-419-9000 A cylindrical vessel with a graduated height generally five times the inside diameter. The graduations are not less than 1 mm apart. If without a base, the vessel may be supplied with a holder which incorporates a base. Excludes GRADUATE, LIQUID, LABORATORY.
Part Alternates: MS359436, MS35943-6, NNNC940, NNN-C-940, 085524B, 08-552-4B, 302450, 3024-50, 8552, 8-552, 8552R, 8-552R, 6640-00-419-9000, 00-419-9000, 6640004199000, 004199000
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-419-9000 | 16916 ( CYLINDER, GRADUATED, LABORATORY ) |

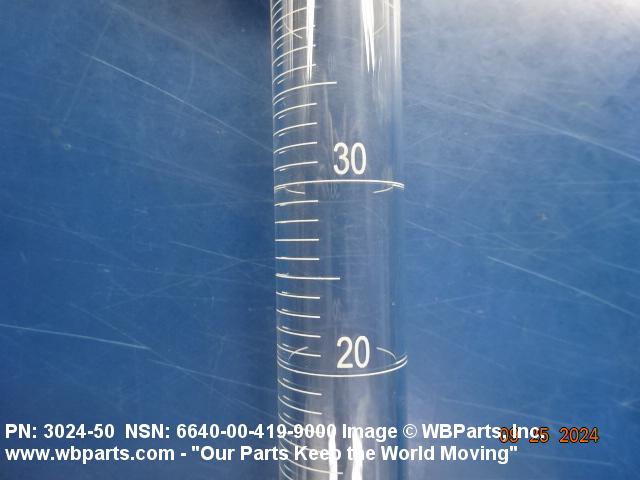

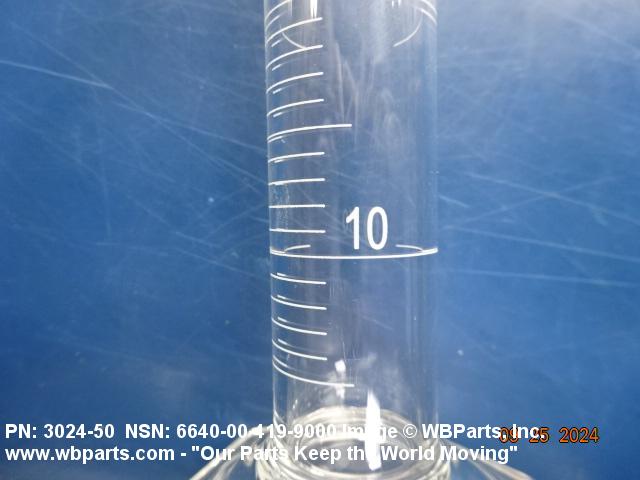

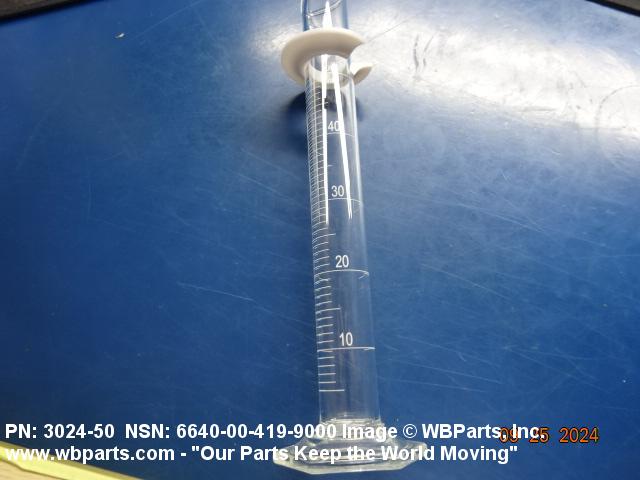

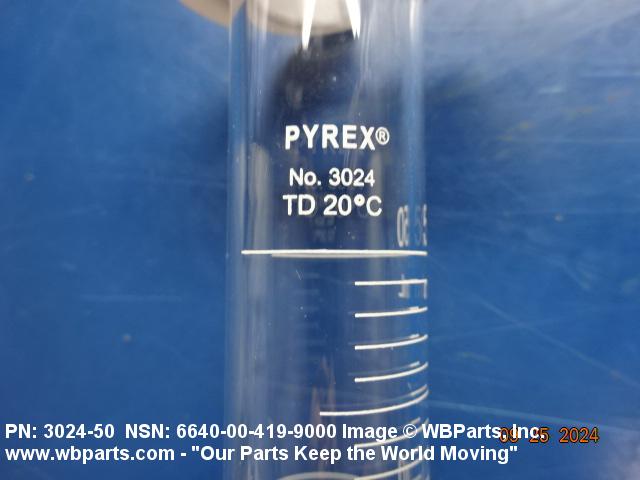

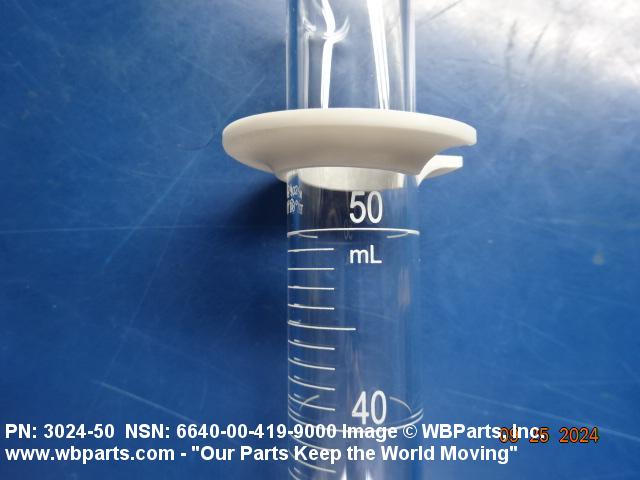

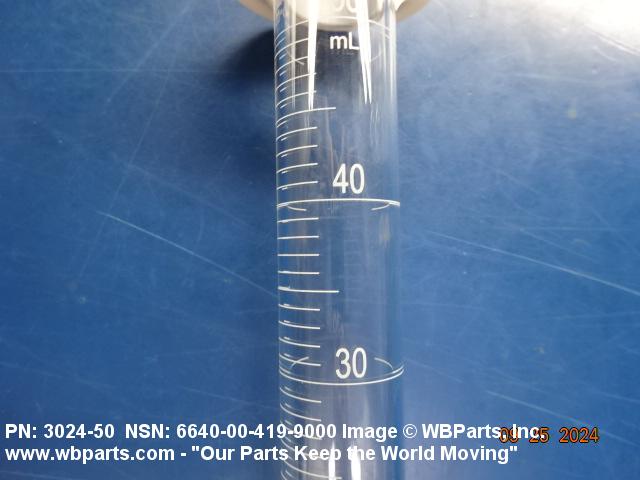

Drawings & Photos | NSN 6640-00-419-9000
Demand History | NSN 6640-00-419-9000
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6640-00-419-9000 | 2024-09-257 | 2 | Greece |
| 6640-00-419-9000 | 2024-07-206 | 2 | Greece |
| 08-552-4B | 2022-07-191 | 1 | DIBBS |
| 08-552-4B | 2020-03-86 | 1 | DIBBS |
| 08-552-4B | 2019-08-213 | 12 | DIBBS |
| 08-552-4B | 2019-07-191 | 12 | DIBBS |
| 08-552-4B | 2019-06-169 | 1 | DIBBS |
| 08-552-4B | 2019-06-156 | 10 | DIBBS |
| 6640-00-419-9000 | 2014-06-166 | 2 | DIBBS |
| 6640-00-419-9000 | 2014-02-57 | 7 | DIBBS |
| 6640-00-419-9000 | 2013-08-213 | 7 | DIBBS |
| MS359436 | 2012-05-149 | 1 | Thailand |
Cross Reference | NSN 6640-00-419-9000
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-552-4B | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 3024-50 | 14674 | CORNING GLASS WORKS |
| 8-552 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 8-552R | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| MS35943-6 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NNN-C-940 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-419-9000
Related Products | NSN 6640-00-419-9000
Technical Data | NSN 6640-00-419-9000
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| STYLE DESIGNATOR | C18 POUR-OUT |
| OVERALL HEIGHT | 225.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 50.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 1.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.0 TO 50.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION NUMBERED |
| GRADUATION MARKING METHOD | ETCHED |
| FEATURES PROVIDED | POUR-OUT |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | W/PLASTIC BUMPER |
| NONDEFINITIVE SPEC/STD DATA | I STYLE AND 6 SIZE |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 144 |
| III UNIT OF ISSUE WEIGHT | 0.35 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 56.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.035 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 5.80 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CYLINDER GRADUATED LABORATORY 50 ML CAPACITY GLASS |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35943-6 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NNN-C-940 |
Restrictions/Controls & Freight Information | NSN 6640-00-419-9000
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-419-9000
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
B EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 3 | Engineer Materiel19; 20; 22; 24; 30; 32; 34 except 3470; 36; 37; 38; 41; 42 except 4210; 43; 45; 46; 47; 48; 4930; 54 except 5445; 56; 62; 66 except 6625, 6650, 6660, 6665; 67; 68 |
| Echelon Management Code | 4 | ICP/DSSCs Marine Corps/Defense/Integrated Materiel Manager (IMM) items which have been decontrolled by the inventory managers for local procurement. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
B EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
B EA : Each |
