NSN 6640-00-419-3050 MILC3659, 00-419-3050, 004193050
Product Details | LABORATORY FILTERING CRUCIBLE
6640-00-419-3050 A vessel with a perforated base or disk, designed to contain substances that are heated or melted at high temperatures. It is used to obtain fine precipitates by filtration and drying.
Part Alternates: MILC3659, 6640-00-419-3050, 00-419-3050, 6640004193050, 004193050
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-419-3050 | 16788 ( CRUCIBLE, FILTERING, LABORATORY ) |

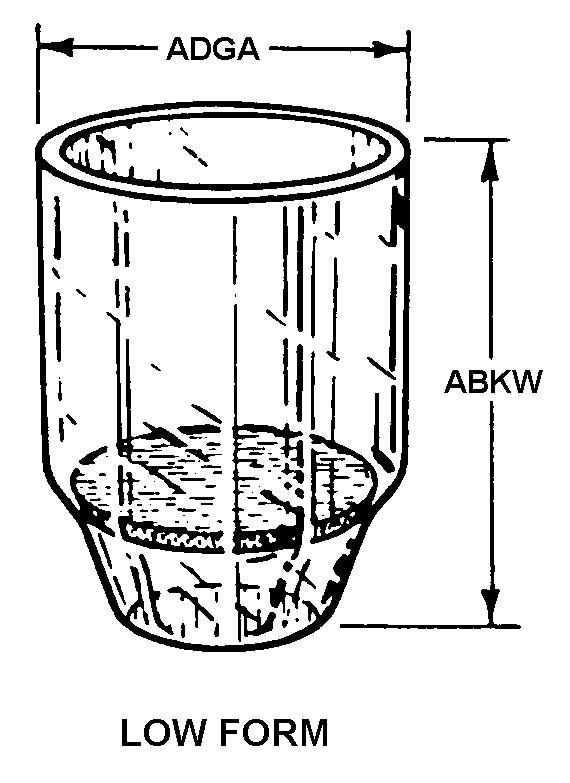

Drawings & Photos | NSN 6640-00-419-3050
Cross Reference | NSN 6640-00-419-3050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MILC3659 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-419-3050
Related Products | NSN 6640-00-419-3050
Technical Data | NSN 6640-00-419-3050
| Characteristic | Specifications |
|---|---|
| DESIGN DESIGNATION | GOOCH |
| MATERIAL | GLASS, BOROSILICATE |
| STYLE DESIGNATOR | C9 LOW FORM |
| OVERALL HEIGHT | 50.00 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 40.00 MILLIMETERS NOMINAL |
| FILTERING DISK TYPE AND SIZE | 5.0 MICRONS FIXED POROUS |
| CAPACITY RATING | 30.000 MILLILITERS NOMINAL |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | FRITTED; FINE POROSITY; W/BEADED RIM |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 576 |
| III UNIT OF ISSUE WEIGHT | 0.13 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 35.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.018 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 1.44 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CRUCIBLE FILTERING LABORATORY GOOCH LOW FORM FRITTED 30 ML |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC3659 |
Restrictions/Controls & Freight Information | NSN 6640-00-419-3050
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 054890 | CRUCIBLES NOI IN BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-419-3050
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
