NSN 6640-00-418-5500 MS362621, MS36262-1, 00-418-5500
Product Details | LABORATORY CONDENSER
6640-00-418-5500 A device, usually cylindrical in shape, composed of an internal tube surrounded by an outer jacket. The tube may be straight, coiled, repetitiously bulbous or indented and must have an inlet and outlet for the condensing vapors. The jacket must have an inlet and outlet, in the form of male side tubulations, for the regular flow of the coolant. Used for condensing vapors to a liquid state in refluxing, extracting and distilling operations. Excludes DISTILLING COLUMN, FRACTIONATING.
Part Alternates: MS362621, MS36262-1, 6640-00-418-5500, 00-418-5500, 6640004185500, 004185500
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-418-5500 | 19430 ( CONDENSER, LABORATORY ) |
Drawings & Photos | NSN 6640-00-418-5500
Cross Reference | NSN 6640-00-418-5500
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS36262-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-418-5500
Technical Data | NSN 6640-00-418-5500
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |
| LINEAR EXPANSION COEFFICIENT PER DEG CELSIUS | 0.0000033 |
| LINEAR EXPANSION COEFFICIENT TEMP RANGE IN DEG CELSIUS | 0.0 TO 300.0 |

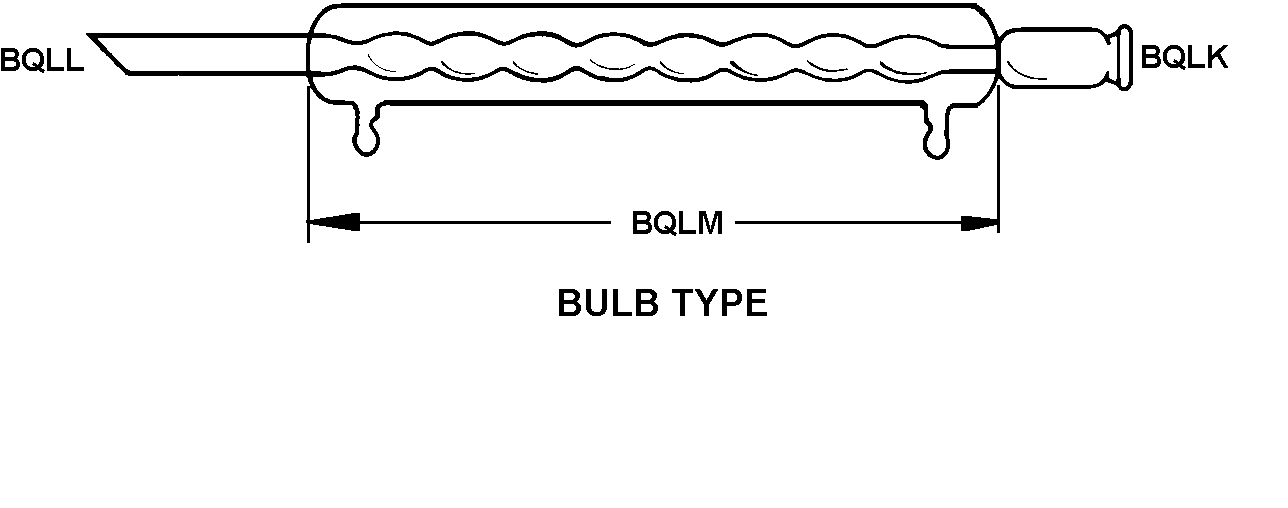

| CONDENSER STYLE DESIGNATOR | D9 BULB TYPE |
| VAPOR INLET JOINT SIZE | NO. 3 RUBBER STOPPER VAPOR INLET JOINT SIZE |
| JACKET LENGTH | 400.000 MILLIMETERS NOMINAL |
| CONDENSOR OUTLET JOINT SIZE | 13 MM OD CONDENSER OUTLET JOINT SIZE |
| DRIP TIP | INCLUDED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS36262-1 |
Restrictions/Controls & Freight Information | NSN 6640-00-418-5500
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6640-00-418-5500
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
