NSN 6640-00-414-1700 NNNT780, 00-414-1700, 004141700
Product Details | CENTRIFUGE TUBE
6640-00-414-1700 A vessel designed for use with a laboratory centrifuge. It may be graduated.
Part Alternates: NNNT780, 6640-00-414-1700, 00-414-1700, 6640004141700, 004141700
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-414-1700 | 18777 ( TUBE, CENTRIFUGE ) |
Drawings & Photos | NSN 6640-00-414-1700
Cross Reference | NSN 6640-00-414-1700
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NNNT780 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-414-1700
Related Products | NSN 6640-00-414-1700
Technical Data | NSN 6640-00-414-1700
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

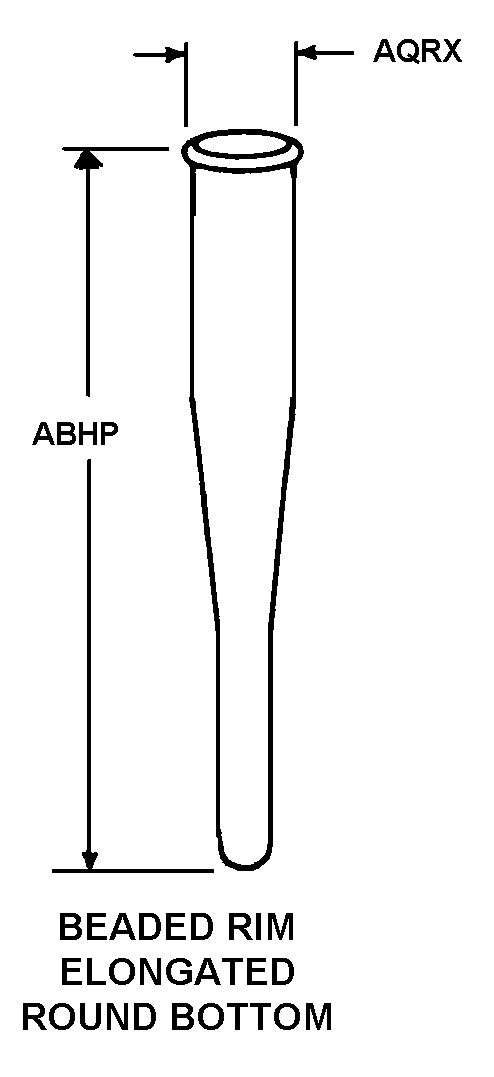

| STYLE DESIGNATOR | K7 BEADED RIM ELONGATED ROUND BOTTOM |
| OVERALL LENGTH | 118.00 MILLIMETERS NOMINAL |
| TUBING OUTSIDE DIAMETER | 17.25 MILLIMETERS NOMINAL |
| CAPACITY RATING | 6.500 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| SCALE READING DIRECTION | BOTTOM TO TOP OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 0.1 MICROLITERS 1ST INTERVAL SINGLE SCALE 0.1 MILLILITERS 2ND INTERVAL SINGLE SCALE 0.5 MILLILITERS 3RD INTERVAL SINGLE SCALE 1.0 MILLILITERS 4TH INTERVAL SINGLE SCALE 1.5 MILLILITERS 5TH INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.1 TO 4.0 MICROLITERS 1ST INTERVAL SINGLE SCALE 0.4 TO 1.0 MILLILITERS 2ND INTERVAL SINGLE SCALE 1.0 TO 4.0 MILLILITERS 3RD INTERVAL SINGLE SCALE 4.0 TO 5.0 MILLILITERS 4TH INTERVAL SINGLE SCALE 5.0 TO 6.5 MILLILITERS 5TH INTERVAL SINGLE SCALE |
| SCALE MARKING | 6.5! 5.0! 4.0! 3.0! 2.0! 1.0! 0.4! 0.3! 0.2! 0.1 |
| GRADUATION MARKING METHOD | ENGRAVED OR FIRED ENAMEL |
| PRIMARY CONTAINER TYPE | BOX |
| UNIT PACKAGE TYPE | CARTON |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| III INTERMEDIATE PACKAGE QUANTITY | 12 |
| III EXTERIOR CONTAINER QUANTITY | 576 |
| III UNIT OF ISSUE WEIGHT | 0.03 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 40.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.002 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 3.80 CUBIC FEET |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NNNT780 |
Restrictions/Controls & Freight Information | NSN 6640-00-414-1700
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-414-1700
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
