NSN 6640-00-410-1000 MS359761, MS35976-1, NNNB789
Product Details | LABORATORY BURET
6640-00-410-1000 A graduated tube, with a flow regulator, for delivering and/or regulating measured quantities of liquids or for measuring the liquids or gases received or discharged.20266300029Chemical Analysis Instruments66400033Laboratory Equipment and Supplies
Part Alternates: MS359761, MS35976-1, NNNB789, 6640-00-410-1000, 00-410-1000, 6640004101000, 004101000
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-410-1000 | 33386 ( BURET, LABORATORY ) |
Drawings & Photos | NSN 6640-00-410-1000
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-410-1000
Related Products | NSN 6640-00-410-1000
Technical Data | NSN 6640-00-410-1000
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A OR GLASS, FED DD-G-541, TYPE 2 |

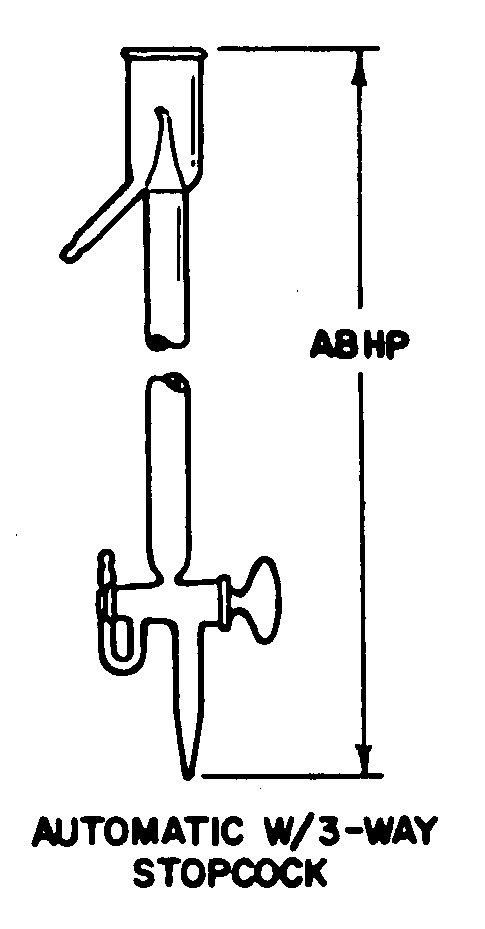

| STYLE DESIGNATOR | L8 AUTOMATIC W/3-WAY STOPCOCK |
| OVERALL LENGTH | ANY ACCEPTABLE |
| CAPACITY RATING | 50.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 0.1 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 1.0 TO 50.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION NUMBERED |
| GRADUATION MARKING METHOD | ETCHED OR FIRED STAIN |
| ACCURACY CERTIFIER | NATIONAL BUREAU OF STANDARDS |
| PRIMARY CONTAINER TYPE | BOX |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| SPECIAL FEATURES | WITH INLET TUBE AND OVERFLOW CUP |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE OR 2 TYPE AND 3 STYLE AND B CLASS AND 6 SIZE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY MATERIAL SPECIFICATION/STANDARD |
| III INTERMEDIATE PACKAGE QUANTITY | 6 |
| III EXTERIOR CONTAINER QUANTITY | 24 |
| III UNIT OF ISSUE WEIGHT | 1.92 POUNDS |
| III EXTERIOR CONTAINER WEIGHT | 105.00 POUNDS |
| III UNIT OF ISSUE CUBE | 0.400 CUBIC FEET |
| III EXTERIOR CONTAINER CUBIC MEASURE | 13.500 CUBIC FEET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | BURET LABORATORY AUTOMATIC 50 ML CAPACITY GLASS WITH INLET TUBE |
| MANUFACTURERS CODE | 96906 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35976-1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NNNB789 |
Restrictions/Controls & Freight Information | NSN 6640-00-410-1000
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-410-1000
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 03 | Not-Potency-Dated |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
