NSN 6640-00-401-7797 S469310E, S4693-10E, 2276L
Product Details | LABORATORY LIQUID GRADUATE
6640-00-401-7797 A vessel generally conically shaped which is graduated to measure standardized volumes of liquid.
Part Alternates: S469310E, S4693-10E, 2276L, 6640-00-401-7797, 00-401-7797, 6640004017797, 004017797
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 JAN 1972 | 00-401-7797 | 16914 ( GRADUATE, LIQUID, LABORATORY ) |

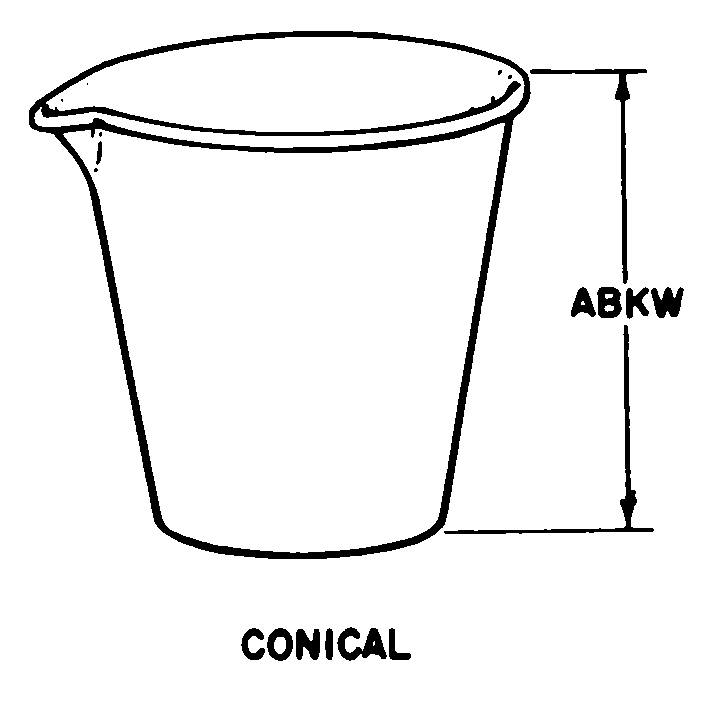

Drawings & Photos | NSN 6640-00-401-7797
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-401-7797
Related Products | NSN 6640-00-401-7797
Technical Data | NSN 6640-00-401-7797
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYPROPYLENE |
| STYLE DESIGNATOR | G1 CONICAL |
| OVERALL HEIGHT | ANY ACCEPTABLE |
| CAPACITY RATING | 250.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 10.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.0 TO 250.0 MILLILITERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION |
| GRADUATION MARKING METHOD | MOLDED |
| FEATURES PROVIDED | POUR-OUT |
| PRIMARY CONTAINER TYPE | BAG |
| PRIMARY CONTAINER UNIT QUANTITY | 100 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| SPECIAL FEATURES | TRIANGULAR FLANGE AT TOP FORMING 3 POUR-OUT SPOUTS,AUTOCLAVABLE |
Restrictions/Controls & Freight Information | NSN 6640-00-401-7797
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 014500 | APPARATUS CHEMICAL LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-401-7797
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | I | DIRECT ORDERING FROM A CENTRAL CONTRACT/SCHEDULE # (NON-STOCKED ITEMS) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/service supply policy. The item is covered by a centrally issued contractual document or by any multiple-award Federal Supply Schedule, which permits using activities to place orders directly on vendors for direct delivery to the user. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
