NSN 6640-00-290-6842 MS359612, MS35961-2, NNND340
Product Details | EVAPORATING DISH
6640-00-290-6842 A vessel having a flat or rounded bottom with or without pour-outs, designed for determining total solids and residue of substances by evaporation at various temperatures.
Part Alternates: MS359612, MS35961-2, NNND340, NNN-D-340, JANT473, 8690, 8-690, 08690B, 08-690B , 208690B, 208-690B, 29120009, 29-1200-09, 3820E25, 3820-E25, 60197, 6640-00-290-6842, 00-290-6842, 6640002906842, 002906842
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-290-6842 | 12800 ( DISH, EVAPORATING ) |
Drawings & Photos | NSN 6640-00-290-6842
Demand History | NSN 6640-00-290-6842
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6640-00-290-6842 | 2015-03-75 | 6 | DIBBS |
| 60197 | 2013-02-57 | 14 | US |
| 6640-00-290-6842 | 2012-07-191 | 6 | Guam |
| 6640-00-290-6842 | 2012-02-38 | 6 | GU |
| 8690 | 2011-12-335 | 300 | US |
| 6640-00-290-6842 | 2011-08-219 | 6 | DIBBS |
| 8690 | 2010-10-277 | 30 | |
| 8690 | 2010-10-277 | 30 | |
| 6640-00-290-6842 | 2010-07-199 | 6 | DIBBS |
Cross Reference | NSN 6640-00-290-6842
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08-690B | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 208-690B | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| 29-1200-09 | 25518 | J & H BERGE, INC. DBA LAB MART, THE |
| 3820-E25 | 59728 | THOMAS, ARTHUR H CO (INC) |
| 60197 | 0KXL6 | COORS CERAMICS CO |
| 8-690 | 22527 | FISHER SCIENTIFIC COMPANY L.L.C. |
| JANT473 | 81350 | JOINT ARMY-NAVY SPECIFICATIONS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35961-2 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| NNN-D-340 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-290-6842
Related Products | NSN 6640-00-290-6842
Technical Data | NSN 6640-00-290-6842
| Characteristic | Specifications |
|---|---|
| MATERIAL | PORCELAIN |

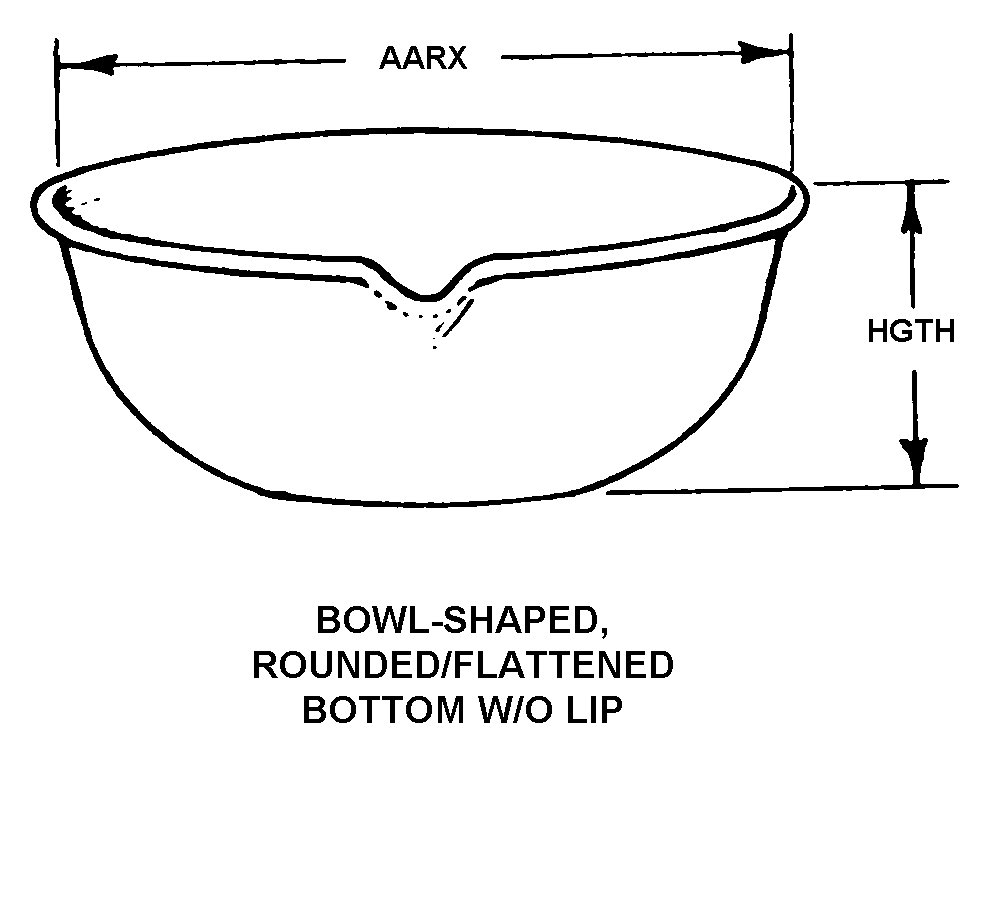

| STYLE DESIGNATOR | D23A BOWL-SHAPED, ROUNDED/FLATTENED BOTTOM W/O LIP |
| INSIDE DIAMETER | 75.00 MILLIMETERS NOMINAL |
| HEIGHT | 30.00 MILLIMETERS NOMINAL |
| CAPACITY RATING | 70.000 MILLILITERS NOMINAL |
| FEATURES PROVIDED | POUR-OUT |
| PRIMARY CONTAINER TYPE | CARTON |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| TOTAL PRIMARY CONTAINER QUANTITY | 1 |
| UNIT PACKAGE TYPE | CARTON |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE |
| III UNIT OF ISSUE WEIGHT | 0.03 POUNDS |
| III UNIT OF ISSUE CUBE | 0.019 CUBIC FEET |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35961-2 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NNN-D-340 |
Restrictions/Controls & Freight Information | NSN 6640-00-290-6842
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 047500 | CHINAWARE/EARTHENWARE ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 534 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6640-00-290-6842
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | I | DIRECT ORDERING FROM A CENTRAL CONTRACT/SCHEDULE # (NON-STOCKED ITEMS) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/service supply policy. The item is covered by a centrally issued contractual document or by any multiple-award Federal Supply Schedule, which permits using activities to place orders directly on vendors for direct delivery to the user. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
