NSN 6640-00-264-4998 MS360943, MS36094-3, 36290
Product Details | LABORATORY FILTERING FUNNEL
6640-00-264-4998 An item with an integral porous or perforated plate, or with slits on the inside of a double wall.
Part Alternates: MS360943, MS36094-3, 36290, 36290HCHAT, 6640-00-264-4998, 00-264-4998, 6640002644998, 002644998
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 00-264-4998 | 13458 ( FUNNEL, FILTERING, LABORATORY ) |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6640-00-264-4998
Related Products | NSN 6640-00-264-4998
Technical Data | NSN 6640-00-264-4998
Characteristic | Specifications |
---|---|
MATERIAL | GLASS, FED DD-G-541, TYPE 1, CLASS A |

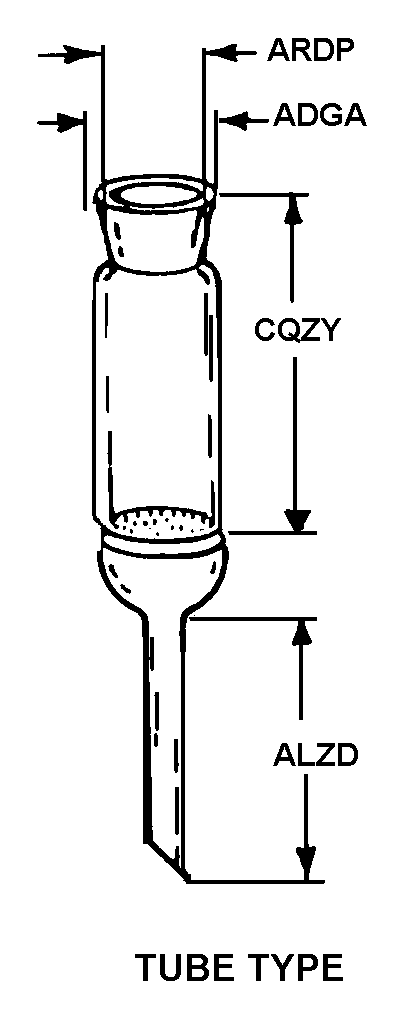

STYLE DESIGNATOR | F7 TUBE TYPE |
OVERALL OUTSIDE DIAMETER | 11.00 MILLIMETERS NOMINAL |
STEM LENGTH | 90.00 MILLIMETERS NOMINAL |
DISK DIAMETER | 10.00 MILLIMETERS NOMINAL |
DISTANCE FROM DISK TO TOP | 38.00 MILLIMETERS NOMINAL |
FILTERING DISK TYPE AND SIZE | 40.0 MICRONS FIXED POROUS |
CAPACITY RATING | 3.000 MILLILITERS NOMINAL |
PRIMARY CONTAINER TYPE | CARTON |
PRIMARY CONTAINER UNIT QUANTITY | 1 |
TOTAL PRIMARY CONTAINER QUANTITY | 1 |
UNIT PACKAGE TYPE | CARTON |
SPECIAL FEATURES | FIRE POLISHED RIM AND LIP,NECK ACCOMMODATES A NO. 00 RUBBER STOPPER |
MANUFACTURERS CODE | 96906 |
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS36094-3 |
Restrictions/Controls & Freight Information | NSN 6640-00-264-4998
Category | Code | Description |
---|---|---|
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Category | Code | Description |
---|---|---|
No Freight Information |
