Product Details | VOLUMETRIC PIPET

6640-00-024-0036 A tubular laboratory instrument which may include a bulb, usually having a single graduation. It is used to measure and deliver liquids. Excludes types which are adjusted for blowing out last drop.

Part Alternates: MS359861, MS35986-1, NNNP390, NNN-P-390, 280A10MAX, 709710, 7097-10, 6640-00-024-0036, 00-024-0036, 6640000240036, 000240036

Instruments and Laboratory Equipment | Laboratory Equipment and Supplies

Supply Group (FSG) NSN Assign. NIIN
66 01 JAN 1963 00-024-0036

Drawings & Photos | NSN 6640-00-024-0036


Cross Reference | NSN 6640-00-024-0036

Part Number Cage Code Manufacturer
280A10MAX 93271 SIERRA-MISCO INC
7097-10 14674 CORNING GLASS WORKS
MS35986-1 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
NNN-P-390 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6640-00-024-0036

Technical Data | NSN 6640-00-024-0036

Characteristic Specifications
DESIGN DESIGNATION KIRK
MATERIAL GLASS, FED DD-G-541, TYPE 1, CLASS A

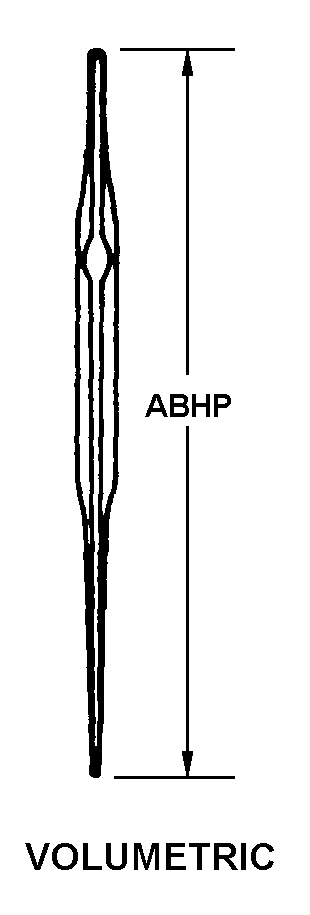

STYLE DESIGNATOR M23 VOLUMETRIC
OVERALL LENGTH 135.00 MILLIMETERS MINIMUM AND 145.00 MILLIMETERS MAXIMUM
CAPACITY RATING 10.000 MICROLITERS NOMINAL
CALIBRATION FUNCTION TO CONTAIN
PRIMARY CONTAINER TYPE CARTON
PRIMARY CONTAINER UNIT QUANTITY 1
TOTAL PRIMARY CONTAINER QUANTITY 1
UNIT PACKAGE TYPE CARTON
NONDEFINITIVE SPEC/STD DATA 10 CAPACITY
MANUFACTURERS CODE 96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE MS35986-1
MANUFACTURERS CODE 81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE NNN-P-390

Restrictions/Controls & Freight Information | NSN 6640-00-024-0036

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 088120 GLASSWARE LABORATORY
Less than car load rating
Less than truck load rating J 100.2
Water commodity Code 704 unknown
Originating Activity Code XX
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity M Medical supplies, equipment, samples records, etc.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6640-00-024-0036

Category Code Description
Materiel Category and Inventory ManagerR Bulk and Packaged Petroleum Fuels, Packaged Petroleum Products, Containers and Accessories thereof, Certain Chemicals and Solid Fuels (DLA/GSA)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code0 Medical Materiel
Weapons Systems/End Item or Homogeneous Group00DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements CodeX Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesLLOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
