NSN 6640-00-014-1031 45020, 00-014-1031, 000141031
Product Details | BRANCHED TUBING CONNECTOR
6640-00-014-1031 A metallic/nonmetallic item of either a T or Y shape used in making three way connections with metallic/nonmetallic tubing.20347300051Hose, Pipe, Tube, Lubrication, and Railing Fittings65150057Medical and Surgical Instruments, Equipment, and Supplies66400033Laboratory Equipment and Supplies
Part Alternates: 45020, 6640-00-014-1031, 00-014-1031, 6640000141031, 000141031
Instruments and Laboratory Equipment | Laboratory Equipment and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 MAY 1968 | 00-014-1031 | 37514 ( CONNECTOR, TUBING, BRANCHED ) |
Drawings & Photos | NSN 6640-00-014-1031
Cross Reference | NSN 6640-00-014-1031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 45020 | 84116 | OWENS-ILLINOIS INC LABORATORY SALES KIMBLE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6640-00-014-1031
Technical Data | NSN 6640-00-014-1031
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |

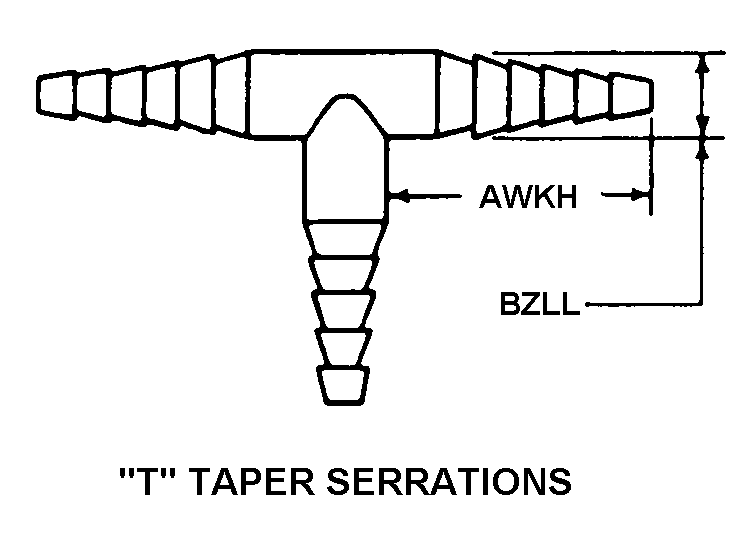

| STYLE DESIGNATOR | A17 T TAPER SERRATIONS |
| STEM LENGTH | ANY ACCEPTABLE |
| ARM LENGTH | 44.000 MILLIMETERS NOMINAL |
| TUBING INSIDE DIAMETER ACCOMMODATED | 0.250 INCHES NOMINAL |
| UNIT PACKAGE TYPE | BOX |
Restrictions/Controls & Freight Information | NSN 6640-00-014-1031
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
