NSN 6635-00-867-0516 D500M, DFE2500, DFE2-500
Product Details | SPRING RESILIENCY TESTER
6635-00-867-0516 An apparatus, device, or instrument which is specifically designed for testing spring resiliency by subjection to the desired strain and indicating this force in units of weight. Indication may be by means of a dial, graduated scale, a pressure gage, a weighing scale, or by the graduated scale of a torque indicator wrench. The force may be applied mechanically, hydraulically, or manually. May have a fixed or adjustable platform load receiver. Excludes SCALE (as modified).
Part Alternates: D500M, DFE2500, DFE2-500 , DFIS 500, DFIS500, DG500, DG-500 , MILT43560, D500, 6635-00-867-0516, 00-867-0516, 6635008670516, 008670516
Instruments and Laboratory Equipment | Physical Properties Testing and Inspection
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1960 | 00-867-0516 | 13502 ( TESTER, SPRING RESILIENCY ) |

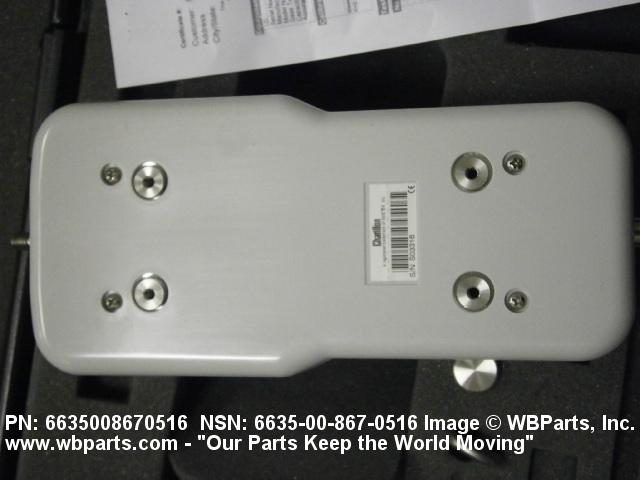

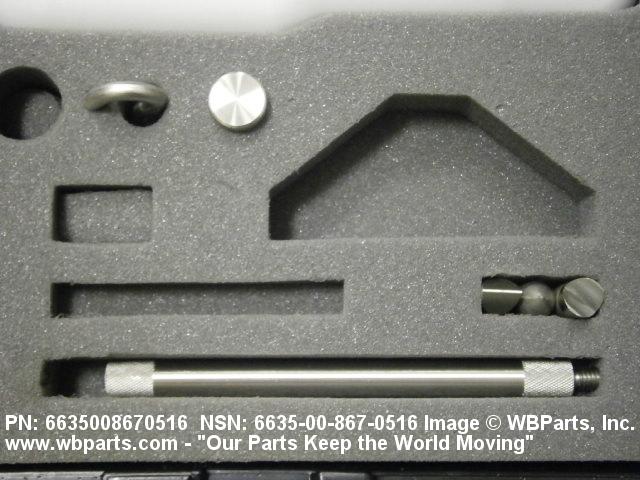

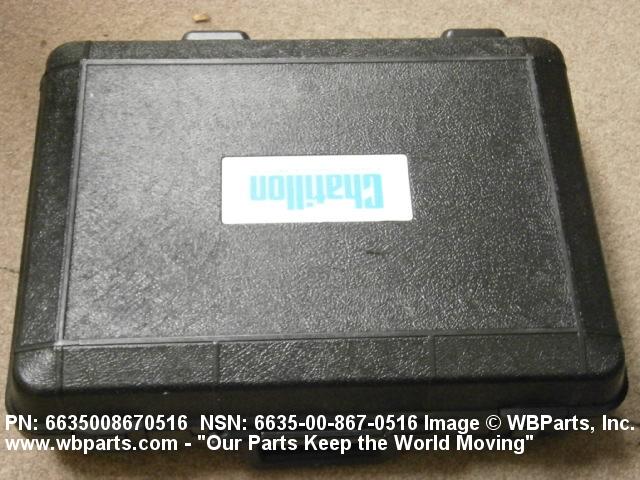

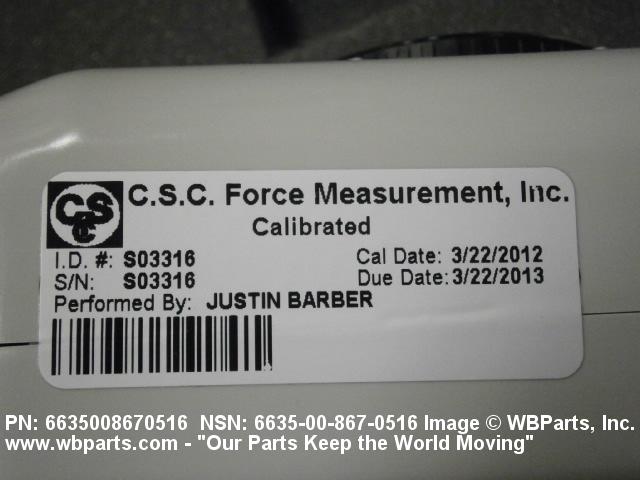

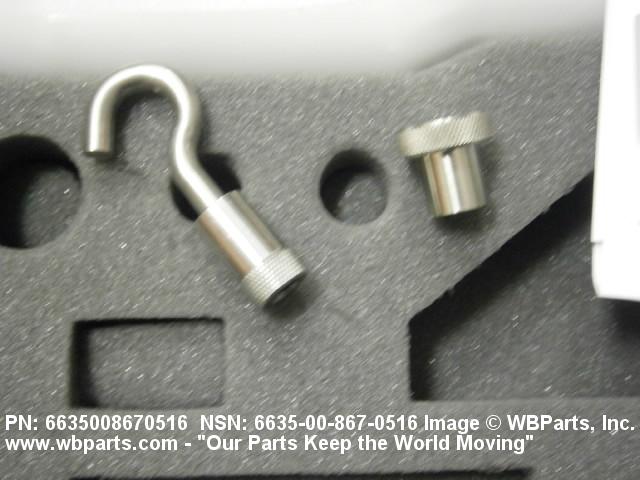

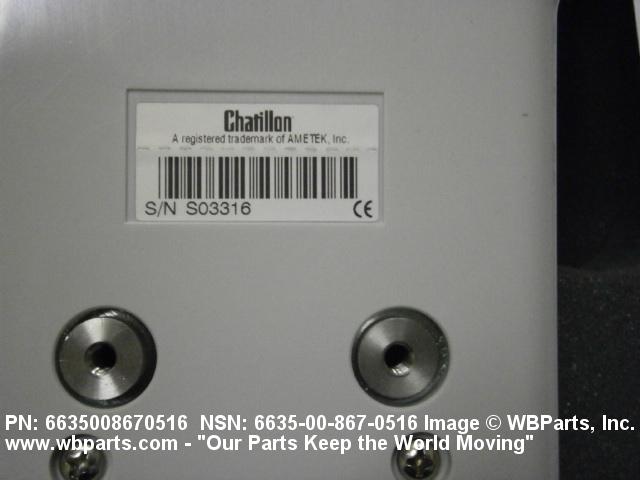

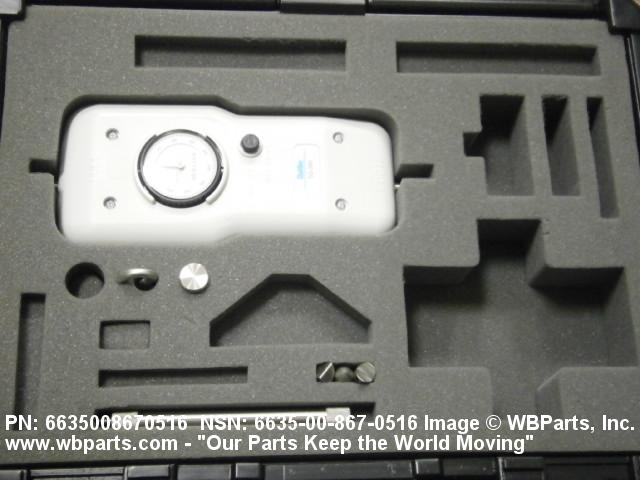

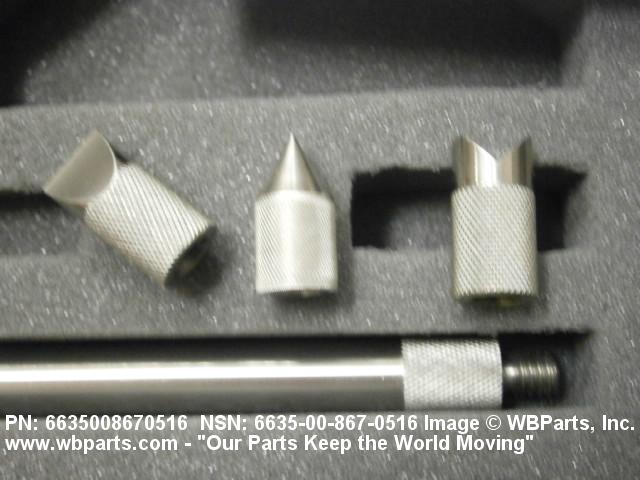

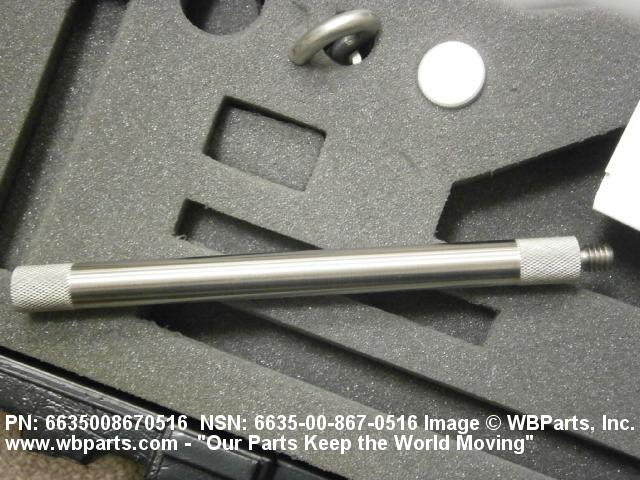

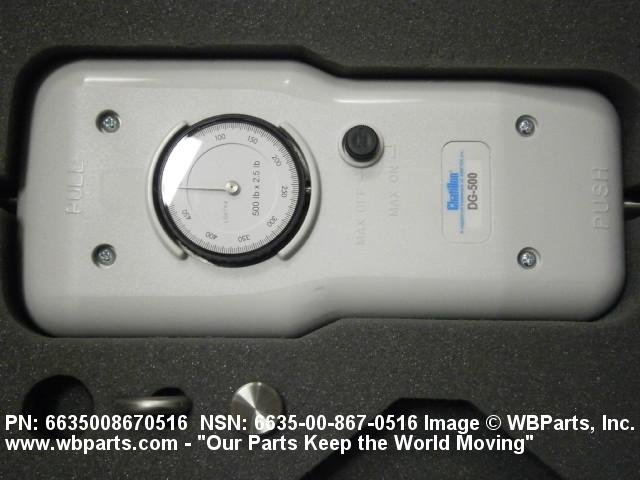

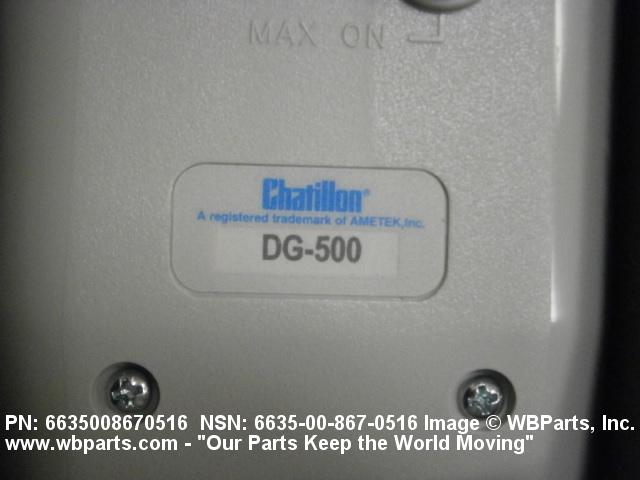

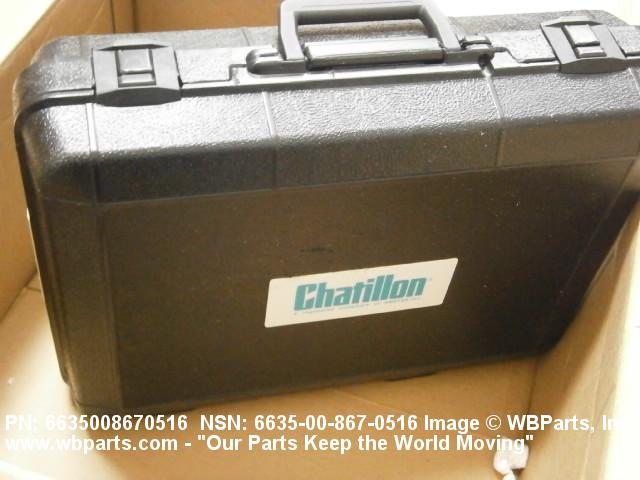

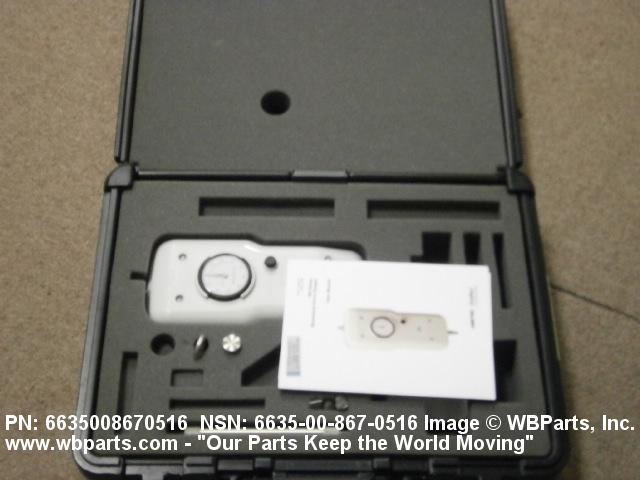

Drawings & Photos | NSN 6635-00-867-0516
Demand History | NSN 6635-00-867-0516
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6635-00-867-0516 | 2024-07-200 | 1 | us |
| 6635-00-867-0516 | 2023-11-306 | 1 | United States |
| 6635-00-867-0516 | 2022-11-325 | 1 | US |
| 6635-00-867-0516 | 2022-11-318 | 1 | United States |
| DG500 | 2022-06-154 | 0 | |
| 6635-00-867-0516 | 2021-10-288 | 1 | MX |
| 6635-00-867-0516 | 2020-10-301 | 1 | United States |
| 6635-00-867-0516 | 2020-08-223 | 1 | Russian Federation |
| 6635-00-867-0516 | 2020-02-58 | 1 | Russian Federation |
| DG500 | 2019-07-207 | 19 | |
| DG500 | 2018-09-249 | 8 | United States |
| 6635-00-867-0516 | 2017-05-128 | 1 | US |
| DFE2-500 | 2015-10-275 | 1 | United States |
| 6635-00-867-0516 | 2012-02-48 | 1 | Argentina |
| MILT43560 | 2010-03-69 | 10 | United States |
| MILT43560 | 2010-03-68 | 1 | United States |
Cross Reference | NSN 6635-00-867-0516
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D500 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| D500M | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| DFE2-500 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| DFIS 500 | 61349 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| DG-500 | 92456 | JOHN CHATILLON & SONS, INC. DBA AMETEK US GAUGE DIVISION |
| DG-500 | Z5459 | ROSS BROWN SALES PTY LTD |
| MILT43560 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6635-00-867-0516
Related Products | NSN 6635-00-867-0516
Technical Data | NSN 6635-00-867-0516
| Characteristic | Specifications |
|---|---|
| MOUNTING METHOD | PORTABLE |
| SPRING TYPE FOR WHICH DESIGNED | COMPRESSION AND TENSION |
| UNIT TYPE | WEIGHING SCALE |
| TORQUE INDICATING WRENCH USAGE FEATURE | NOT INCLUDED |
| OPERATION METHOD | MANUAL |
| LOAD RECEIVER TYPE | HOOK AND PUSH ROD |
| MEASUREMENT UNIT | POUND |
| SCALE RANGE | 0 TO 500 LB |
| SCALE SMALLEST INCREMENT GRADUATION | .5 LB SMALLEST INCREMENT |
| SPRING TRAVEL GAGE | NOT INCLUDED |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILT43560 |
Restrictions/Controls & Freight Information | NSN 6635-00-867-0516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058280 | SCIENTIFIC INSTRUMENTS NOI |
| Less than car load rating | M | 85 |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6635-00-867-0516
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | FA | ATTACKAIRCRAFT(A6) |
| Issue Repair, or Requisition | BS | Submit/refer requisitions to NAVICP PHIL. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
