NSN 6630-01-100-3516 1784469010, 178-4469-010, 1784469P01
Product Details | AUTOMATED ANALYSIS SAMPLE CUP
6630-01-100-3516 A vessel made of clear plastic with uniform wall thickness used in handling of samples for analysis on automated clinical chemistry analyzer assembly. May be of conical or flat bottom design. May be graduated. Excludes BEAKER, LABORATORY; CUP, MICRO SAMPLE, AUTOMATED ANALYSIS; and GRADUATE, LIQUID, LABORATORY.
Part Alternates: 1784469010, 178-4469-010, 1784469P01, 178-4469P01, 6630-01-100-3516, 01-100-3516, 6630011003516, 011003516
Instruments and Laboratory Equipment | Chemical Analysis Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 04 SEP 1980 | 01-100-3516 | 38256 ( CUP, SAMPLE, AUTOMATED ANALYSIS ) |
Drawings & Photos | NSN 6630-01-100-3516
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6630-01-100-3516
Technical Data | NSN 6630-01-100-3516
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC, POLYSTYRENE |

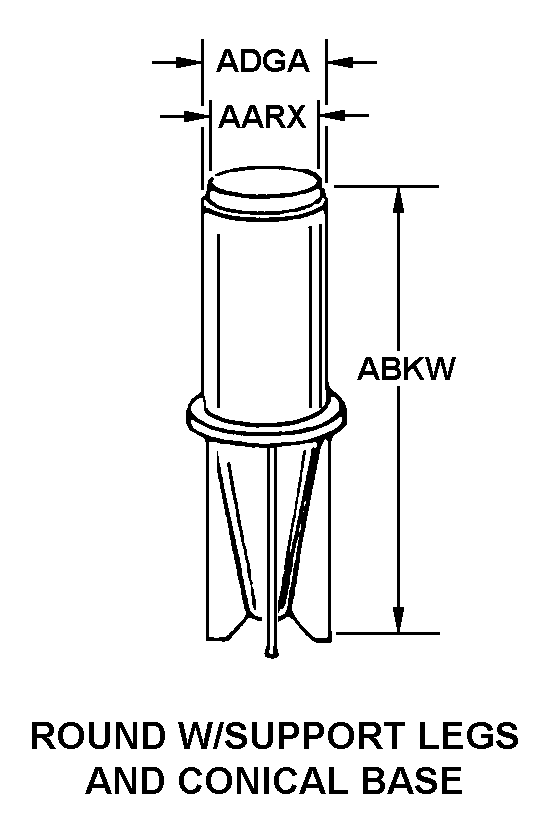

| STYLE DESIGNATOR | B14 ROUND W/SUPPORT LEGS AND CONICAL BASE |
| INSIDE DIAMETER | 12.0 MILLIMETERS NOMINAL |
| OVERALL HEIGHT | 63.5 MILLIMETERS NOMINAL |
| OVERALL OUTSIDE DIAMETER | 14.0 MILLIMETERS NOMINAL |
| CAPACITY RATING | 5.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO CONTAIN |
| COLOR CODING | CLEAR |
| PRIMARY CONTAINER TYPE | PACKAGE |
| PRIMARY CONTAINER UNIT QUANTITY | 500 |
| TOTAL PRIMARY CONTAINER QUANTITY | 2 |
| SPECIAL FEATURES | USED W/ TECHNICON SMAC SYSTEAMS; WITHOUT CAP |
Restrictions/Controls & Freight Information | NSN 6630-01-100-3516
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 6630-01-100-3516
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9L | Navy-owned stocks of defense medical material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9M | Defense Supply Center Philadelphia Director of Medical Materiel Philadelphia, PA 19145 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 PG : Package |
