NSN 6630-00-996-9606 76000, 76004, 00-996-9606
Product Details | PH METER
6630-00-996-9606 An electrical instrument embodying a potentiometer circuit with suitable electrodes to determine the effective acidity or alkalinity of a solution in the measuring of hydrogen ions concentration.
Part Alternates: 76000, 76004, 6630-00-996-9606, 00-996-9606, 6630009969606, 009969606
Instruments and Laboratory Equipment | Chemical Analysis Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 08 OCT 1965 | 00-996-9606 | 42678 ( METER, PH ) |
Drawings & Photos | NSN 6630-00-996-9606
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6630-00-996-9606
Technical Data | NSN 6630-00-996-9606
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | BENCH |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 14.0 PH SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -0.1 TO 0.1 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| OPERATING VOLTAGE RATING IN VOLTS | 115.0 AC NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |

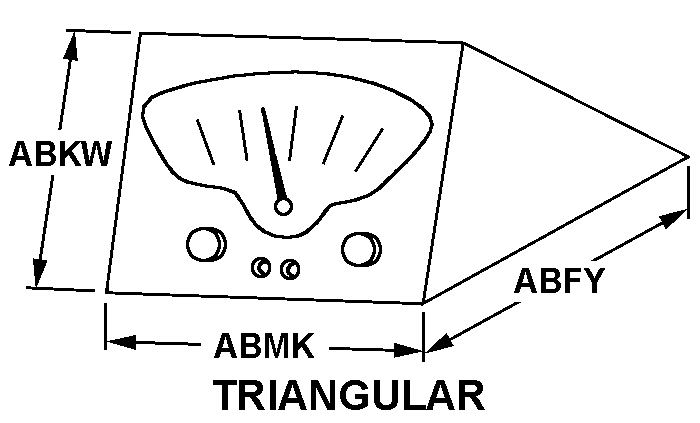

| STYLE DESIGNATOR | D7 TRIANGULAR |
| OVERALL DEPTH | 12.000 INCHES NOMINAL |
| OVERALL HEIGHT | 7.200 INCHES NOMINAL |
| OVERALL WIDTH | 12.000 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| SPECIAL FEATURES | INCLUDES GENERAL PURPOSE GLASS ELECTRODE, HOLDER, ROD, BRACKET, BUFFER KIT, KC-1 FILLING SOLUTION, DUST COVER AND INSTRUCTION MANUAL |
Restrictions/Controls & Freight Information | NSN 6630-00-996-9606
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058160 | PH METERS IN BOXES |
| Less than car load rating | F | 150 |
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
