NSN 6630-00-526-9444 MILH8004, 13359S41A, 00-526-9444
Product Details | GRADUATED SCALE HYDROMETER
6630-00-526-9444 A hydrometer with a graduated scale on stem calibrated to read specific gravity, percentage of content(s), or the like. See also TESTER, ANTIFREEZE SOLUTIONS and TESTER, BATTERY ELECTROLYTE SOLUTION.
Part Alternates: MILH8004, 13359S41A, 6630-00-526-9444, 00-526-9444, 6630005269444, 005269444
Instruments and Laboratory Equipment | Chemical Analysis Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-526-9444 | 07185 ( HYDROMETER, GRADUATED SCALE ) |

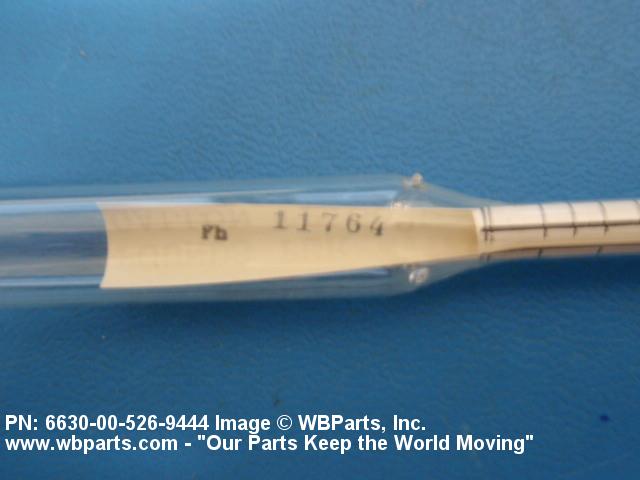

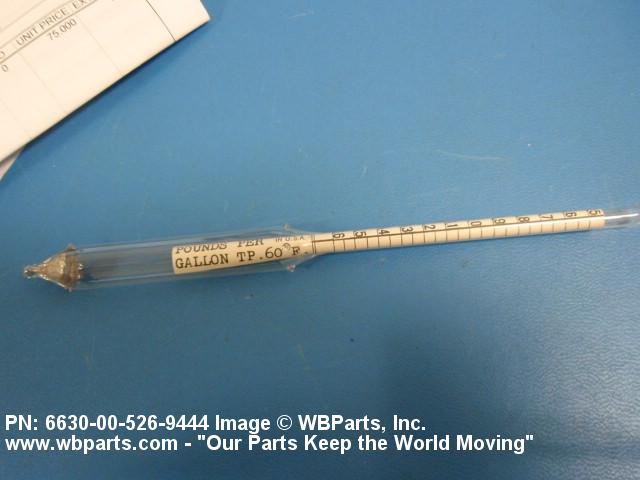

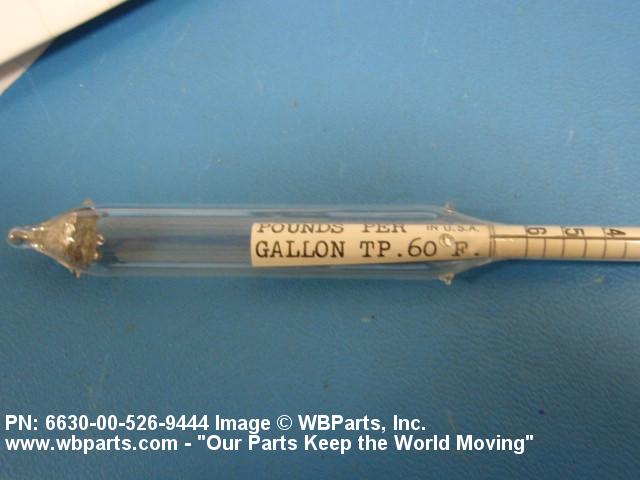

Drawings & Photos | NSN 6630-00-526-9444
Demand History | NSN 6630-00-526-9444
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6630-00-526-9444 | 2016-08-214 | 2 | Singapore |
| 6630-00-526-9444 | 2011-01-26 | 1 | SG |
| MILH8004 | 2011-01-21 | 1 | Singapore |
| MILH8004 | 2010-01-01 | 1 | Singapore |
| 6630-00-526-9444 | 2009-08-242 | 1 | Singapore |
| MILH8004 | 2008-12-362 | 1 | Singapore |
| MILH8004 | 2007-12-339 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6630-00-526-9444
Related Products | NSN 6630-00-526-9444
Technical Data | NSN 6630-00-526-9444
| Characteristic | Specifications |
|---|---|
| STEM MATERIAL | GLASS |
| PLUMMET MATERIAL | GLASS |
| SCALE QUANTITY | 1 |
| SCALE NAME | DENSITY IN POUNDS PER GALLON |
| SCALE RANGE | 5.50 TO 6.60 POUNDS PER GALLON |
| SCALE SMALLEST INCREMENT | 0.05 POUNDS |
| SCALE ACCURACY RATING | 0.025 POUNDS PER GALLON |
| SCALE CALIBRATION TEMP | 60.0 DEG FAHRENHEIT |
| THERMOMETER | NOT INCLUDED |
| SPECIMEN RECEPTACLE HOLDER | NOT INCLUDED |
| CORRECTION SCALE | NOT INCLUDED |
| CONVERSION CHART | NOT INCLUDED |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| OVERALL DIAMETER | 0.563 INCHES NOMINAL |
| III UNIT OF ISSUE WEIGHT | 0.06 POUNDS |
| III UNIT OF ISSUE CUBE | 0.004 CUBIC FEET |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILH8004 |
Restrictions/Controls & Freight Information | NSN 6630-00-526-9444
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057920 | HYDROMETERS IN BOXES |
| Less than car load rating | ||
| Less than truck load rating | F | 150.0 |
| Water commodity Code | 653 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6630-00-526-9444
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | C | Medical/Dental Materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
