NSN 6630-00-092-7920 107249, 107-249, 00-092-7920
Product Details | LABORATORY BURET
6630-00-092-7920 A graduated tube, with a flow regulator, for delivering and/or regulating measured quantities of liquids or for measuring the liquids or gases received or discharged.20266300029Chemical Analysis Instruments66400033Laboratory Equipment and Supplies
Part Alternates: 107249, 107-249, 6630-00-092-7920, 00-092-7920, 6630000927920, 000927920
Instruments and Laboratory Equipment | Chemical Analysis Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 01 JAN 1963 | 00-092-7920 | 33386 ( BURET, LABORATORY ) |

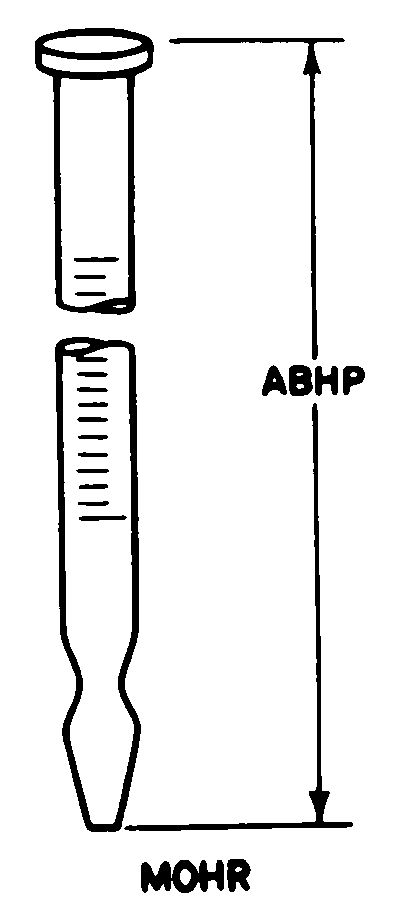

Drawings & Photos | NSN 6630-00-092-7920
Cross Reference | NSN 6630-00-092-7920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 107-249 | 16760 | CRYOGENIC EQUIPMENT INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6630-00-092-7920
Technical Data | NSN 6630-00-092-7920
| Characteristic | Specifications |
|---|---|
| MATERIAL | GLASS |
| STYLE DESIGNATOR | L16 MOHR |
| OVERALL LENGTH | 812.80 MILLIMETERS NOMINAL |
| CAPACITY RATING | 250.000 MILLILITERS NOMINAL |
| CALIBRATION FUNCTION | TO DELIVER |
| SCALE READING DIRECTION | TOP TO BOTTOM OUTSIDE SINGLE SCALE |
| SCALE GRADUATION UNIT | 1.0 CUBIC CENTIMETERS SINGLE INTERVAL SINGLE SCALE |
| SCALE GRADUATION UNIT RANGE | 0.0 TO 250.0 CUBIC CENTIMETERS SINGLE INTERVAL SINGLE SCALE |
| SCALE MARKING | EVERY TENTH GRADUATION NUMBERED |
| PRIMARY CONTAINER TYPE | BOX |
| PRIMARY CONTAINER UNIT QUANTITY | 1 |
| MANUFACTURERS CODE | 16760 |
| DESIGN CONTROL REFERENCE | 107-249 |
Restrictions/Controls & Freight Information | NSN 6630-00-092-7920
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088120 | GLASSWARE LABORATORY |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 652 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
