NSN 6625-01-587-4126 N9912A, MILHDBK300PME, 01-587-4126
Product Details | SPECTRUM ANALYZER
6625-01-587-4126 An instrument specifically designed to measure the amplitude and frequency of the constituents of a complex electrical wave form. May include transducer mechanism for converting sound pressure into electrical energy.
Part Alternates: N9912A, MILHDBK300PME, 6625-01-587-4126, 01-587-4126, 6625015874126, 015874126
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 05 AUG 2010 | 01-587-4126 | 00833 ( ANALYZER, SPECTRUM ) |

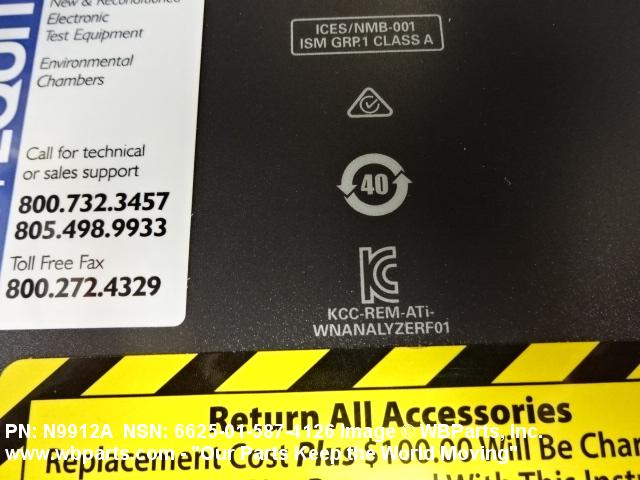

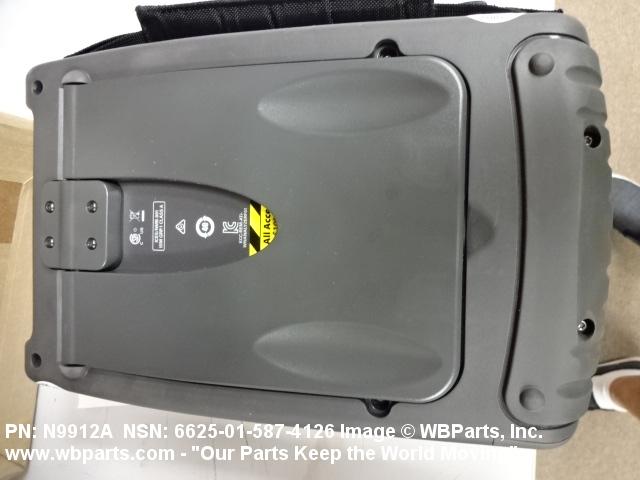

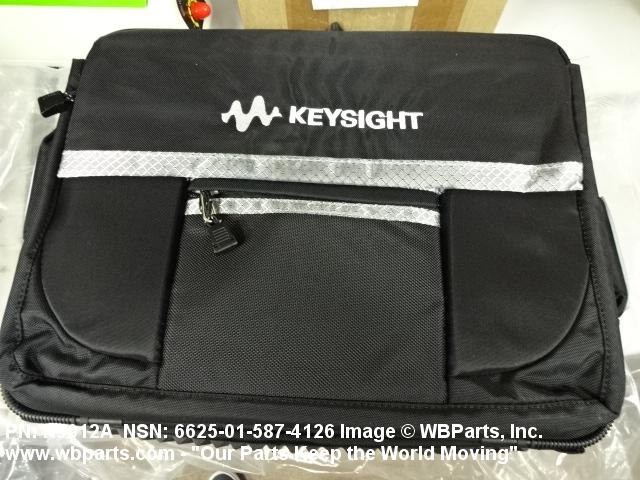

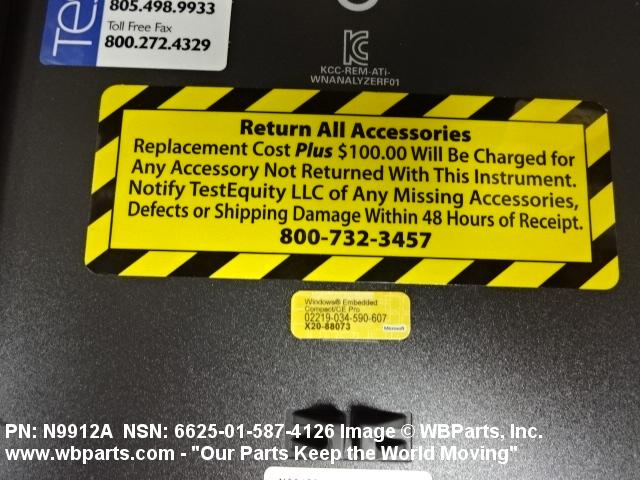

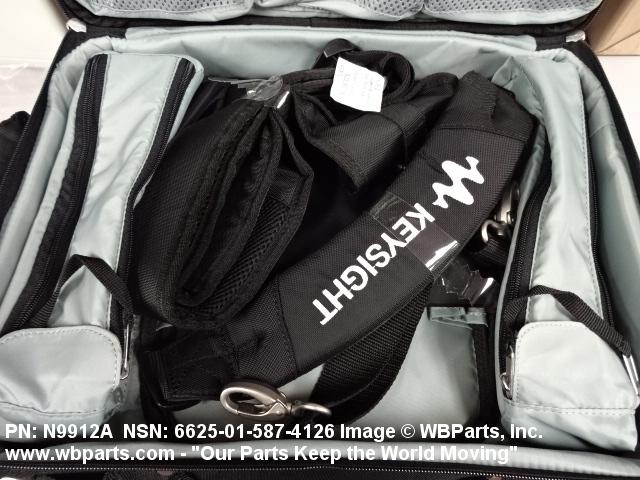

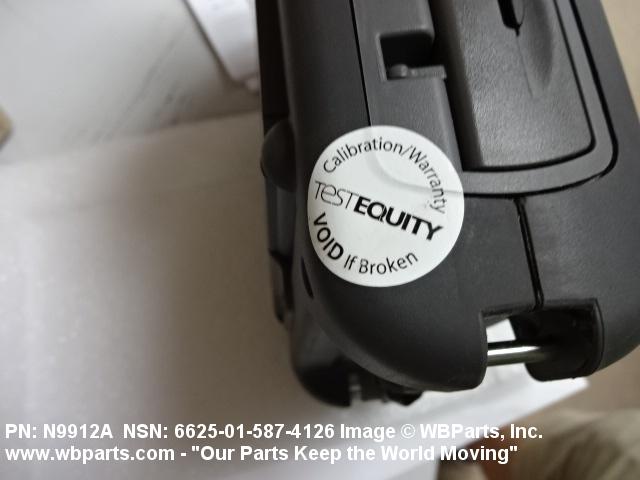

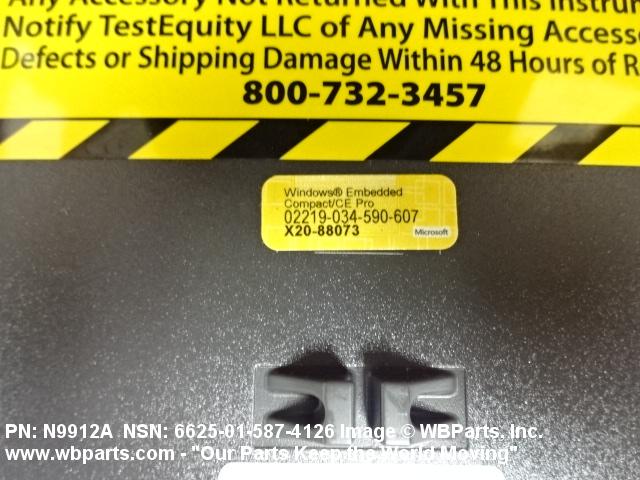

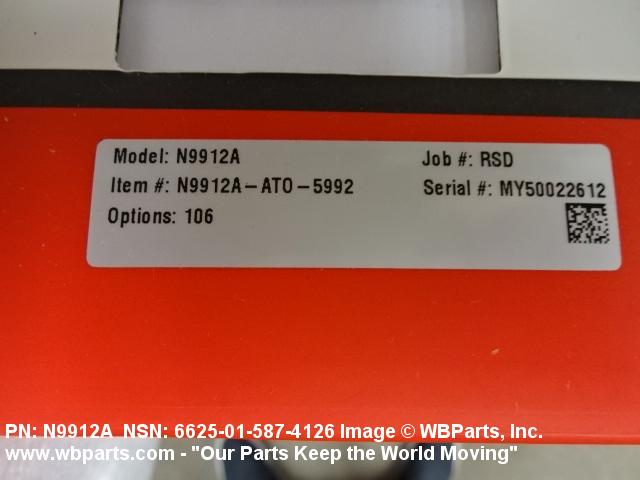

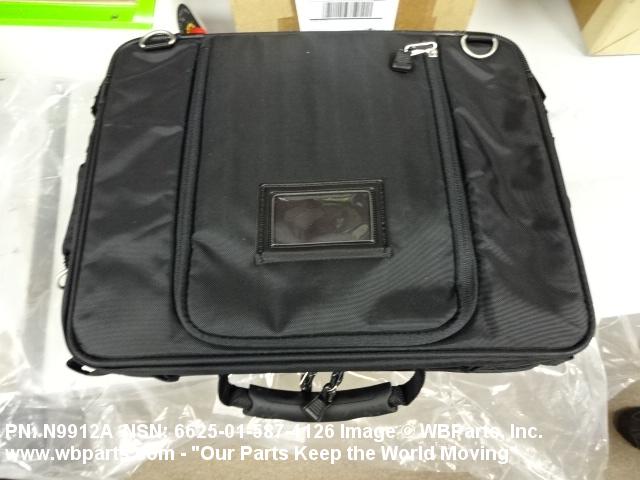

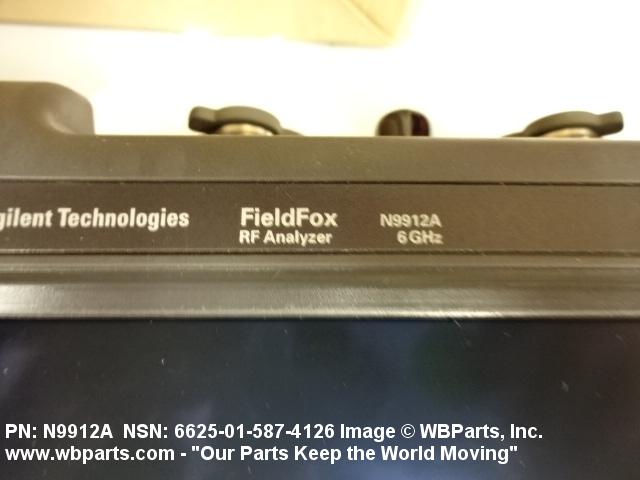

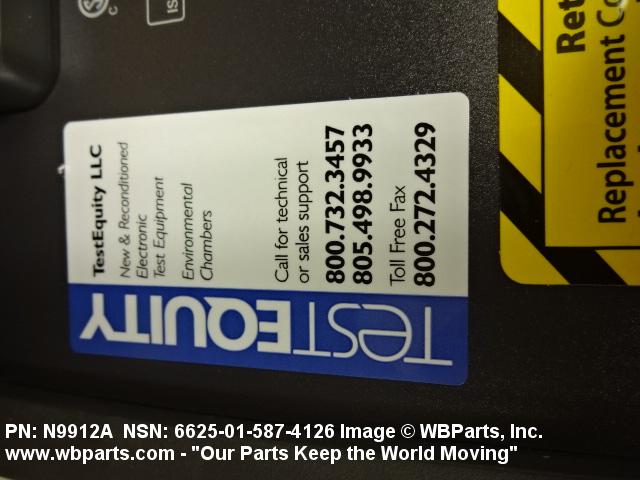

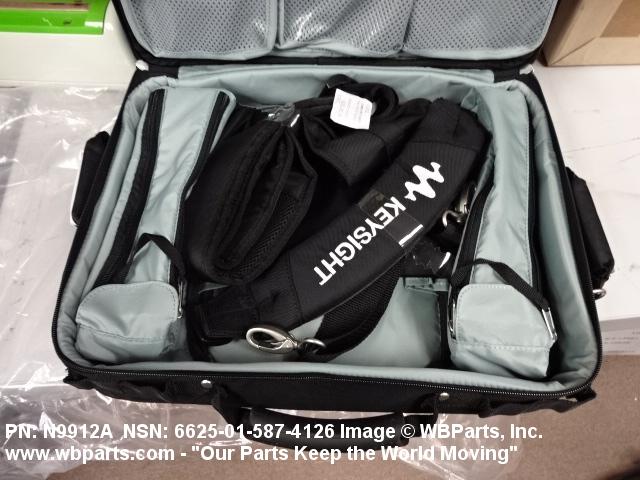

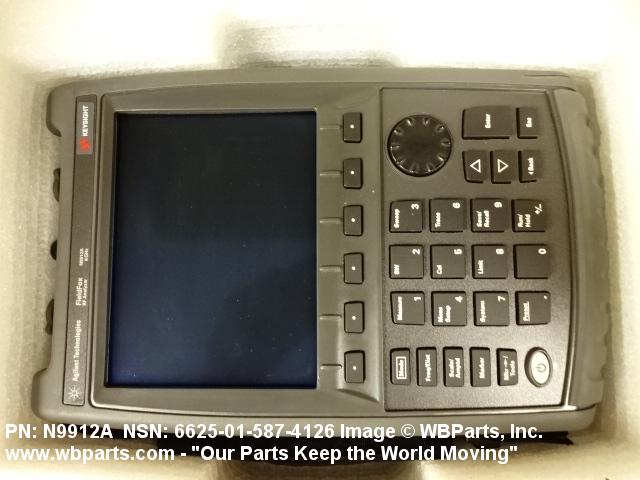

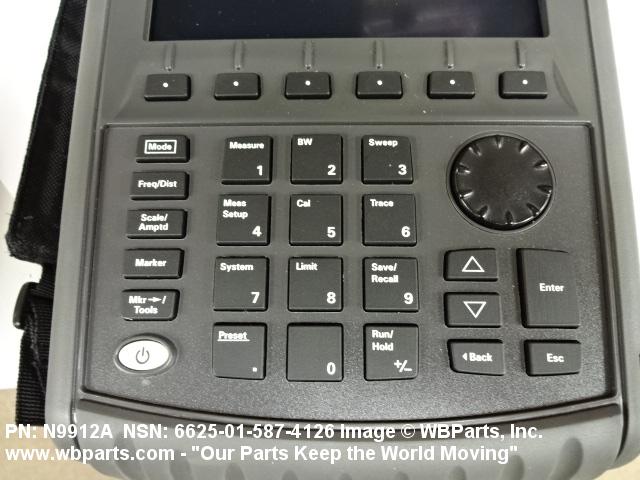

Drawings & Photos | NSN 6625-01-587-4126
Demand History | NSN 6625-01-587-4126
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-587-4126 | 2024-09-250 | 1 | US |
| N9912A | 2018-07-201 | 1 | us |
| 6625-01-587-4126 | 2013-11-309 | 0 | US |
| 6625-01-587-4126 | 2013-11-309 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-587-4126
Technical Data | NSN 6625-01-587-4126
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | HANDHELD BATTERY POWERED; USB PORTS; SD FLASH CARD SLOT; LAN PORT; EXTERNAL TRIGGER, RF OUT AND IN CONNECTORS |
| CATHODE RAY TUBE DISPLAYED INFORMATION | ANALOG/DIGITAL METER; X-Y GRAPH INFORMATION |
| OVERALL HEIGHT | 11.500 INCHES NOMINAL |
| FREQUENCY RANGE RATING | +0.002/+4.000 GIGAHERTZ AND +0.002/+6.000 GIGAHERTZ |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FIELDFOX RF ANALYZER |
| FUNCTIONAL DESCRIPTION | USED FOR CABLE AND ANTENNA ANALYSIS, RETURN LOSS AND DTF MEASUREMENTS, BROADBAND CALIBRATION, INTERFERENCE ANALYSIS, NETWORK ANALYSIS, POWER MEASUREMENT, TRANSMISSION MEASUREMENT, VECTOR VOLTAGE MEASUREMENT |
| FUNCTIONAL CLASSIFICATION | AA-3.3 |
| ENTRY DATE | 10-08-05 |
| MOUNTING METHOD | CASE MOUNTED PORTABLE |
| OVERALL WIDTH | 7.400 INCHES NOMINAL |
| OVERALL DEPTH | 2.800 INCHES NOMINAL |
| UNIT TYPE | STANDARD |
Restrictions/Controls & Freight Information | NSN 6625-01-587-4126
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
