NSN 6625-01-522-4194 PMP603007, PMP-603007, PMP-603-007
Product Details | TEST LEAD
6625-01-522-4194 A definite length of wire or cable with a CLIP (1), ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; JACK, TELEPHONE; PLUG, TELEPHONE; JACK, TIP; PLUG, TIP; or the like on one or both ends, and PROD, TEST on either end but not both ends. Active electronic components such as Capacitors, ELECTRON TUBE, Resistors, Semiconductor devices, and the like may be mounted into and included with LEAD, TEST for attenuation or amplification purposes. May or may not include accessories, such as CLIP (1), ELECTRICAL; TIP, TEST PROD; PROD, TEST; and TEST LEAD ATTACHMENT. For items consisting of more than one LEAD, TEST see LEAD SET, TEST. For items designed for direct attachment to a LEAD, TEST see PROD, TEST. For items designed for indirect attachment to a LEAD, TEST see TEST LEAD ATTACHMENT. For items not specifically designed for test purposes see LEAD, ELECTRICAL.
Part Alternates: PMP603007, PMP-603007, PMP-603-007 , 7191986-02, 6625-01-522-4194, 01-522-4194, 6625015224194, 719198602, 015224194
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 29 JUL 2004 | 01-522-4194 | 08059 ( LEAD, TEST ) |

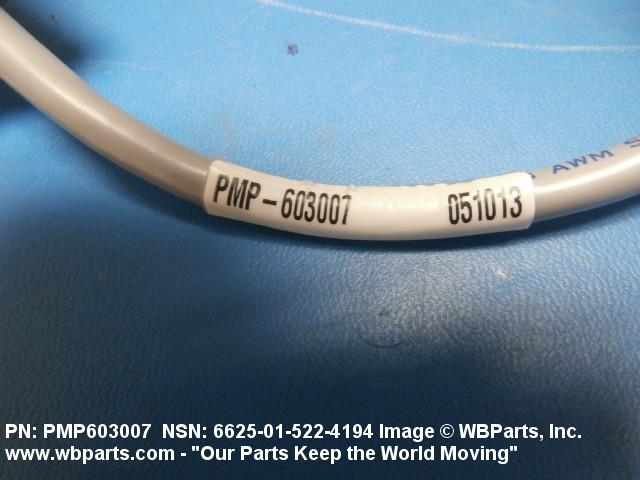

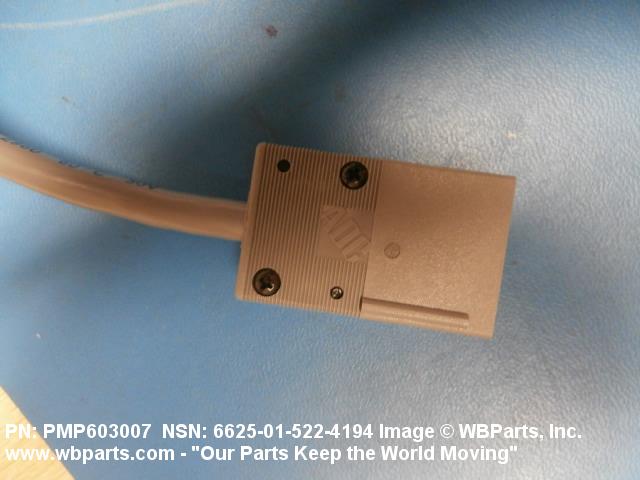

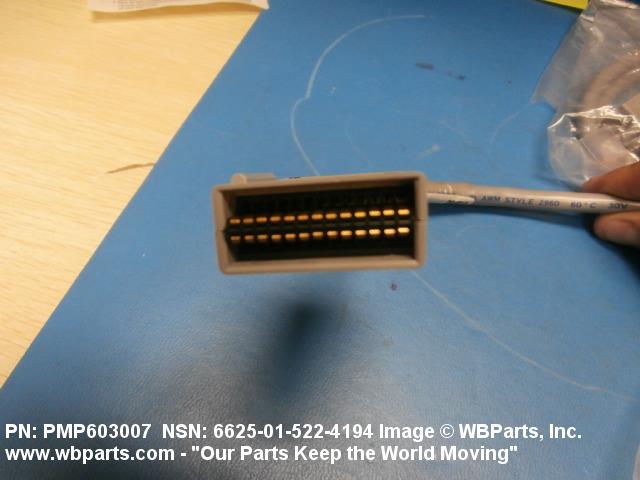

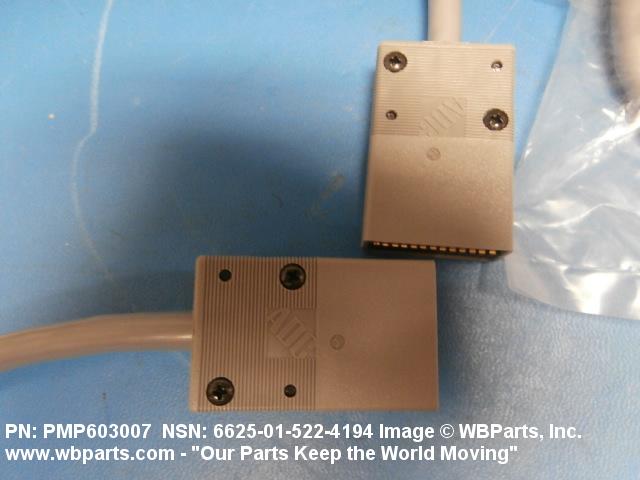

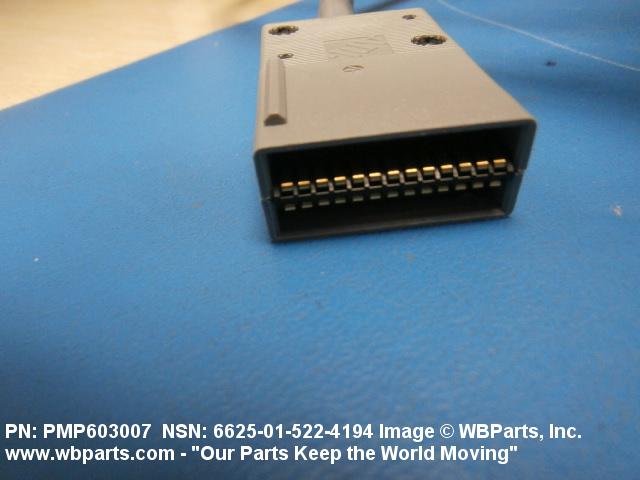

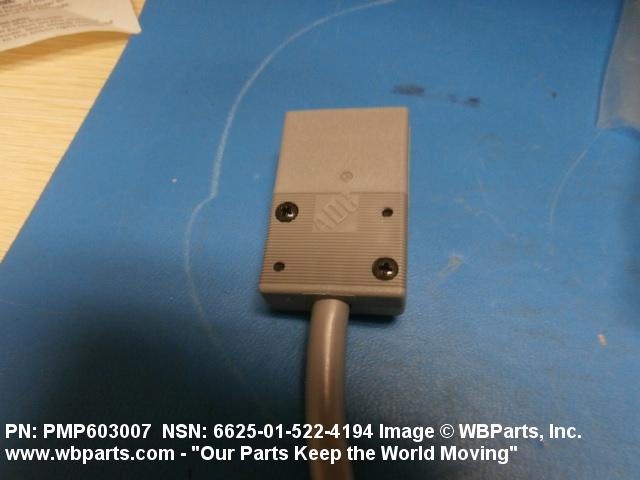

Drawings & Photos | NSN 6625-01-522-4194
Demand History | NSN 6625-01-522-4194
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-522-4194 | 2024-09-257 | 24 | United States |
| 6625-01-522-4194 | 2022-11-313 | 2 | United States |
| 6625-01-522-4194 | 2022-05-133 | 3 | US |
| 6625-01-522-4194 | 2022-05-123 | 3 | US |
| 6625-01-522-4194 | 2017-09-269 | 8 | United States |
| PMP603007 | 2016-05-123 | 6 | us |
| PMP603007 | 2016-03-88 | 6 | us |
| 6625-01-522-4194 | 2016-03-63 | 44 | DIBBS |
| 6625-01-522-4194 | 2015-07-211 | 50 | DIBBS |
| 6625-01-522-4194 | 2015-05-141 | 16 | DIBBS |
| 6625-01-522-4194 | 2013-06-167 | 92 | DIBBS |
| 6625-01-522-4194 | 2013-02-42 | 78 | DIBBS |
| 6625-01-522-4194 | 2012-06-181 | 68 | DIBBS |
| 6625-01-522-4194 | 2012-04-118 | 68 | DIBBS |
| 6625-01-522-4194 | 2011-12-356 | 33 | DIBBS |
| 6625-01-522-4194 | 2011-11-308 | 32 | DIBBS |
| 6625-01-522-4194 | 2011-04-108 | 16 | US |
| 6625-01-522-4194 | 2011-04-102 | 45 | DIBBS |
| 6625-01-522-4194 | 2011-03-77 | 25 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-522-4194
Related Products | NSN 6625-01-522-4194
Technical Data | NSN 6625-01-522-4194
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | AN/TSC-156 |
Restrictions/Controls & Freight Information | NSN 6625-01-522-4194
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-522-4194
Army
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
