Product Details | FREQUENCY CALIBRATOR SET

6625-01-449-8018 A fixed number of components and/or items, not all having the same basic name, which are required for the generation of one or more fixed frequencies that are used to determine by comparison the frequency(ies) derived from other sources. See also FREQUENCY METER.

Part Alternates: 067-1338-00, 6625-01-449-8018, 01-449-8018, 6625014498018, 067133800, 014498018

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG) NSN Assign. NIIN
66 15 OCT 1997 01-449-8018

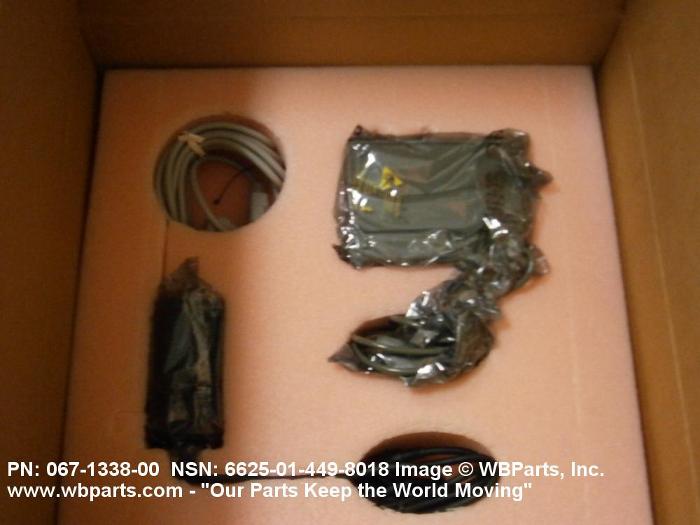

Drawings & Photos | NSN 6625-01-449-8018


Demand History | NSN 6625-01-449-8018

Part Number Request Date QTY Origin
6625-01-449-8018 2021-02-54 1 CA
6625-01-449-8018 2015-01-21 1 TH
6625-01-449-8018 2012-03-82 1 United States
067133800 2012-02-55 1 United States

Cross Reference | NSN 6625-01-449-8018

Part Number Cage Code Manufacturer
067-1338-00 80009 TEKTRONIX, INC. DBA TEKTRONIX

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-449-8018

Technical Data | NSN 6625-01-449-8018

Characteristic Specifications
END ITEM IDENTIFICATION SUPPORTS CALIBRATION OF SD14,SD20,SD22,SD24,SD26,SD32,TDS 820,11801,11802 AND OTHER EQUIPMENT

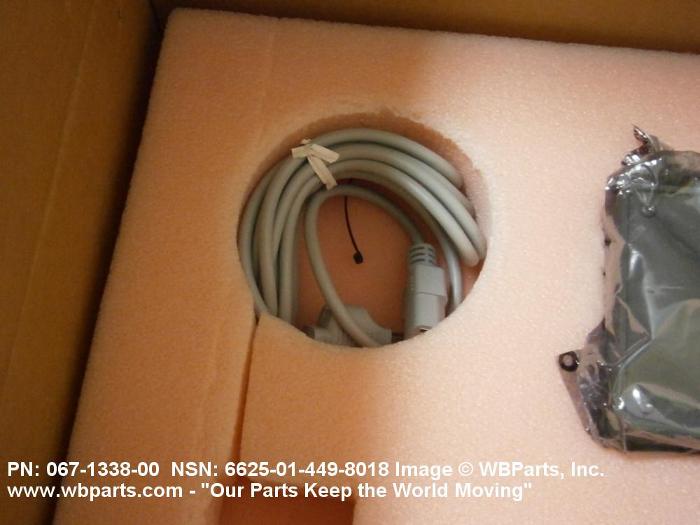

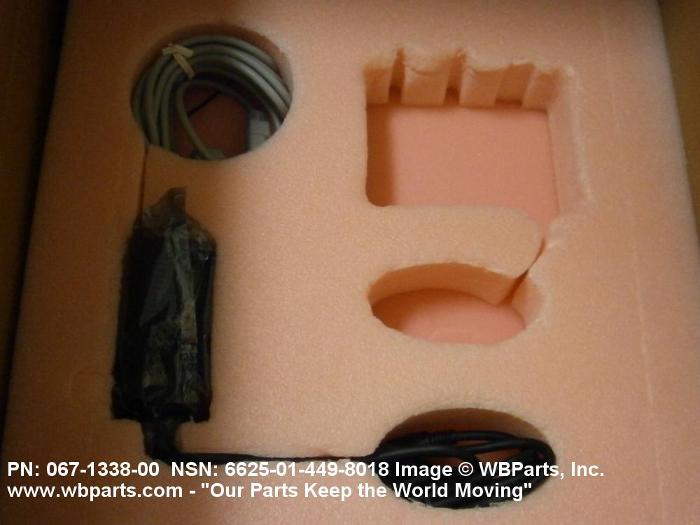

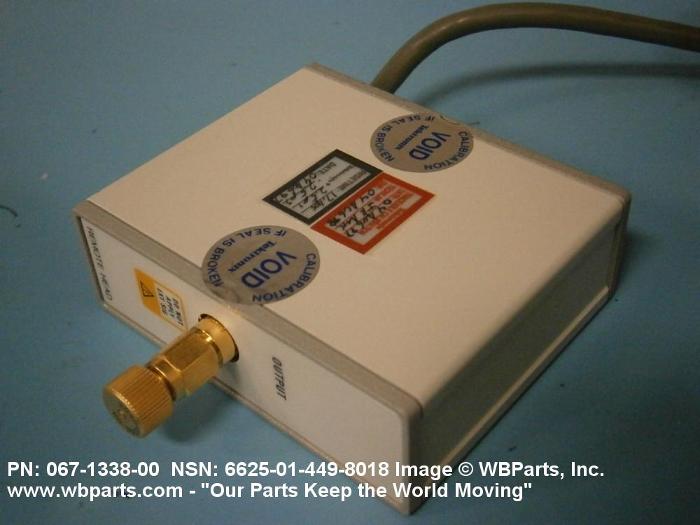

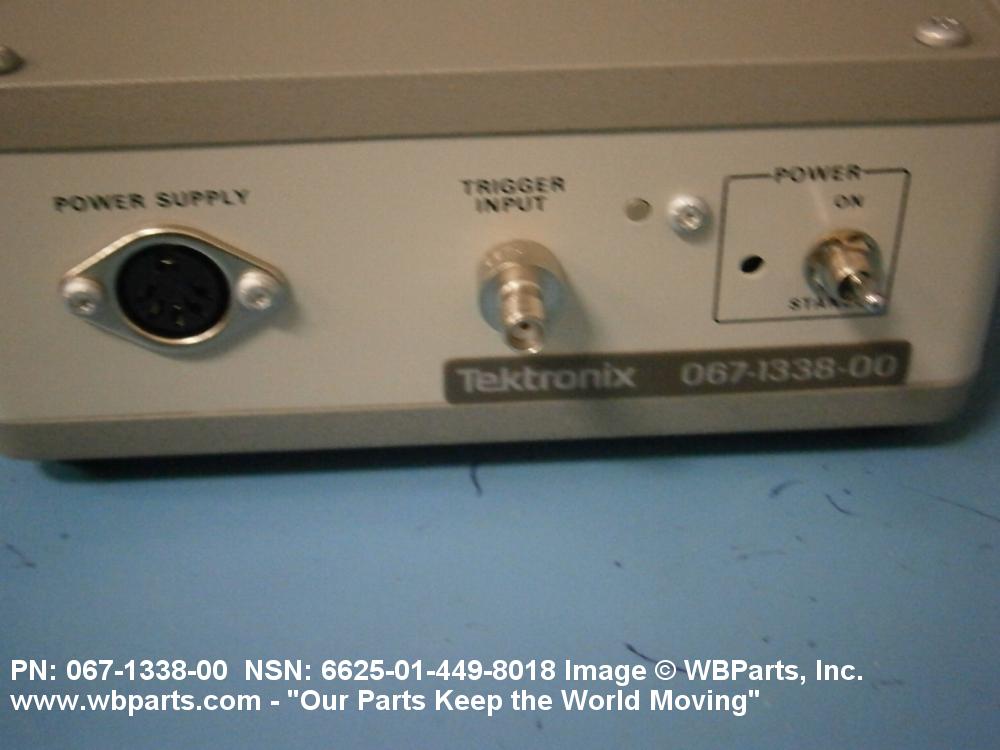

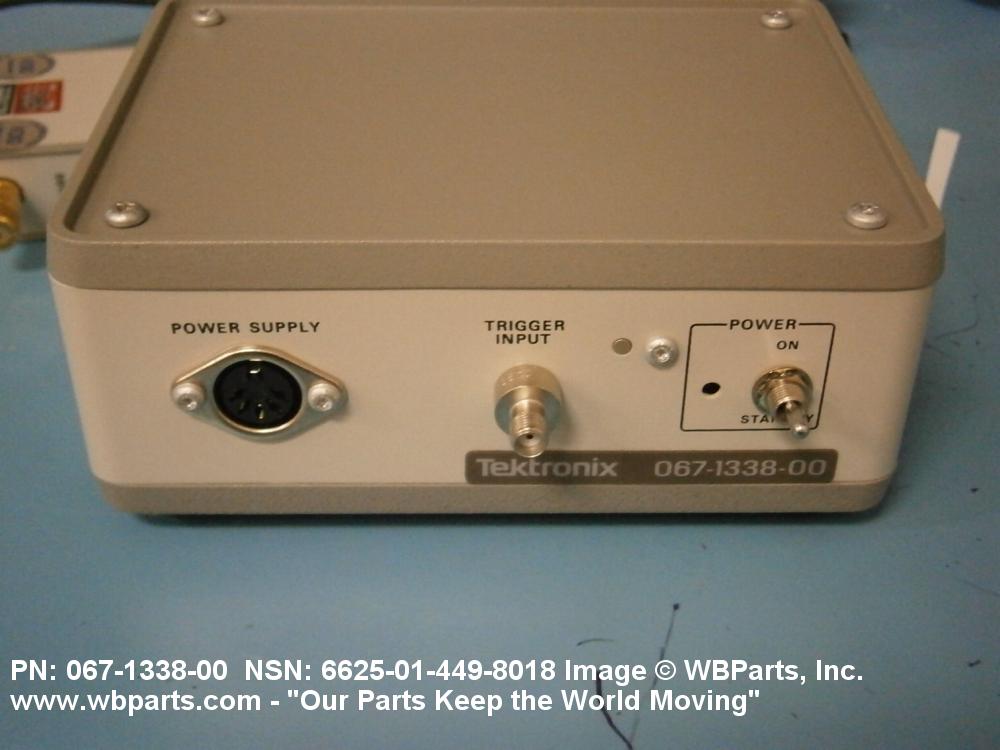

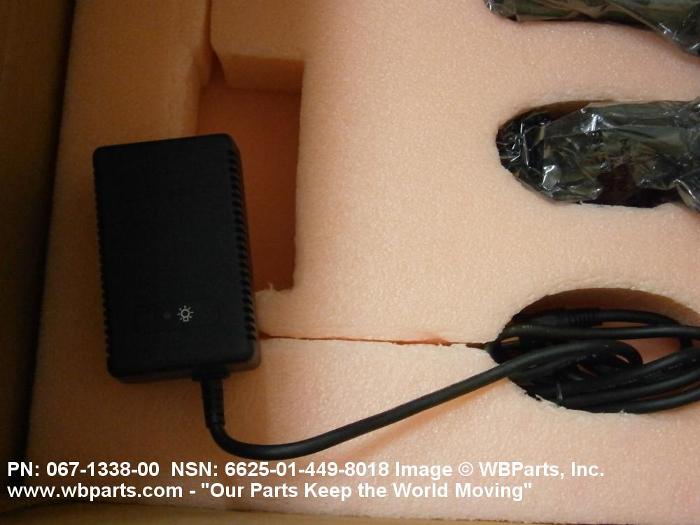

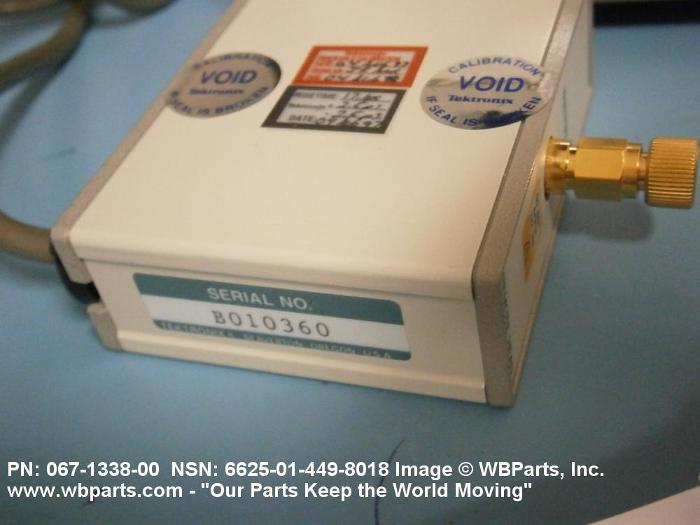

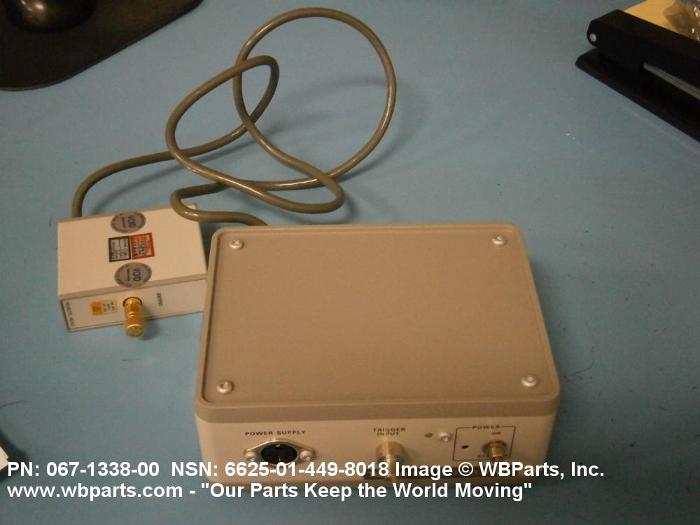

SPECIAL FEATURES MANUFACTURERS SUGGESTED NAME IS CALIBRATION STEP GENERATOR;C/O 5.65X5.20X2.55 IN. CONTROL UNIT,3.25X0.95X2.90 IN. REMOTE HEAD,115V PLUG-IN POWER SUPPLY,AND 1M INTERCONNECT CABLE
III FUNCTIONAL DESCRIPTION CAPABLE OF CERTIFYING SAMPLING HEAD ACQUISITION PERFORMANCE TO A CONTROLLED INTERNAL TEK STANDARD ACQUISITION UNIT

Restrictions/Controls & Freight Information | NSN 6625-01-449-8018

Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:0Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
Category Code Description
NMF Description 061700 ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating M 85
Less than truck load rating J 100.2
Water commodity Code 738 unknown
Originating Activity Code TK HQ AFMC/GLSC 401 SCM/GUMB
Wright-Patterson AFB, OH 45433-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity H Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling Q Extremely fragile items including delicate instruments.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 6625-01-449-8018

Category Code Description
Price ValidationE The current standard price is an estimated price.
  • Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual.
  • This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Materiel Management Aggregation CodeRHTG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC)
Budget CodeY variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly.
Source of SupplyFLZWarner Robins Air Logistics Center
Robins AFB, GA 31098-5609
AgencyDFDepartment of the Air Force
Service OrganizationLLead Service - 22 (Repairable)
ReparabilitySAF Equipment Management System (AFEMS)
Acquisition Advice CodesVTERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
