NSN 6625-01-389-3546 TS4317, TS-4317 , TS43171
Product Details | RADIO TEST SET
6625-01-389-3546 A test set primarily designed for use in making examinations of radio equipment. See also TEST SET, ELECTRON TUBE; MULTIMETER; OSCILLOSCOPE; GENERATOR, SIGNAL; and TEST SET, AMPLIFIER.
Part Alternates: TS4317, TS-4317 , TS43171, TS-4317-1, 90017802200, 9001-7802-200, 6625-01-389-3546, 01-389-3546, 6625013893546, 013893546
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 APR 1994 | 01-389-3546 | 03662 ( TEST SET, RADIO ) |

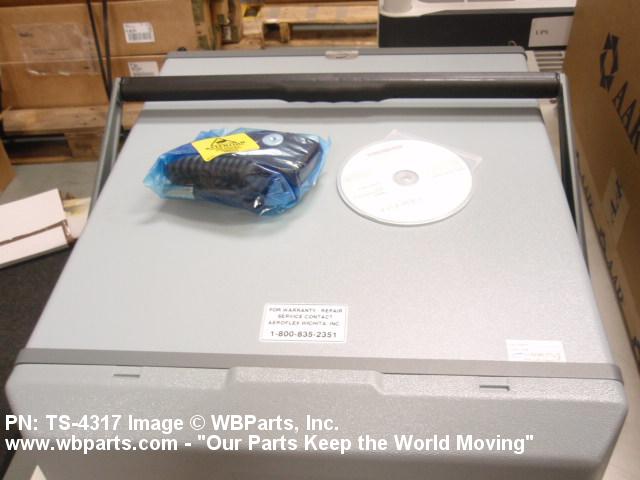

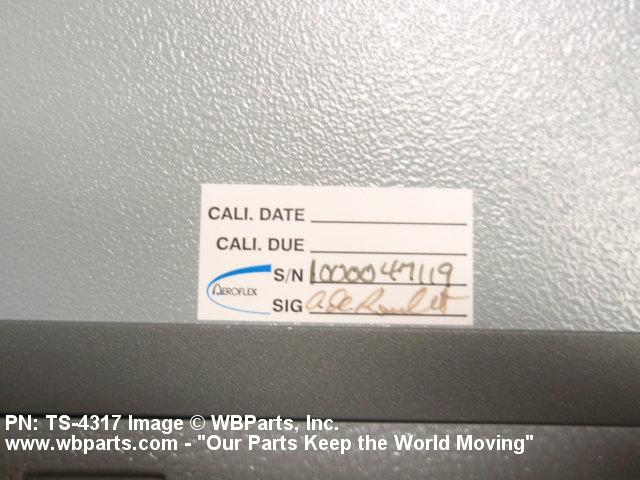

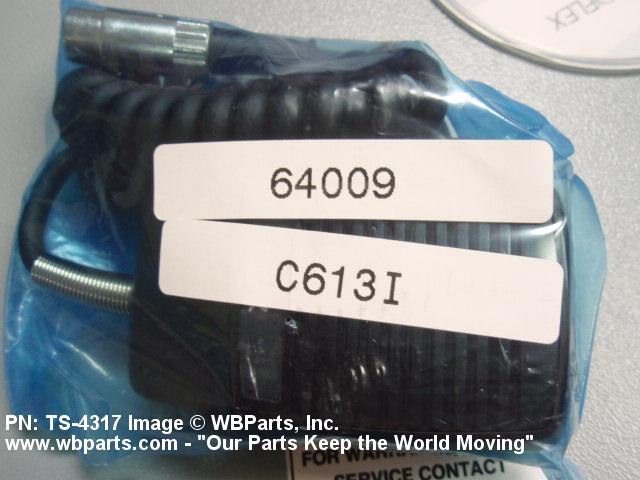

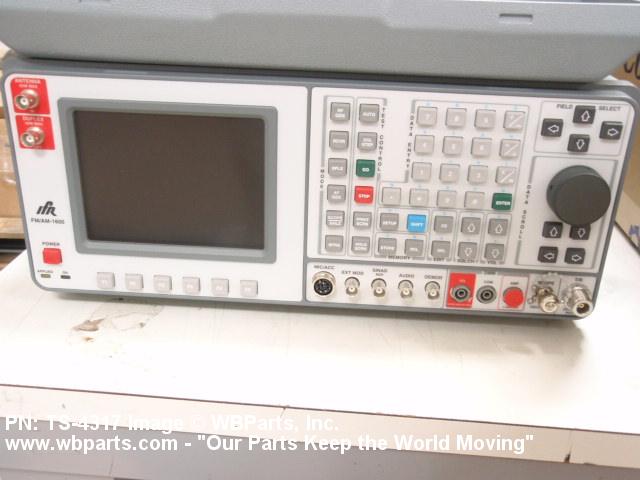

Drawings & Photos | NSN 6625-01-389-3546
Demand History | NSN 6625-01-389-3546
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-389-3546 | 2023-04-110 | 2 | US |
| 6625-01-389-3546 | 2022-10-285 | 2 | US |
| TS43171 | 2018-11-325 | 2 | TW |
| 6625-01-389-3546 | 2013-07-203 | 1 | Taiwan |
| 6625-01-389-3546 | 2012-05-150 | 1 | DE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-389-3546
Related Products | NSN 6625-01-389-3546
Technical Data | NSN 6625-01-389-3546
| Characteristic | Specifications |
|---|---|
| TEST TYPE FOR WHICH DESIGNED | FREQUENCY HOPPING RADIOS AND PROVIDES RADIO MAINTENANCE |
| INCLOSURE FEATURE | MULTIPLE ITEM W/HOUSING |
| III END ITEM IDENTIFICATION | PART OF AN/ARM-204, 6625-01-454-4611 |
| III FUNCTIONAL DESCRIPTION | TESTS AND REPAIRS GROUND AND AIRBORNE COMMUNICATION SYSTEMS INCLUDING AN/ARC 164, AN/ARC 186, AND AN/ARC 190 RADIOS |
| MANUFACTURERS CODE | 51190 |
| DESIGN CONTROL REFERENCE | TS-4317-1 |
Restrictions/Controls & Freight Information | NSN 6625-01-389-3546
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 738 | unknown |
| Originating Activity Code | TU | AF Cataloging Agent DLIS-K Battle Creek, MI 49037-3094 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6625-01-389-3546
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Price Validation | V | The current standard price has been validated.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | S | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
