NSN 6625-01-319-8960 SIM31200, 01-319-8960, 013198960

6625-01-319-8960 A test set primarily designed for use in making examinations of a data converter.

Part Alternates: SIM31200, 6625-01-319-8960, 01-319-8960, 6625013198960, 013198960

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	16 MAY 1990	01-319-8960	03673 ( TEST SET, SIGNAL DATA CONVERTER )

Part Number	Request Date	QTY	Origin
6625-01-319-8960	2015-11-317	1	United States
SIM31200	2012-02-34	1	IN
6625-01-319-8960	2010-06-166	10	US
6625-01-319-8960	2010-01-21	1	United States
SIM31200	2010-01-06	1	Singapore
6625-01-319-8960	2009-02-36	1	United States
6625-01-319-8960	2006-08-235	1	US

Part Number	Cage Code	Manufacturer
SIM31200	19645	DATA DEVICE CORPORATION

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 6625-01-319-8960

Compare

6625-01-319-9490, 6625-01-319-9569, 6625-01-319-9633, 6625-01-319-9639, 6625-01-319-9657

Characteristic	Specifications

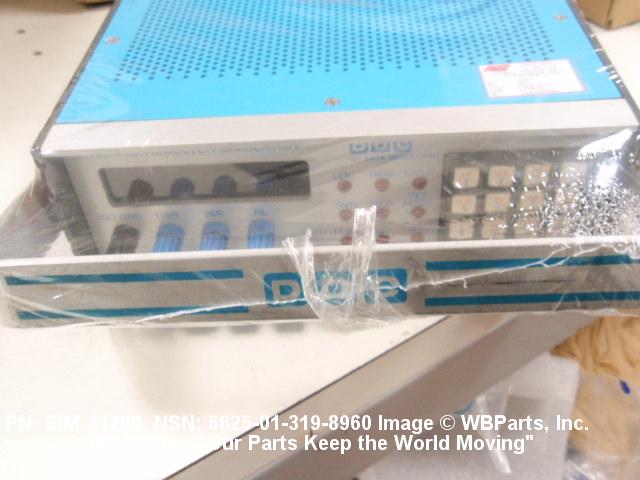

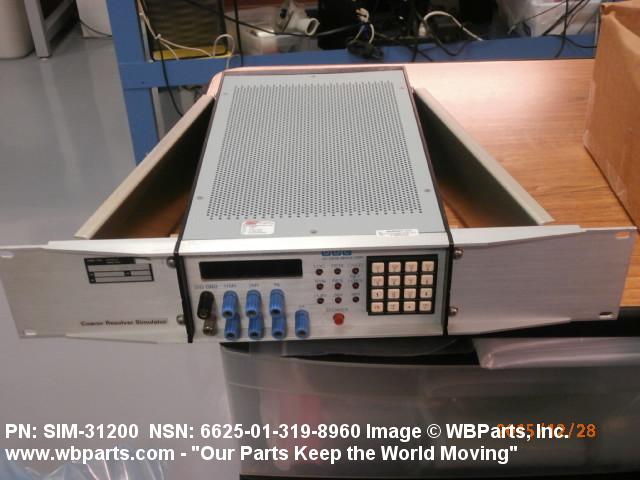

TEST TYPE FOR WHICH DESIGNED	HIGH QUALITY SYNCHRO AND RESOLVER SIMULATOR; FOR TESTING NAVIGATION EQUIPMENT, ANTENNA POSITION AND CALIBRATION SYSTEMS

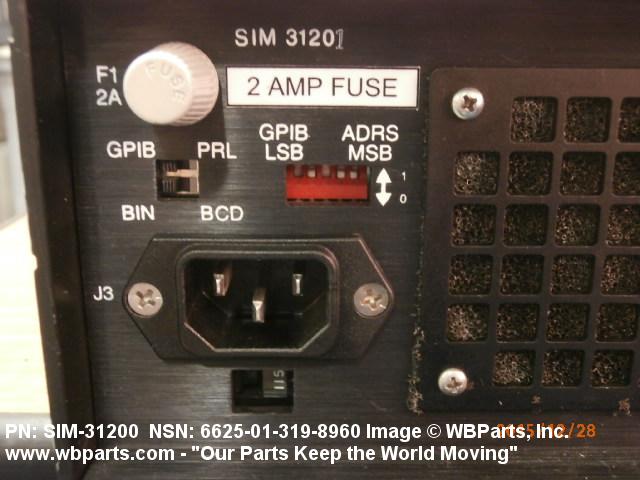

ELECTRICAL POWER SOURCE RELATIONSHIP	ALTERNATE OPERATING
AC VOLTAGE RATING	115.0 VOLTS MINIMUM AND 230.0 VOLTS MAXIMUM
FREQUENCY RATING	400.0 HERTZ NOMINAL
PHASE	SINGLE
INCLOSURE FEATURE	SINGLE ITEM W/HOUSING
HEIGHT	3.470 INCHES NOMINAL
LENGTH	14.500 INCHES NOMINAL
WIDTH	8.120 INCHES NOMINAL

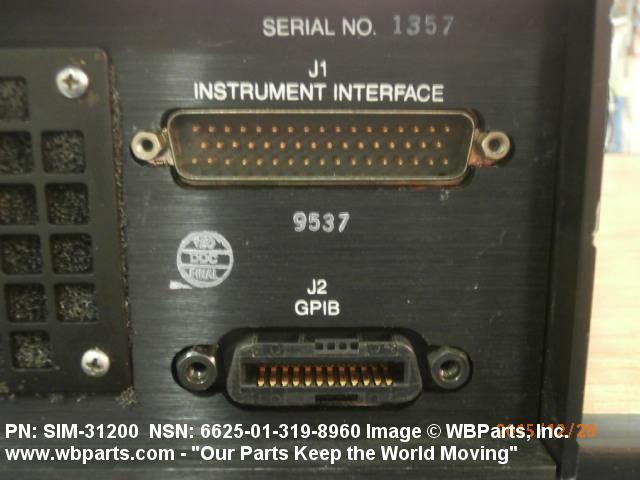

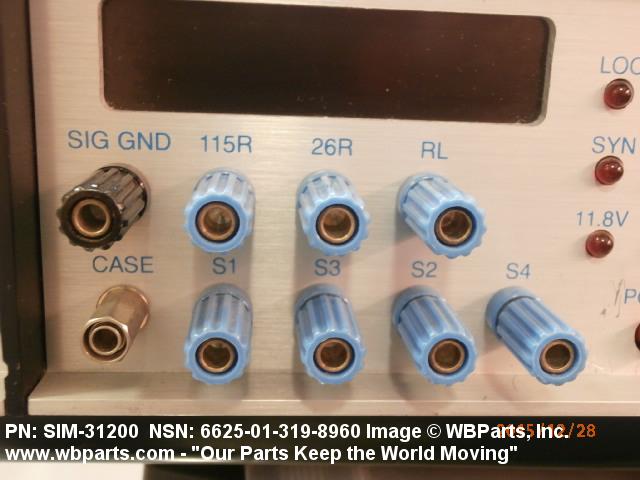

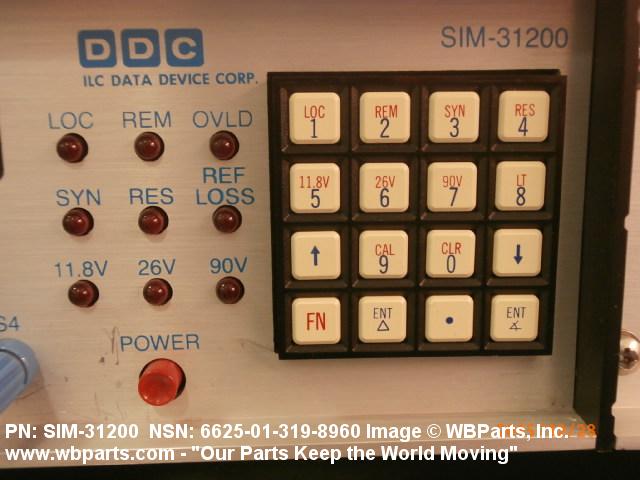

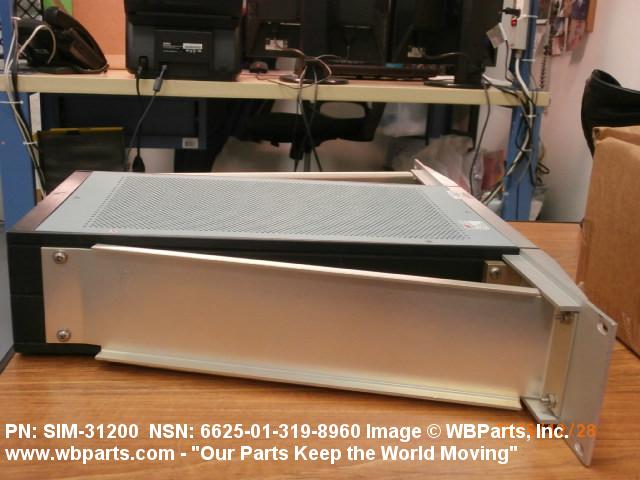

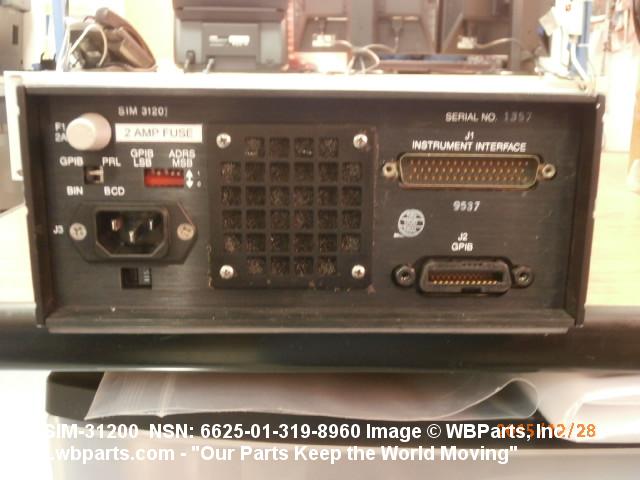

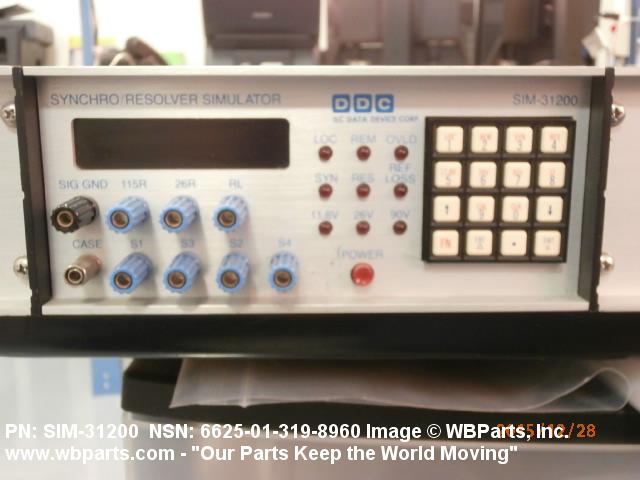

SPECIAL FEATURES	5 VA DRIVE CAPABILITY; ACCURACY +- .003 DEG NO LOAD, +/- .008 DEG FULL LOAD; PROGRAMMABLE OUTPUT STANDARD SYNCHRO AND RESOLVER LEVELS; OVERLOAD PROTECTED; DISPLAY 6 DIGIT 7 SEGMENT LED;STANDARD BENCH TOP UNIT WITH FRONT PANEL CONTROLS AND A PARALLEL DIGITAL OUTPUT AT THE REAR FOR REMOTE OPERATION; 16 PAD KEYBOARD; POWER ON/OFF SWITCH
III END ITEM IDENTIFICATION	PAVE LOW III ENS NAVIGATION SYSTEM
III FUNCTIONAL DESCRIPTION	USED TO SIMULATE ACFT INPUTS TO UUT DURING FAULT ISOLATION AND FUNCTIONAL VERIFICATION AT DEPOT

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	B	Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.)
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	P	77.5
Less than truck load rating	J	100.2
Water commodity Code	72D	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Category	Code	Description
Budget Code	A	1257X3010:Common Aircraft Ground Support Equipment
Price Validation	P	The current standard price is the initial negotiated provisioned price. This is the price paid by DoD for the item as the result of price negotiation of the Provisioned Item Order (PIO) or other initial negotiated price. ZOP or Standard Price challenges are permissible but should be supported with adequate justification.
Materiel Management Aggregation Code	SO	TG:SPECIAL OPERATIONAL FORCES (SOF) PECULIAR
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	S	AF Equipment Management System (AFEMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
