Product Details | SPECIAL SCALE METER
6625-01-282-3947 An electrically operated instrument which has a custom scale or digital readout display, but the unit of measurement given is not covered by a more specific item name. For items without a specified unit of measurement, see METER, ARBITRARY SCALE.
Part Alternates: S08793, 6625-01-282-3947, 01-282-3947, 6625012823947, 012823947
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 14 JUL 1988 | 01-282-3947 | 61955 ( METER, SPECIAL SCALE ) |
Drawings & Photos | NSN 6625-01-282-3947
Cross Reference | NSN 6625-01-282-3947
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| S08793 | 15605 | EATON CORP OPNS & TECHNICAL CENTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-282-3947
Related Products | NSN 6625-01-282-3947
Technical Data | NSN 6625-01-282-3947
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| INDICATOR TYPE | DIAL W/POINTER |
| SCALE MARKING | RPM |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT 1/2 SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 7 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG AND 2 THREADED STUD |
| SENSITIVITY RATING | 2000.0 OHMS PER VOLT |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |

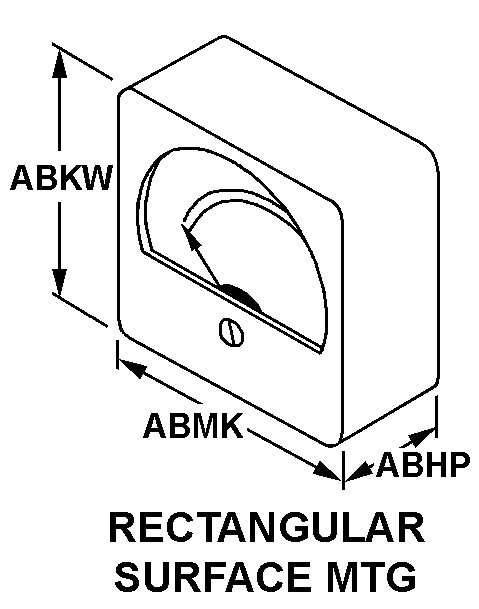

| STYLE DESIGNATOR | A3 RECTANGULAR SURFACE MTG |
| OVERALL HEIGHT | 4.200 INCHES NOMINAL |
| OVERALL LENGTH | 2.300 INCHES NOMINAL |
| OVERALL WIDTH | 4.660 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| FURNISHED ITEMS AND QUANTITY | TWO 6 VOLT LAMPS |
| SPECIAL FEATURES | REAR ILLUMINATION |
| III END ITEM IDENTIFICATION | MPCMS |
