NSN 6625-01-260-2936 AN/ASM-695, ANASM695, 8520700101

Product Details | MEMORY LOADER VERIFIER

6625-01-260-2936

Part Alternates: AN/ASM-695, ANASM695, 8520700101, 8520700-101, 1374AA1001, 6625-01-260-2936, 01-260-2936, 6625012602936, 012602936

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	29 JUL 1987	01-260-2936	77777 ( )

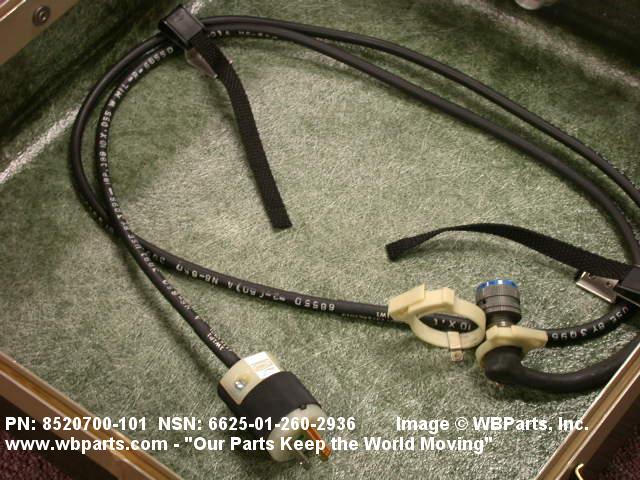

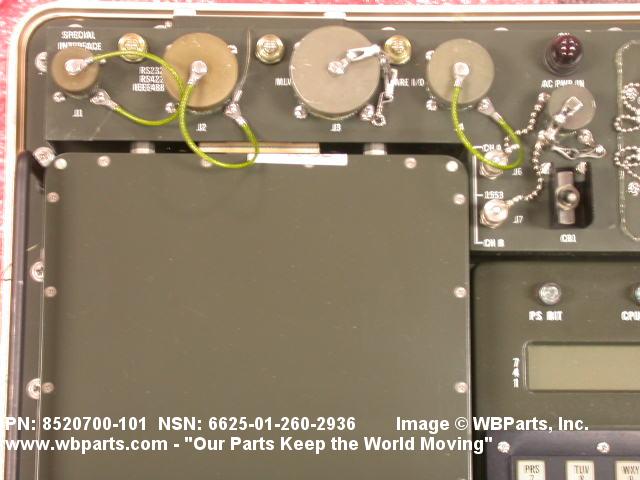

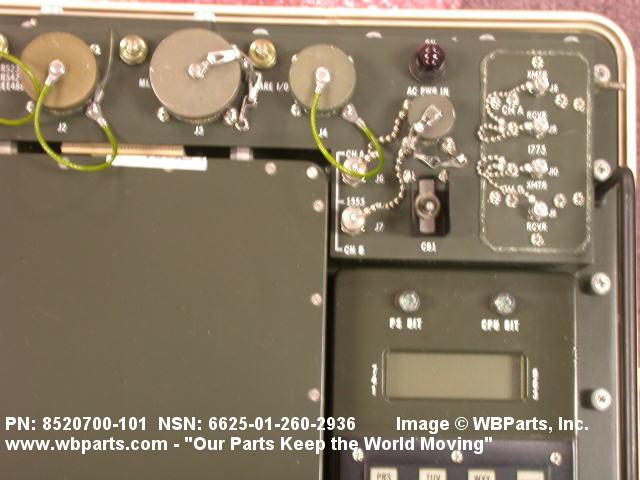

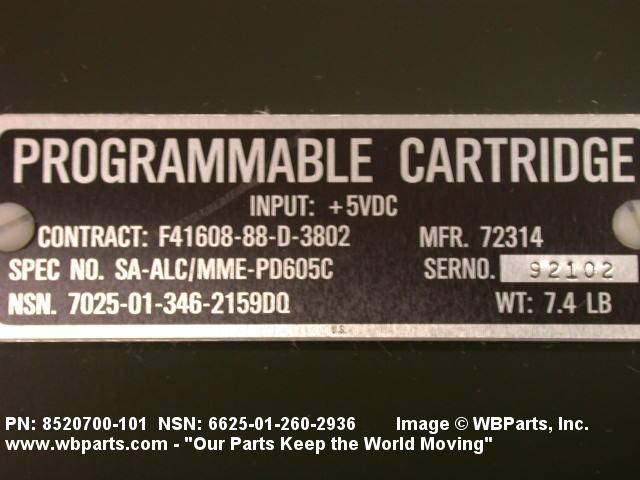

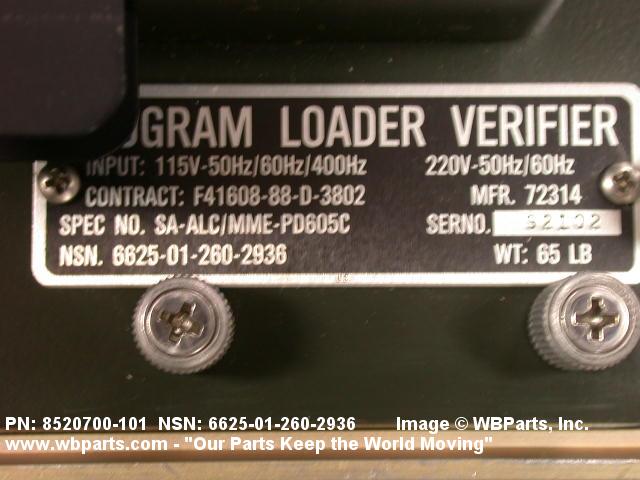

Drawings & Photos | NSN 6625-01-260-2936

Part Number	Request Date	QTY	Origin
1374AA1001	2009-05-126	3	Canada
ANASM695	2008-01-08	1	US
8520700101	2007-06-165	2	United States
6625-01-260-2936	2007-06-159	2	United States
8520700101	2007-06-159	2	United States
8520700101	2007-05-150	1	US

Cross Reference | NSN 6625-01-260-2936

Part Number	Cage Code	Manufacturer
1374AA1001	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
8520700-101	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
8520700-101	98750	SAN ANTONIO AIR LOGISTICS CENTER
8520700-101	98752	WARNER ROBINS AIR LOGISTICS CENTER
AN/ASM-695	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-260-2936

Compare

Related Products | NSN 6625-01-260-2936

6625-01-260-2971, 6625-01-260-2972, 6625-01-260-2986, 6625-01-260-2990, 6625-01-260-3046

Technical Data | NSN 6625-01-260-2936

Characteristic	Specifications
GENERAL CHARACTERISTICS ITEM DESCRIPTION	22 INCH L BY 15 INCH W BY 15 INCH H; 115.0 VAC,50 TO 400 HZ; INTERFACE TO EW AND AVIONICS 1553B,1773,RS422A,HSOB,RS232C,IEE E 488 AND AN/ASM 660 COMPATIBLE; USED ON F-111,F15,F16,C130,HH53,HARM MISSLE,F4,A7,HH60
III TYPE/MODEL DESIGNATION	AN/ASM-695 PLV
III REFERENCE DATA AND LITERATURE	33DA112-16-1
MANUFACTURERS CODE	72314
DESIGN CONTROL REFERENCE	1374AA1001

Restrictions/Controls & Freight Information | NSN 6625-01-260-2936

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating	P	77.5
Less than truck load rating	J	100.2
Water commodity Code	738	unknown
Originating Activity Code	SE	San Antonio Air Logistics Center Kelly AFB, TX 78241-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Q	Extremely fragile items including delicate instruments.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	3	Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices).

Management | NSN 6625-01-260-2936

Air Force

Category	Code	Description
Budget Code	A	1257X3010:Common Aircraft Ground Support Equipment
Materiel Management Aggregation Code	KV	TG:AUTOMATIC TEST EQUIPMENT (ATE)
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Source of Supply	FLZ	Warner Robins Air Logistics Center Robins AFB, GA 31098-5609
Agency	DF	Department of the Air Force
Service Organization	L	Lead Service - 22 (Repairable)
Reparability	S	AF Equipment Management System (AFEMS)
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
