NSN 6625-01-259-0857 AN2570/20VDC/X/1/M, AN25701X1M, AN2570-1-X-1-M
Product Details | VOLTMETER
6625-01-259-0857 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: AN2570/20VDC/X/1/M, AN25701X1M, AN2570-1-X-1-M, AN257020VDCX1M, AN25M00EM1XX10, 768832922001, 7688-32922-001, 8998W29101, 8998W29-101, 6625-01-259-0857, 01-259-0857, 6625012590857, 012590857
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 JUL 1987 | 01-259-0857 | 16449 ( VOLTMETER ) |

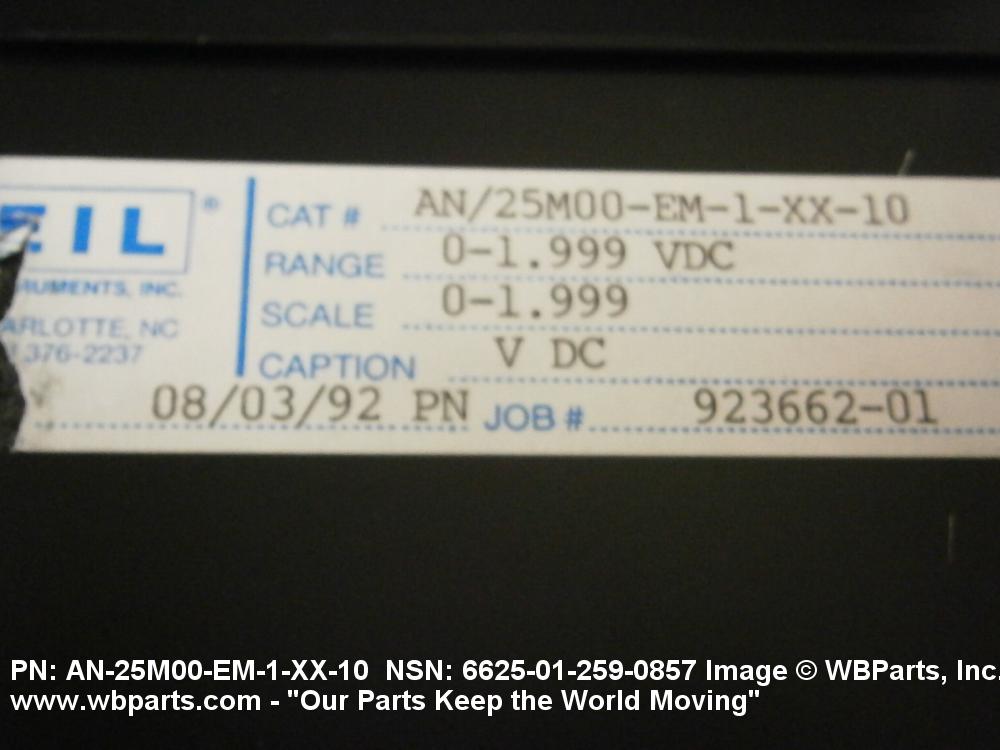

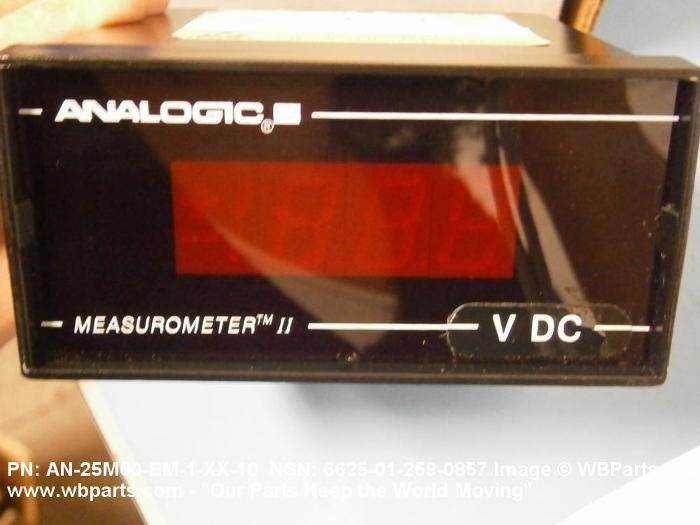

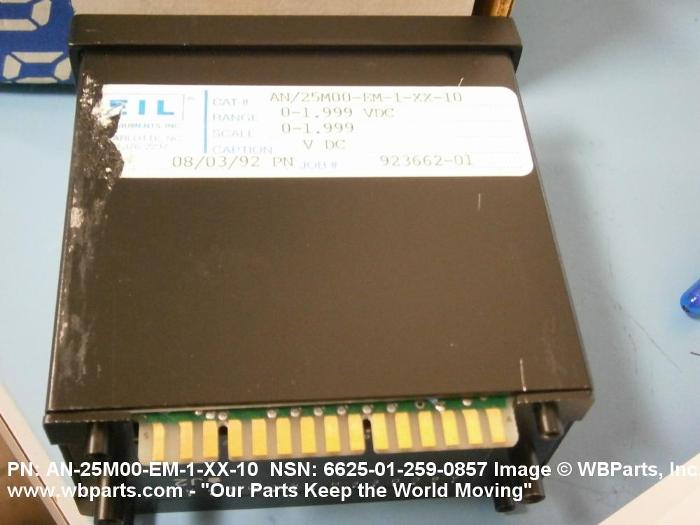

Drawings & Photos | NSN 6625-01-259-0857
Demand History | NSN 6625-01-259-0857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-259-0857 | 2011-09-263 | 1 | United States |
| 6625-01-259-0857 | 2007-11-318 | 4 | DIBBS |
| AN25701X1M | 2007-02-39 | 5 | US |
Cross Reference | NSN 6625-01-259-0857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7688-32922-001 | 14170 | HUGHES MISSILE SYSTEMS CO SAN DIEGO |
| 7688-32922-001 | 15090 | RAYTHEON COMPANY DBA RAYTHEON |
| 8998W29-101 | 97424 | AMETEK, INC. DIV AEROSPACE & DEFENSE |
| AN2570-1-X-1-M | 31814 | ANALOGIC CORP DATA CONVERSION PRODUCTS DIV |
| AN2570/20VDC/X/1/M | 31814 | ANALOGIC CORP DATA CONVERSION PRODUCTS DIV |
| AN25M00EM1XX10 | 31814 | ANALOGIC CORP DATA CONVERSION PRODUCTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-259-0857
Related Products | NSN 6625-01-259-0857
Technical Data | NSN 6625-01-259-0857
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | ELECTRONIC, SOLID STATE |
| INDICATOR TYPE | DIGITAL DISPLAY |
| DISPLAY TYPE | LIGHT EMITTING DIODE |
| DISPLAY DIGIT QUANTITY | 3-1/2 |
| MEASUREMENT RANGE | -1.999 TO 1.999 VOLTS SINGLE INDICATOR SINGLE RANGE |
| ACCURACY RATING | PORM 0.05 PCT OF READING PORM 1 COUNT SINGLE INDICATOR SINGLE RANGE |
| DISPLAY COLOR | RED SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 1 PRINTED CIRCUIT |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 300.0 |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| OPERATING VOLTAGE RATING IN VOLTS | 110.0 AC NOMINAL |
| FREQUENCY RATING | 47.0 HERTZ MINIMUM AND 500.0 HERTZ MAXIMUM |
| PHASE | THREE |
| STYLE DESIGNATOR | C5 RECTANGULAR FLUSH MTG |
| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 1.722 INCHES MAXIMUM |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 3.622 INCHES MAXIMUM |
| METER DEPTH BEHIND MOUNTING FLANGE | 3.630 INCHES NOMINAL |
| OVERALL HEIGHT | 1.890 INCHES NOMINAL |
| OVERALL LENGTH | 4.130 INCHES NOMINAL |
| OVERALL WIDTH | 3.790 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 CLAMP |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| ENVIRONMENTAL PROTECTION | SHOCK RESISTANT AND VIBRATION RESISTANT |
| FEATURES PROVIDED | ELECTRICAL OVERLOAD PROTECTION AND OVERRANGING |
| SPECIAL FEATURES | AUTOMATIC ZERO ADJUST |
| III SUPPLEMENTARY FEATURES | EXPANDABLE TO INCLUDE BCD O/P |
Restrictions/Controls & Freight Information | NSN 6625-01-259-0857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-259-0857
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
