NSN 6625-01-235-6875 BHGD37T-24-W/BLK-S701, BHGD37T24WBLKS701, BHGD37TS676
Product Details | FAULT LOCATING INDICATOR
6625-01-235-6875 An electrically activated item specifically designed to indicate the occurrence of a malfunction in a component of an electronic set, central or system. It may indicate the malfunction by a pop-out button (e.g. ground fault interrupt outlets) or color change by emitted light or displayed in a window. The indicator may utilize a "push to test" button. It does not make quantitative or qualitative tests such a provided by test sets.
Part Alternates: BHGD37T-24-W/BLK-S701, BHGD37T24WBLKS701, BHGD37TS676, BHGD37T-S676, BHGD37TS701, BHGD37T-S701, C117782, C11778-2, 6625-01-235-6875, 01-235-6875, 6625012356875, 012356875
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 04 JUL 1986 | 01-235-6875 | 60639 ( INDICATOR, FAULT LOCATING ) |

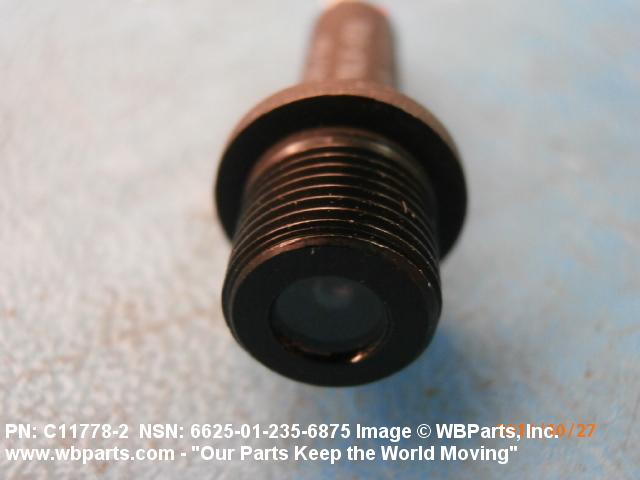

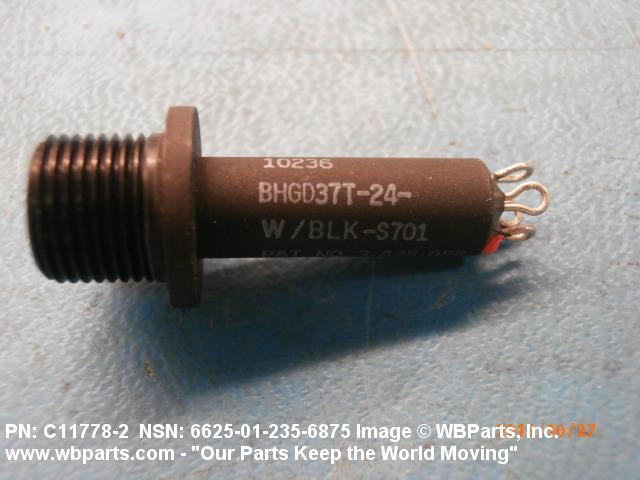

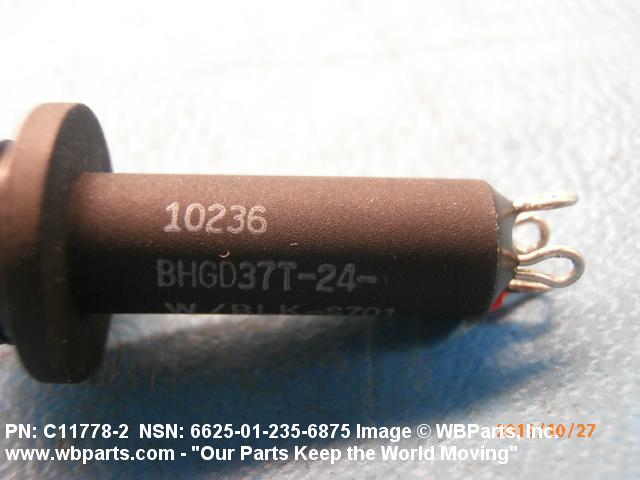

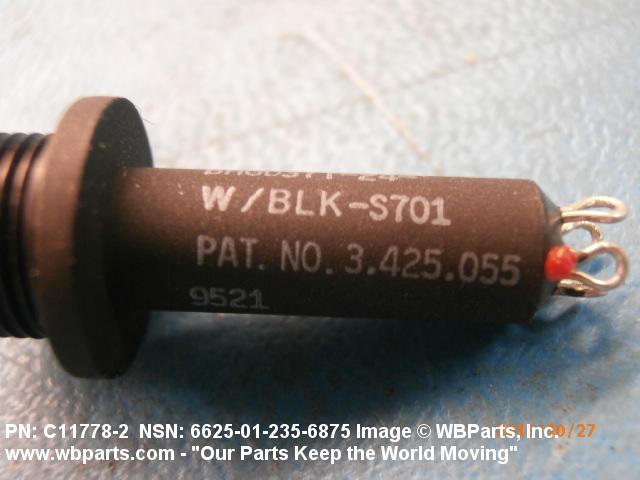

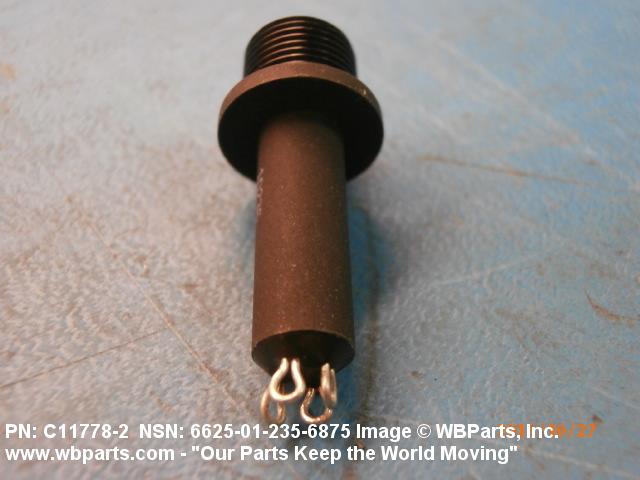

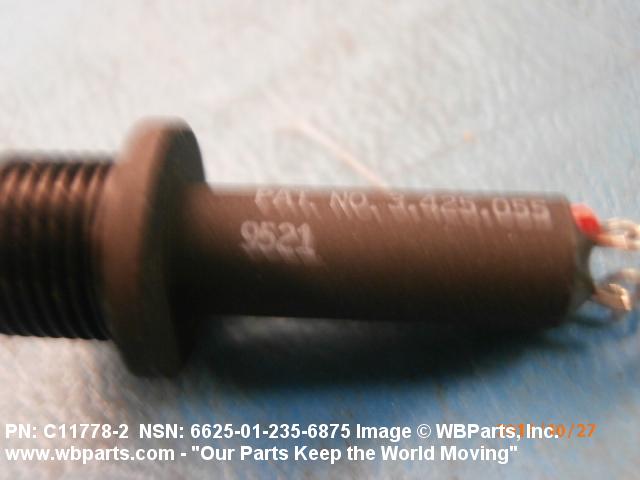

Drawings & Photos | NSN 6625-01-235-6875
Demand History | NSN 6625-01-235-6875
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| BHGD37T-24-W/BLK-S701 | 2024-01-23 | 22 | DIBBS |
| BHGD37T-24-W/BLK-S701 | 2024-01-18 | 40 | DIBBS |
| BHGD37T-24-W/BLK-S701 | 2022-12-363 | 22 | DIBBS |
| BHGD37T-24-W/BLK-S701 | 2022-10-293 | 8 | DIBBS |
| BHGD37T-24-W/BLK-S701 | 2022-01-09 | 8 | DIBBS |
| BHGD37T-24-W/BLK-S701 | 2021-08-216 | 9 | DIBBS |
| 6625-01-235-6875 | 2018-11-329 | 39 | DIBBS |
| 6625-01-235-6875 | 2017-03-64 | 31 | DIBBS |
| 6625-01-235-6875 | 2017-02-43 | 27 | DIBBS |
| 6625-01-235-6875 | 2016-06-160 | 24 | DIBBS |
| 6625-01-235-6875 | 2016-05-147 | 24 | DIBBS |
| 6625-01-235-6875 | 2015-10-293 | 2 | United States |
| 6625-01-235-6875 | 2014-04-98 | 29 | DIBBS |
| 6625-01-235-6875 | 2013-01-23 | 15 | DIBBS |
| 6625-01-235-6875 | 2009-01-20 | 33 | DIBBS |
| 6625-01-235-6875 | 2008-11-316 | 55 | DIBBS |
| 6625-01-235-6875 | 2008-08-224 | 13 | DIBBS |
| 6625-01-235-6875 | 2008-06-155 | 16 | DIBBS |
| 6625-01-235-6875 | 2007-05-129 | 12 | DIBBS |
| 6625-01-235-6875 | 2005-12-348 | 14 | DIBBS |
Cross Reference | NSN 6625-01-235-6875
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BHGD37T-24-W/BLK-S701 | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| BHGD37T-S676 | 07479 | MINELCO INC SUB OF TALLEY INDUSTRIES INC |
| BHGD37T-S701 | 10236 | ELECTRODYNAMICS, INC. DBA L-3 COMMUNICATIONS |
| C11778-2 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-235-6875
Related Products | NSN 6625-01-235-6875
Technical Data | NSN 6625-01-235-6875
| Characteristic | Specifications |
|---|---|
| CASE MATERIAL | ALUMINUM ALLOY |
| ELECTRICAL CONNECTION QUANTITY | 4 |
| PRESENTATION TYPE | WINDOW |
| MARKING COLOR SPECIFIC USE | FAULT-NO FAULT |
| COLOR | BLACK BACKGROUND OVERALL WHITE MARKER STRIPES |
| CURRENT TYPE | DC |
| DC VOLTAGE RATING | 28.0 VOLTS NOMINAL |
| COIL DC RESISTANCE | 880.0 OHMS NOMINAL |
| CONTACT QUANTITY | 4 |

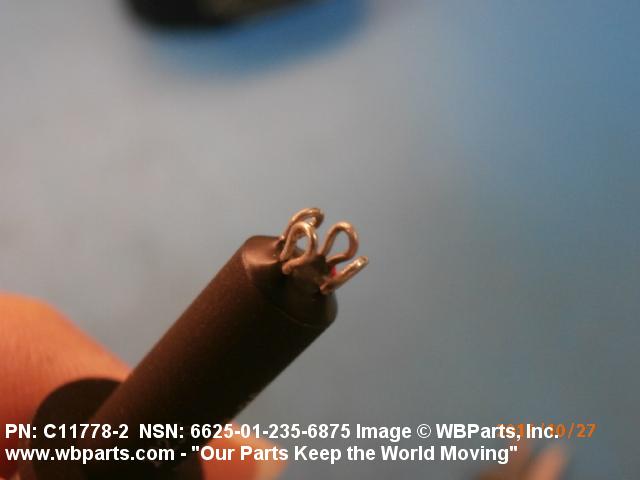

| CONTACT TYPE | WIRE HOOK |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED CASE |

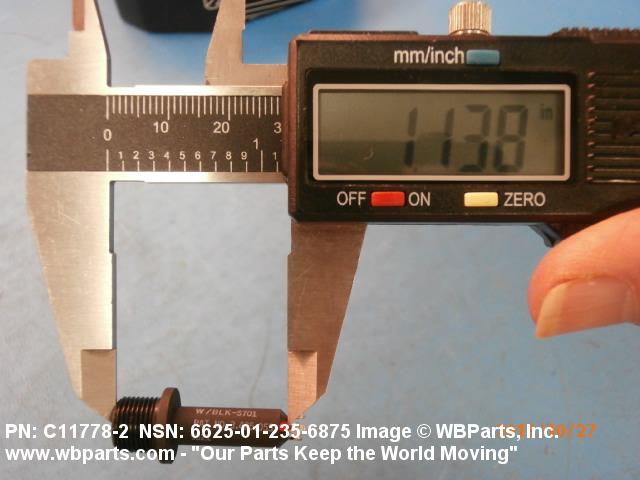

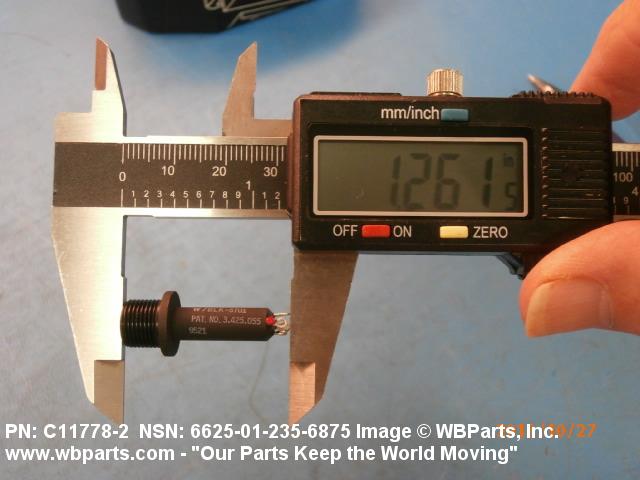

| LENGTH | 1.250 INCHES NOMINAL |

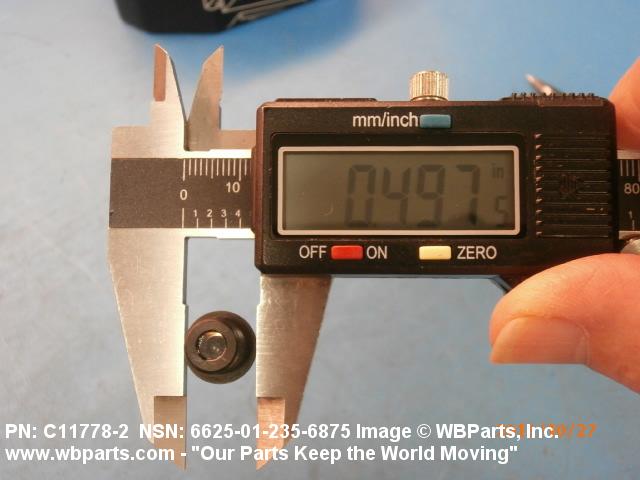

| DIAMETER | 0.500 INCHES NOMINAL |
| FEATURES PROVIDED | COIL AND MOUNTING HARDWARE |
| SPECIAL FEATURES | VIBRATION,ALTITUDE,SHOCK,HUMIDITY AND SALT SPRAY RESISTANCE PER MIL-STD-202 |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
| III SUPPLEMENTARY FEATURES | ANODIZED FINISH |
Restrictions/Controls & Freight Information | NSN 6625-01-235-6875
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-235-6875
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
