Product Details | VOLTMETER

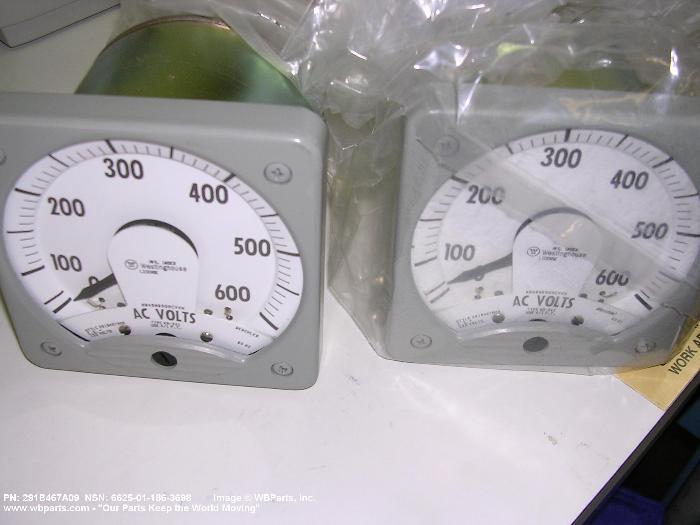

6625-01-186-3698 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: S291B467A09, 291B467A09, 50104023PZSJ1AAC, 50-104023PZSJ1AAC, 6625-01-186-3698, 01-186-3698, 6625011863698, 011863698
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 10 AUG 1984 | 01-186-3698 | 16449 ( VOLTMETER ) |

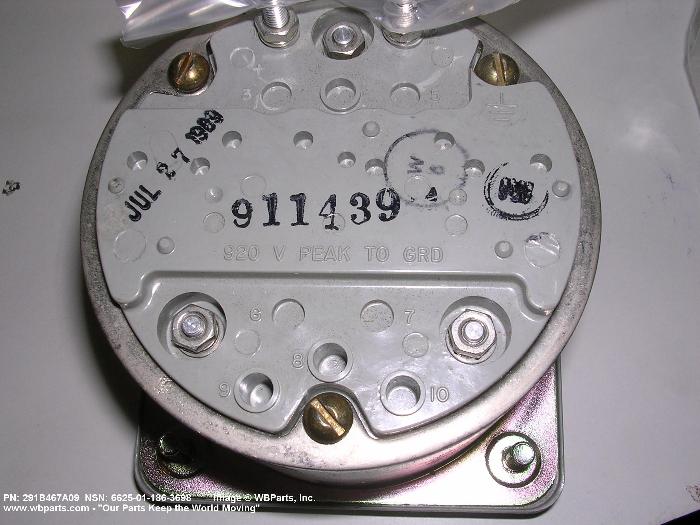

Drawings & Photos | NSN 6625-01-186-3698
Demand History | NSN 6625-01-186-3698
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 291B467A09 | 2023-12-341 | 4 | DIBBS |
| 291B467A09 | 2023-11-327 | 1 | DIBBS |
| 6625-01-186-3698 | 2016-05-129 | 3 | DIBBS |
| 6625-01-186-3698 | 2013-08-226 | 1 | DIBBS |
| 6625-01-186-3698 | 2007-10-282 | 1 | United States |
Cross Reference | NSN 6625-01-186-3698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 291B467A09 | 6Z382 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| 291B467A09 | 88416 | HUGHES CORPORATION DBA WESCHLER INSTRUMENTS |
| 291B467A09 | 89946 | EATON CORPORATION |
| 50-104023PZSJ1AAC | 03497 | GENERAL ELECTRIC CO OUTDOOR BREAKER BUSINESS SECTION |
| S291B467A09 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
