NSN 6625-01-184-5216 291B466A19, 291B466A20, 496057
Product Details | AMMETER
6625-01-184-5216 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: 291B466A19, 291B466A20, 496057, 496-057, 6625-01-184-5216, 01-184-5216, 6625011845216, 011845216
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 18 JUL 1984 | 01-184-5216 | 16450 ( AMMETER ) |
Drawings & Photos | NSN 6625-01-184-5216
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-184-5216
Related Products | NSN 6625-01-184-5216
Technical Data | NSN 6625-01-184-5216
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC |
| (NON-CORE DATA) CIRCUIT CONSTRUCTION TYPE | NONELECTRONIC |
| INDICATOR TYPE | DIAL W/POINTER |
| MEASUREMENT RANGE | 0.0 TO 150.0 AMPERES, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -1.5 TO 1.5 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | LINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 5 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | TAUT BAND |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 THREADED STUD |
| POWER SOURCE | EXTERNAL |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |

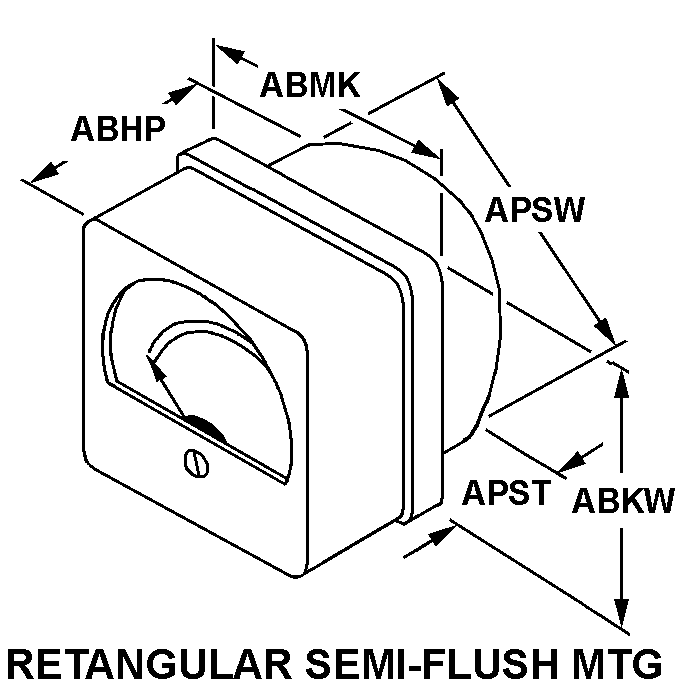

| STYLE DESIGNATOR | B4 RECTANGULAR SEMI-FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 3.980 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 10.000 INCHES NOMINAL |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| OVERALL LENGTH | 11.000 INCHES NOMINAL |
| OVERALL WIDTH | 4.750 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 4 THREADED STUD |
| MOUNTING STUD DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING STUD LENGTH | 0.750 INCHES NOMINAL |
| MOUNTING ARRANGEMENT STYLE | E3 FOUR HOLE/STUD RECTANGULAR/SQUARE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 3.376 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.376 INCHES NOMINAL |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| FEATURES PROVIDED | ZERO ADJUSTER |
| SPECIAL FEATURES | UNPACKAGED UNIT WGHT 4 LBS; CUBIC MEASURE 216.0 CUBIC IN. |
| III FSC APPLICATION DATA | TEST SET,ELECT. EQUIP. |
