NSN 6625-01-135-0345 10-397599-3, 01-135-0345, 103975993
Product Details | SPARK GAP
6625-01-135-0345 An item designed to act as a switching or triggering device by means of a disruptive discharge of electricity (a spark) between the electrodes. The insulation (usually air) between the electrodes is self-restoring after passage of the spark. For spark gaps used as a protective device, see ARRESTER, ELECTRICAL SURGE. For items with additional circuitry which perform complete modulation functions, see MODULATOR, RADAR.20259850043Antennas, Waveguides, and Related Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: 10-397599-3, 6625-01-135-0345, 01-135-0345, 6625011350345, 103975993, 011350345
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 16 JUL 1982 | 01-135-0345 | 00171 ( SPARK GAP ) |

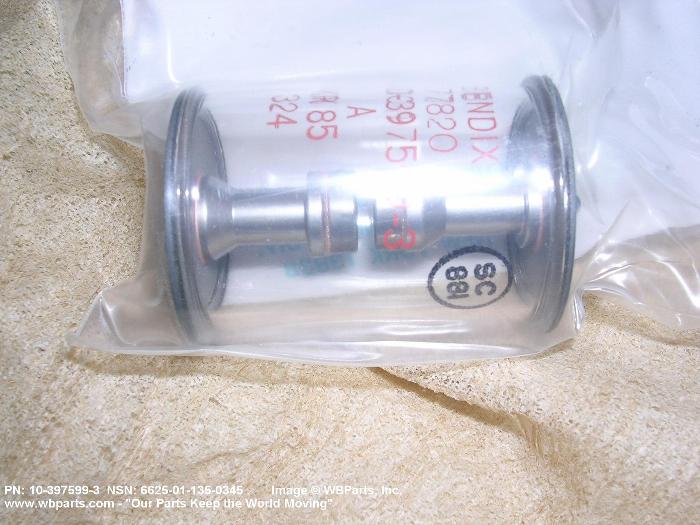

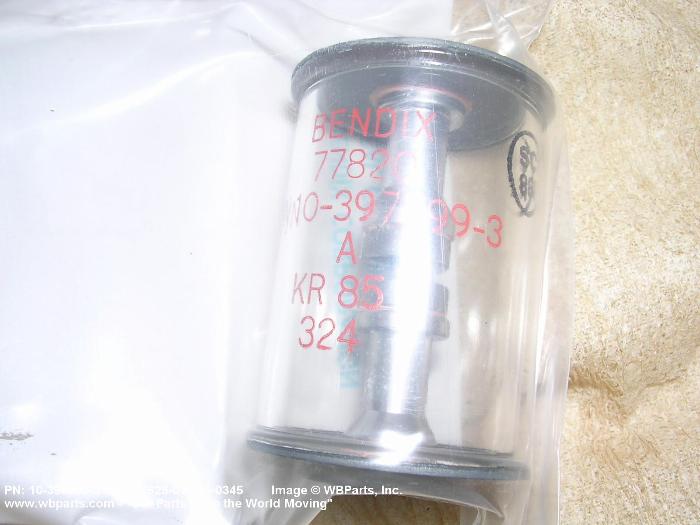

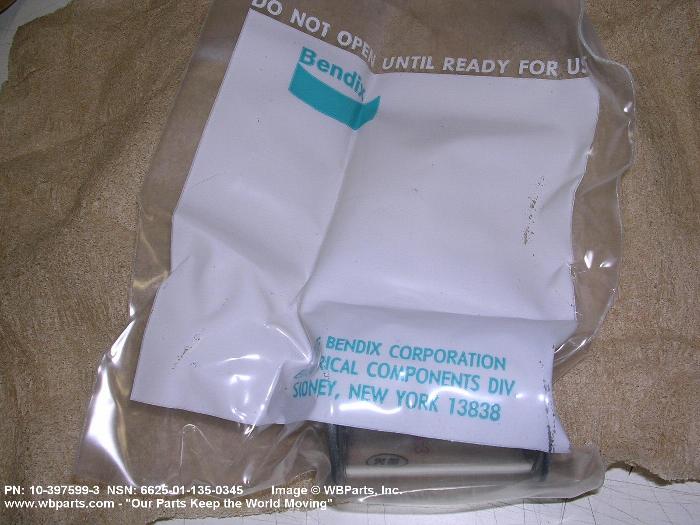

Drawings & Photos | NSN 6625-01-135-0345
Demand History | NSN 6625-01-135-0345
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-135-0345 | 2013-04-98 | 3 | DIBBS |
| 6625-01-135-0345 | 2012-11-314 | 2 | DIBBS |
| 6625-01-135-0345 | 2010-01-07 | 10 | DIBBS |
| 6625-01-135-0345 | 2009-02-46 | 10 | DIBBS |
| 6625-01-135-0345 | 2009-01-20 | 3 | DIBBS |
| 6625-01-135-0345 | 2008-09-250 | 2 | DIBBS |
| 6625-01-135-0345 | 2008-07-211 | 1 | US |
| 6625-01-135-0345 | 2008-04-96 | 3 | DIBBS |
| 6625-01-135-0345 | 2008-01-30 | 5 | United States |
| 6625-01-135-0345 | 2008-01-01 | 5 | DIBBS |
| 6625-01-135-0345 | 2007-10-287 | 5 | DIBBS |
| 6625-01-135-0345 | 2007-09-268 | 1 | DIBBS |
| 6625-01-135-0345 | 2006-07-193 | 15 | DIBBS |
| 6625-01-135-0345 | 2006-05-138 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-135-0345
Technical Data | NSN 6625-01-135-0345
| Characteristic | Specifications |
|---|---|
| GAP TYPE | NONROTARY |
| ADJUSTABILITY FEATURE | NOT INCLUDED |
| OVERALL DIAMETER | 1.162 INCHES NOMINAL |
| OVERALL LENGTH | 1.744 INCHES NOMINAL |
| SPECIAL FEATURES | CONTAINS KRYPTON 85,2900 TO 3200VOLTS DC,0.138-32 UNC-2B 0.250 MIN FULL THD BOTH ENDS |
| MANUFACTURERS CODE | 59501 |
| DESIGN CONTROL REFERENCE | 10-397599-3 |
Restrictions/Controls & Freight Information | NSN 6625-01-135-0345
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 6625-01-135-0345
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | PL | SX:GENERAL ELECTRIC JET ENGINES & COMPONENTS, J-47, J-73, J-79, J-93, T-58, T-64, CFM56 |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
