NSN 6625-01-122-5061 CB1S68, CB-1S-68, 01-122-5061
Product Details | ARBITRARY SCALE METER
6625-01-122-5061 An electrically operated instrument which has a marked scale or digital readout display, but the unit of measurement is not given. May indicate electrical or nonelectrical effects but is primarily not a current detecting device; therefore, excludes GALVANOMETER. For instruments whose unit of measurement is not covered by a more specific item, see METER, SPECIAL SCALE.
Part Alternates: CB1S68, CB-1S-68, 6625-01-122-5061, 01-122-5061, 6625011225061, 011225061
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 22 NOV 1981 | 01-122-5061 | 16476 ( METER, ARBITRARY SCALE ) |
Drawings & Photos | NSN 6625-01-122-5061
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-122-5061
Technical Data | NSN 6625-01-122-5061
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | NONMAGNETIC |
| INDICATOR TYPE | DIAL W/POINTER |
| SCALE MARKING | NO SCALE MARKING |
| ACCURACY IN PERCENT | -2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| SCALE GRADUATION TYPE | NONLINEAR SINGLE INDICATOR SINGLE RANGE |
| SCALE DIVISION QUANTITY | 2 SINGLE INDICATOR SINGLE RANGE |
| POINTER COLOR | RED SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | RED AND BLUE SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | SILVER SINGLE INDICATOR SINGLE RANGE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG |
| CIRCUIT CURRENT FOR WHICH DESIGNED | DC |

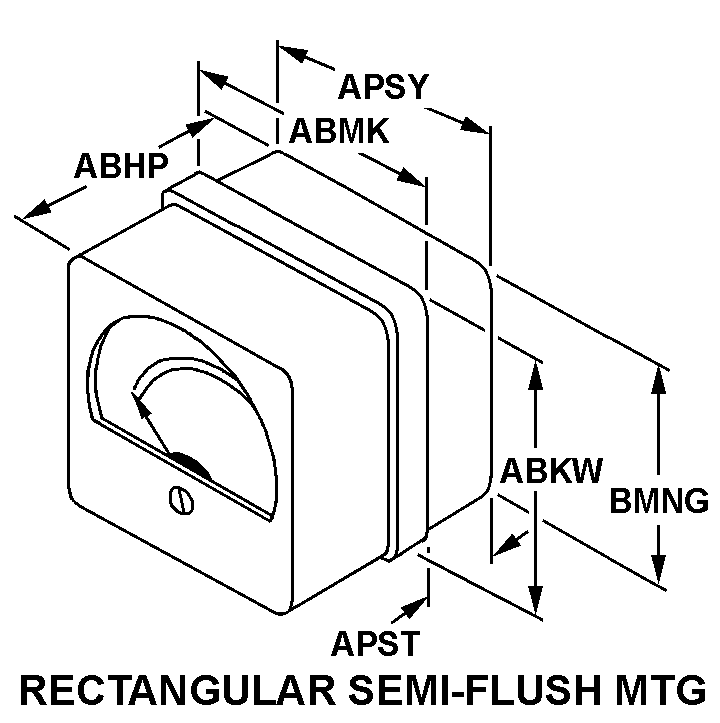

| STYLE DESIGNATOR | B5 RECTANGULAR SEMI-FLUSH MTG |
| METER BODY HEIGHT BEHIND MOUNTING FLANGE | 0.812 INCHES NOMINAL |
| METER BODY WIDTH BEHIND MOUNTING FLANGE | 0.875 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 0.844 INCHES NOMINAL |
| OVERALL HEIGHT | 0.812 INCHES NOMINAL |
| OVERALL LENGTH | 1.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.375 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.094 INCHES MINIMUM AND 0.156 INCHES MAXIMUM |
| MOUNTING ARRANGEMENT STYLE | E1 TWO HOLE/STUD |
| DISTANCE BETWEEN MOUNTING FACILITY CENTERS | 1.125 INCHES NOMINAL |
| MATERIAL | PLASTIC |
| NUCLEAR HARDNESS CRITICAL FEATURE | NONHARDENED |
| MANUFACTURERS CODE | 058R3 |
| DESIGN CONTROL REFERENCE | CB-1S-68 |
Restrictions/Controls & Freight Information | NSN 6625-01-122-5061
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 9 | To be assigned to an item containing embedded ADPE that meets one or more of the definitions for codes 1 through 6. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
