Product Details | TEST LEAD
6625-01-118-8695 A definite length of wire or cable with a CLIP (1), ELECTRICAL; CONNECTOR, PLUG, ELECTRICAL; CONNECTOR, RECEPTACLE, ELECTRICAL; JACK, TELEPHONE; PLUG, TELEPHONE; JACK, TIP; PLUG, TIP; or the like on one or both ends, and PROD, TEST on either end but not both ends. Active electronic components such as Capacitors, ELECTRON TUBE, Resistors, Semiconductor devices, and the like may be mounted into and included with LEAD, TEST for attenuation or amplification purposes. May or may not include accessories, such as CLIP (1), ELECTRICAL; TIP, TEST PROD; PROD, TEST; and TEST LEAD ATTACHMENT. For items consisting of more than one LEAD, TEST see LEAD SET, TEST. For items designed for direct attachment to a LEAD, TEST see PROD, TEST. For items designed for indirect attachment to a LEAD, TEST see TEST LEAD ATTACHMENT. For items not specifically designed for test purposes see LEAD, ELECTRICAL.
Part Alternates: 12301963, 6625-01-118-8695, 01-118-8695, 6625011188695, 011188695
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 13 SEP 1981 | 01-118-8695 | 08059 ( LEAD, TEST ) |
Drawings & Photos | NSN 6625-01-118-8695
Cross Reference | NSN 6625-01-118-8695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12301963 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-01-118-8695
Technical Data | NSN 6625-01-118-8695
| Characteristic | Specifications |
|---|---|
| CONDUCTOR FORM | STRANDED ALL CONDUCTORS |
| ROUND CONDUCTOR SIZE | 24 AWG ALL CONDUCTORS |
| STRAND QUANTITY PER CONDUCTOR | 19 ALL CONDUCTORS |
| STRAND AWG SIZE PER CONDUCTOR | 36 ALL CONDUCTORS |
| COLOR | WHITE 1ST POSITION COVER ALL CONDUCTORS |
| VOLTAGE RATING | 600.0 AC MAXIMUM RATED WORKING VOLTAGE ALL CONDUCTORS |

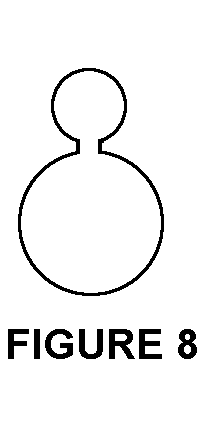

| CROSS-SECTIONAL SHAPE STYLE | 5 FIGURE 8 |
| CROSS-SECTIONAL HEIGHT | 0.047 INCHES NOMINAL |
| CROSS-SECTIONAL WIDTH | 0.094 INCHES NOMINAL |
| TERMINATION TYPE | CONNECTOR EXTERNAL STRAIGHT 1ST END ALL CONDUCTORS UNPROCESSED 2ND END ALL CONDUCTORS |
| SPECIAL FEATURES | GROUND WIRE EACH PAIR |
| MANUFACTURERS CODE | 19207 |
| DESIGN CONTROL REFERENCE | 12301963 |
Restrictions/Controls & Freight Information | NSN 6625-01-118-8695
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051000 | CONNECTIONS PIPE LEAD/BRASS |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
