NSN 6625-01-086-9580 MS245322, MS24532-2, MS245322REVG

Product Details | SPECIAL SCALE METER

6625-01-086-9580 An electrically operated instrument which has a custom scale or digital readout display, but the unit of measurement given is not covered by a more specific item name. For items without a specified unit of measurement, see METER, ARBITRARY SCALE.

Part Alternates: MS245322, MS24532-2, MS245322REVG, MS24532-2REVG, A2746246, A27462-46, AA52508, A-A-52508, AA525081, A-A-52508-1, AA52508-1 , E012207, EE40152, MILI26525, MIL-I-26525, 808503, 809823, 10500705, 1500431, 1501371, 1501463, 1505360, 280746, 3020830, 302-0830, 504AB, 504-AB, 504E, 504H, 504-H, 504K, 504N, 526N1, 576N1, 6625-01-086-9580, 01-086-9580, 6625003216365 , 6625010869580, 010869580

Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
66	07 DEC 1979	01-086-9580	61955 ( METER, SPECIAL SCALE )

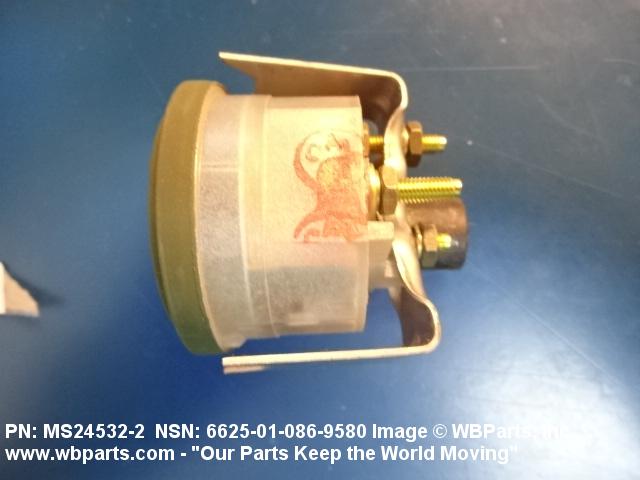

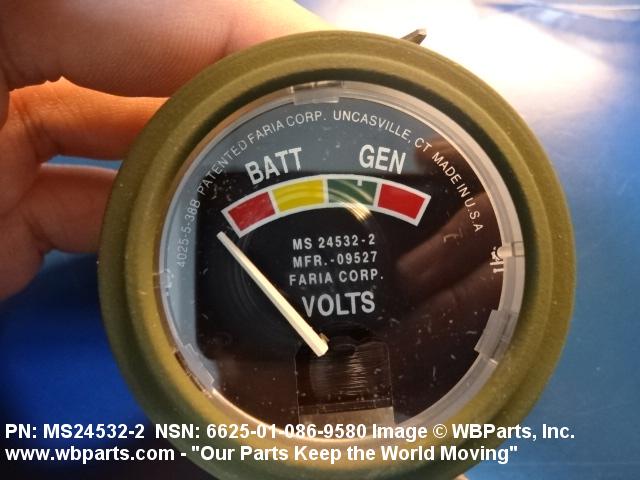

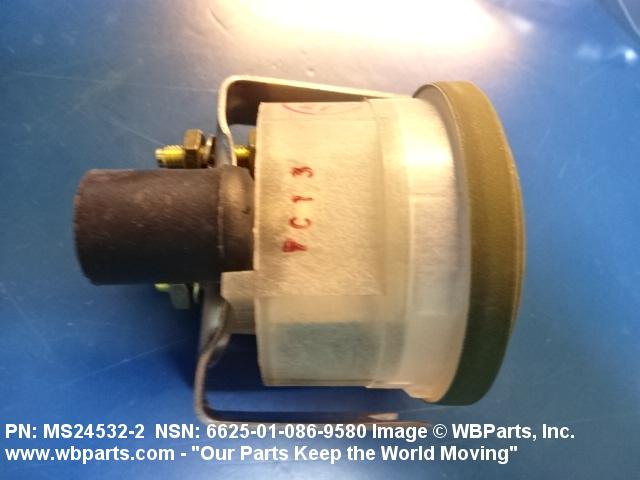

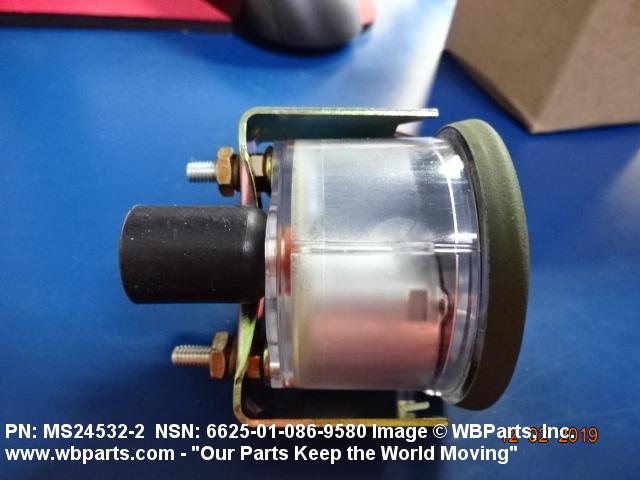

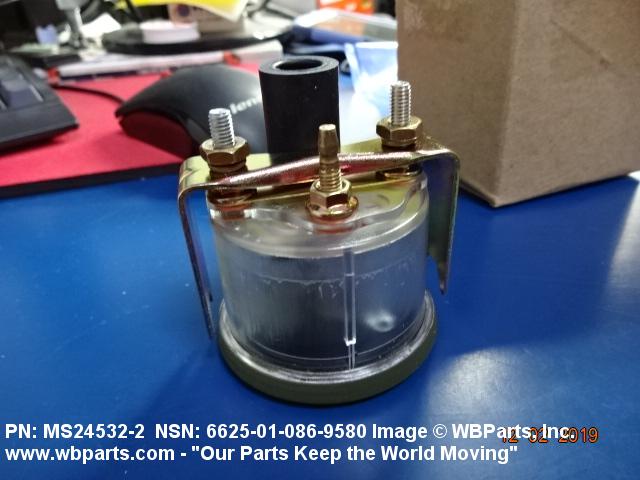

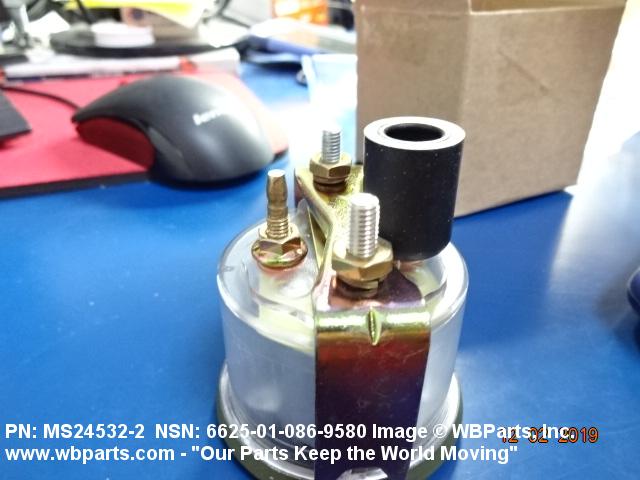

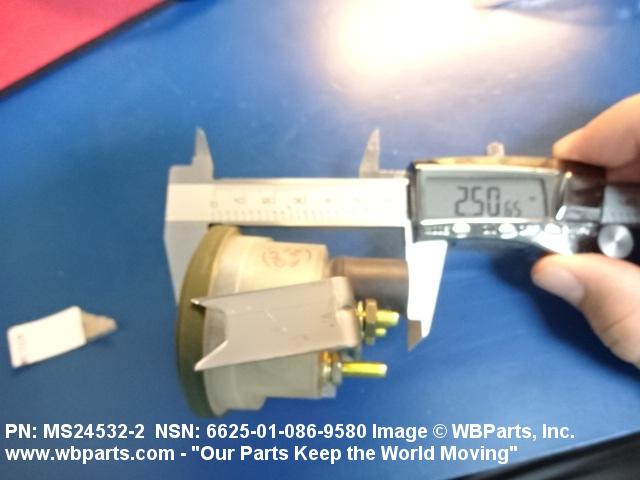

Drawings & Photos | NSN 6625-01-086-9580

Part Number	Request Date	QTY	Origin
6625-01-086-9580	2024-10-298	280	DIBBS
6625-01-086-9580	2024-08-242	5	US
6625-00-321-6365	2024-05-148	1	BR
6625-01-086-9580	2024-01-04	387	DIBBS
6625-01-086-9580	2023-09-271	332	DIBBS
6625-01-086-9580	2023-06-173	399	DIBBS
6625-01-086-9580	2023-05-137	20	Thailand
6625-01-086-9580	2022-07-195	532	DIBBS
6625-01-086-9580	2022-03-87	20	TW
6625-01-086-9580	2022-03-80	20	TW
6625-00-321-6365	2021-08-214	25	AF
6625-01-086-9580	2021-07-188	1	United States
6625-01-086-9580	2021-02-36	2	Malaysia
6625-01-086-9580	2021-01-14	2	Brazil
AA525081	2020-12-344	19	United States
6625-01-086-9580	2020-11-314	1	Brazil
6625-01-086-9580	2020-02-51	1	US
6625-01-086-9580	2020-02-51	1	US
6625-00-321-6365	2019-12-337	50	US
MS245322	2019-11-319	10	Thailand
6625-01-086-9580	2019-09-262	379	DIBBS
6625-01-086-9580	2019-08-233	6	United States
MS24532-2	2019-01-10	8	Thailand
6625003216365	2018-11-306	2	Thailand
MS24532-2	2018-10-292	2	Thailand
6625-01-086-9580	2018-08-241	38	United States
6625-01-086-9580	2018-06-158	657	DIBBS
6625-01-086-9580	2018-06-155	267	DIBBS
6625-01-086-9580	2018-05-128	260	DIBBS
6625-01-086-9580	2018-04-95	260	DIBBS
AA525081	2018-02-40	15	United States
6625-01-086-9580	2018-02-32	1358	DIBBS
6625-00-321-6365	2017-12-362	2	US
6625-01-086-9580	2017-07-192	85	MANUAL
MS24532-2	2017-07-192	85	PK
6625-01-086-9580	2017-05-124	209	DIBBS
6625-01-086-9580	2017-03-74	570	DIBBS
6625-01-086-9580	2017-02-32	9	MANUAL
MS24532-2	2017-02-32	9	United States
6625-01-086-9580	2016-10-294	199	DIBBS
6625-01-086-9580	2016-08-242	638	DIBBS
6625-01-086-9580	2016-08-231	638	DIBBS
6625-01-086-9580	2016-05-122	780	DIBBS
6625-01-086-9580	2016-01-20	483	DIBBS
6625-01-086-9580	2016-01-05	215	DIBBS
6625-01-086-9580	2015-11-307	106	DIBBS
6625-01-086-9580	2015-01-27	824	DIBBS
6625-01-086-9580	2014-10-295	4	United States
AA525081	2014-10-289	4	United States
6625-01-086-9580	2014-10-287	736	DIBBS
6625-01-086-9580	2014-10-275	736	DIBBS
6625-01-086-9580	2014-09-259	10	Germany
6625-01-086-9580	2014-07-198	945	DIBBS
6625-01-086-9580	2014-07-187	945	DIBBS
6625-01-086-9580	2014-06-170	72	DIBBS
6625-01-086-9580	2014-06-159	72	DIBBS
6625-01-086-9580	2014-05-139	30	DIBBS
6625-01-086-9580	2014-05-139	30	DIBBS
6625-01-086-9580	2014-05-139	39	DIBBS
6625-01-086-9580	2014-05-128	39	DIBBS
6625-01-086-9580	2014-05-127	30	DIBBS
6625-01-086-9580	2014-05-127	30	DIBBS
6625-01-086-9580	2014-04-112	10	Chile
6625-01-086-9580	2014-01-07	8	IL
6625-01-086-9580	2013-11-329	8	United States
MS245322	2012-07-184	30	United States
AA52508	2012-06-165	1140	us
6625-01-086-9580	2012-04-104	5	MANUAL
AA525081	2011-09-266	100	United States
6625-01-086-9580	2011-06-155	5	MANUAL
6625-01-086-9580	2011-06-155	5	MANUAL
MS24532-2	2011-06-155	5	PK
MS24532-2	2011-06-155	5	PK
504k	2011-01-10	28	US
AA525081	2011-01-10	28	US
6625-01-086-9580	2010-10-284	24	US
6625-01-086-9580	2009-12-338	1286	DIBBS
6625-01-086-9580	2009-10-303	3236	DIBBS
6625-01-086-9580	2009-04-101	85	Thailand
6625-01-086-9580	2007-10-275	6082	DIBBS
6625-01-086-9580	2007-05-143	711	DIBBS
6625-01-086-9580	2007-03-69	480	DIBBS
6625-01-086-9580	2007-02-44	988	DIBBS
6625-01-086-9580	2006-11-318	40	Turkey

Cross Reference | NSN 6625-01-086-9580

Part Number	Cage Code	Manufacturer
10500705	56161	GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION
1500431	12204	DAIMLER CHRYSLER
1501371	23862	MILITARY VEHICLES OPN GENERAL MOTORS TRUCK AND BUS GROUP
1501371	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1501463	24617	GENERAL MOTORS CORP
1501463	28910	SERVICE SALES OF PITTSBURGH
1501463	70040	GENERAL MOTORS CORP AC ROCHESTER DIV
1505360	12204	DAIMLER CHRYSLER
280746	76371	MECHANICAL EQUIPMENT COMPANY, INC. DBA MECO
302-0830	44940	CUMMINS POWER GENERATION INC.
504-AB	57733	STEWART-WARNER CORPORATION
504-H	57733	STEWART-WARNER CORPORATION
504E	57733	STEWART-WARNER CORPORATION
504K	57733	STEWART-WARNER CORPORATION
504N	98738	HERLEY CHICAGO DBA STEWART WARNER ELECTRONICS
526N1	56442	DIAMOND REO TRUCK CO
576N1	56442	DIAMOND REO TRUCK CO
6625003216365	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
6625010869580	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
808503	34623	AM GENERAL, LLC
809823	34623	AM GENERAL, LLC
A-A-52508	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
A27462-46	13841	TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP.
AA52508-1	09527	THOMAS G. FARIA CORPORATION DBA FARIA MARINE INSTRUMENTS
AA52508-1	58536	FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
E012207	24975	PRESTOLITE ELECTRIC INCORPORATED
EE40152	45152	OSHKOSH CORPORATION
MIL-I-26525	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS24532-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24532-2REVG	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 6625-01-086-9580

Compare

Related Products | NSN 6625-01-086-9580

6625-01-086-9628, 6625-01-086-9639, 6625-01-086-9642, 6625-01-086-9643, 6625-01-086-9644

Technical Data | NSN 6625-01-086-9580

Characteristic	Specifications
INSTALLATION DESIGN	PANEL
(NON-CORE DATA) PANEL FOR WHICH DESIGNED	MAGNETIC
INDICATOR TYPE	DIAL W/POINTER
SCALE MARKING	MARKINGS SHALL BE IN ACCORDANCE WITH MS24532J
ACCURACY IN PERCENT	-2.0 TO 2.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE
SCALE GRADUATION TYPE	NONLINEAR SINGLE INDICATOR SINGLE RANGE
POINTER COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
DIAL SCALE MARKING COLOR	WHITE SINGLE INDICATOR SINGLE RANGE
BACKGROUND COLOR	BLACK SINGLE INDICATOR SINGLE RANGE
MOVEMENT TYPE	MOVING COIL, PERMANENT MAGNET

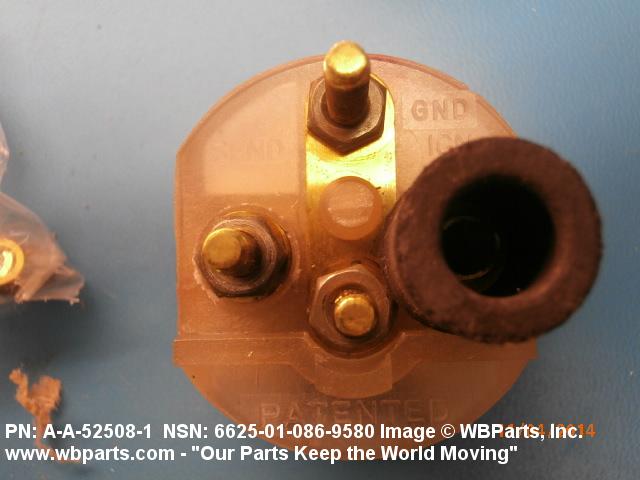

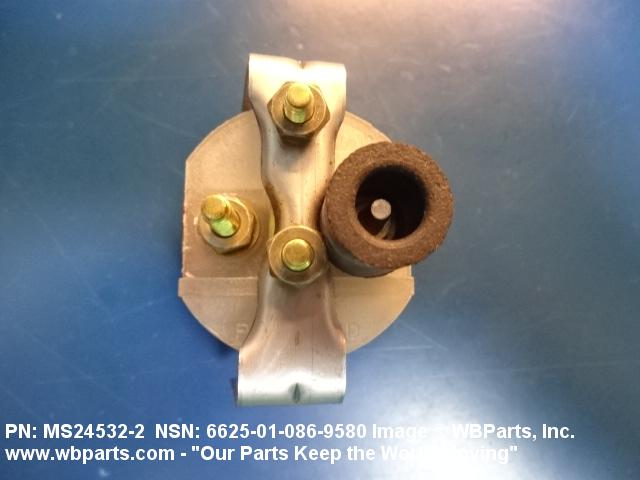

CIRCUIT ATTACHMENT METHOD AND QUANTITY	1 CONNECTOR, RECEPTACLE AND 1 THREADED STUD
CIRCUIT CURRENT FOR WHICH DESIGNED	DC
STYLE DESIGNATOR	C1 ROUND FLUSH MTG

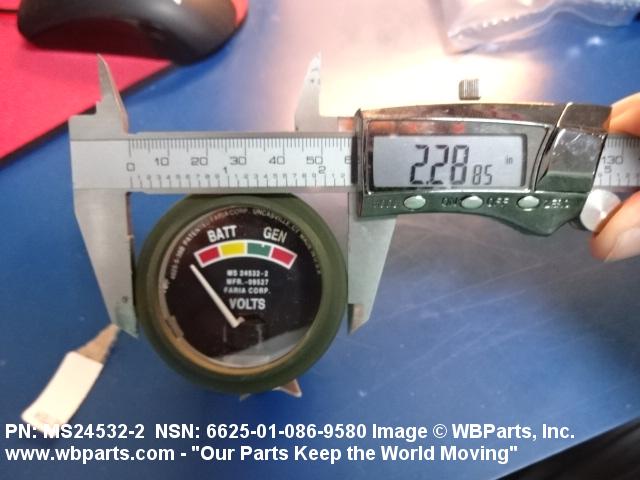

METER BODY DIAMETER BEHIND MOUNTING FLANGE	2.078 INCHES NOMINAL
