NSN 6625-01-085-6665 MR49W200AFAAH, J910078, J91-0078
Product Details | AMMETER

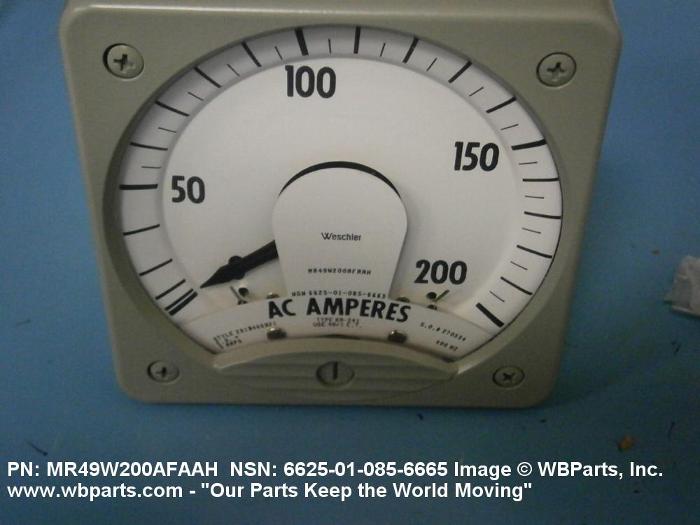

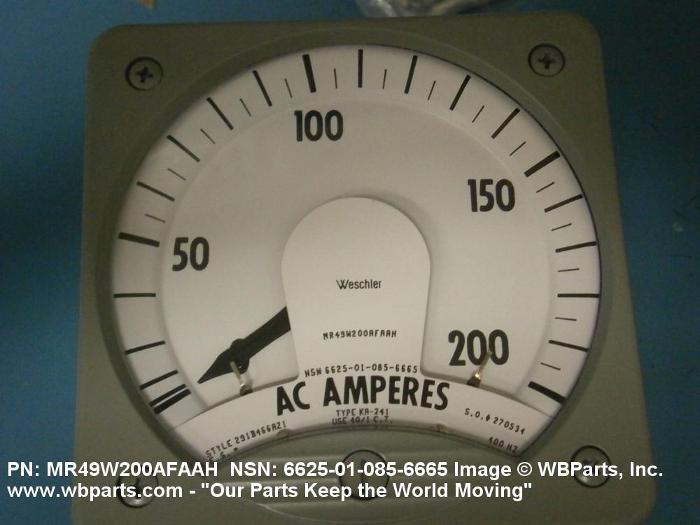

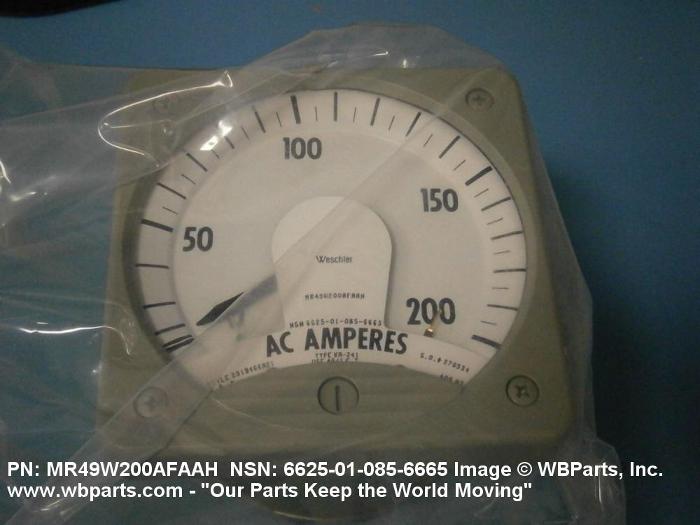

6625-01-085-6665 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: MR49W200AFAAH, J910078, J91-0078, J910079, J91-0079, MIL-DTL-16034/4 , MILDTL160344, MIL-M-16034/4, MILM160344, 6625-01-085-6665, 01-085-6665, 6625010856665, 010856665
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 11 NOV 1979 | 01-085-6665 | 16450 ( AMMETER ) |

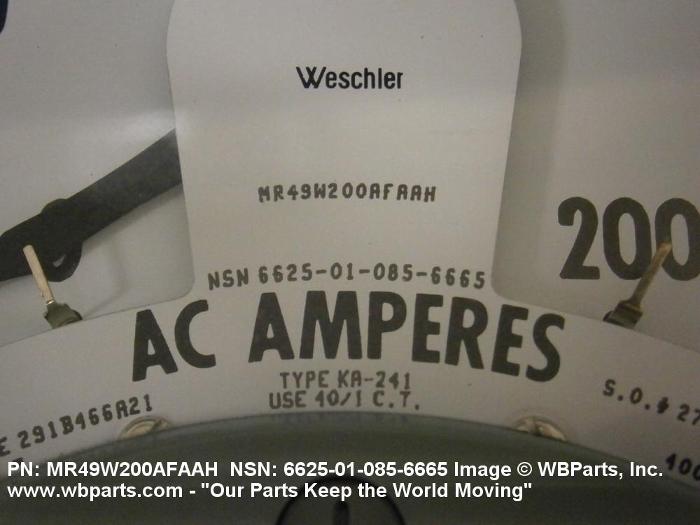

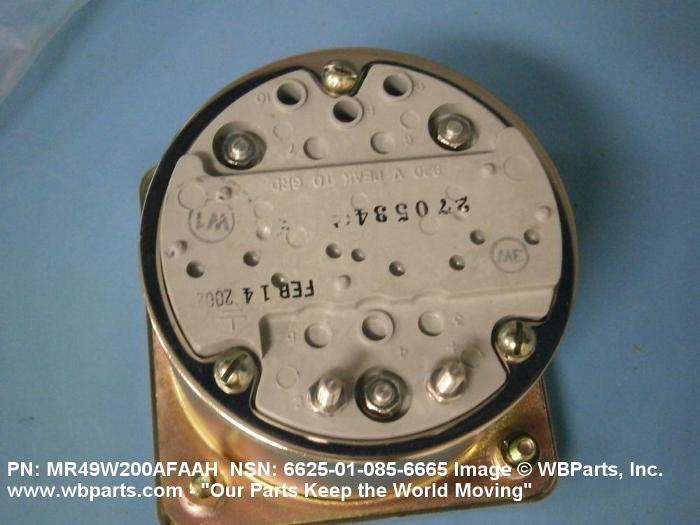

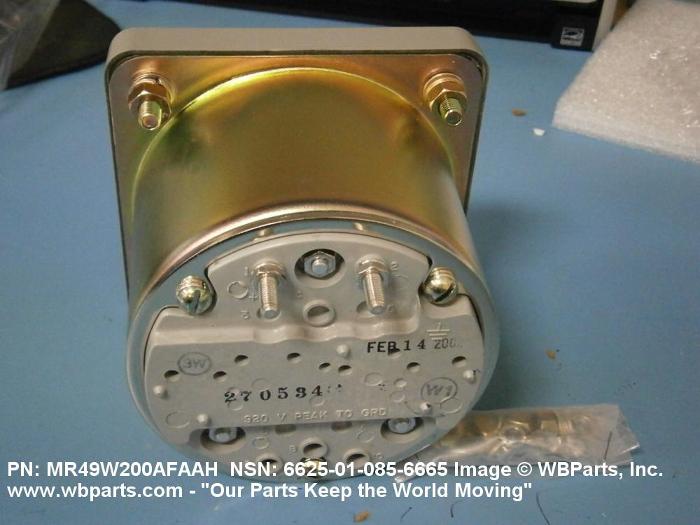

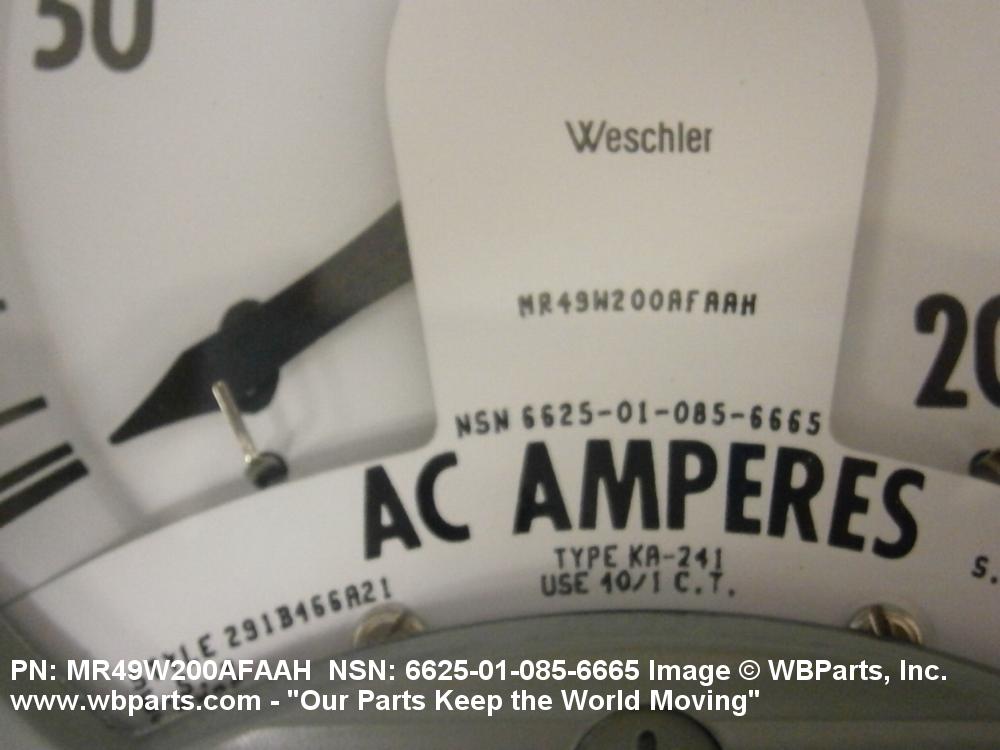

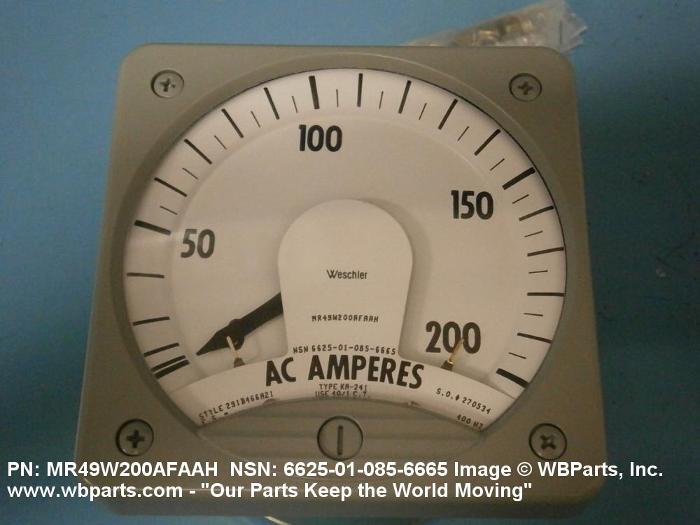

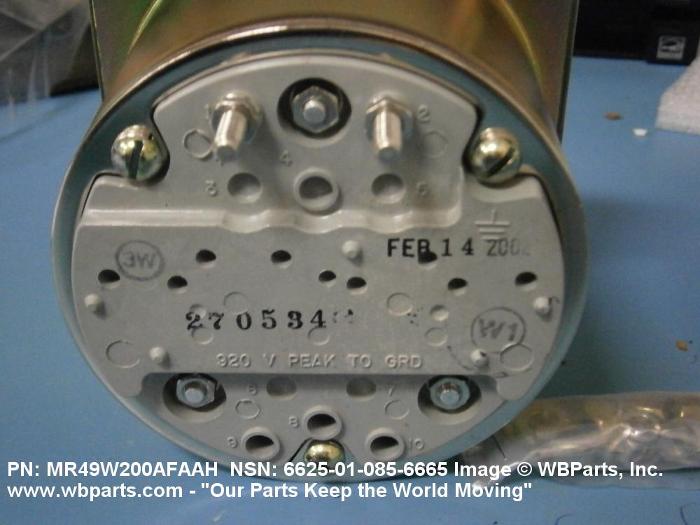

Drawings & Photos | NSN 6625-01-085-6665
Demand History | NSN 6625-01-085-6665
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-085-6665 | 2013-11-324 | 16 | DIBBS |
| 6625-01-085-6665 | 2013-08-227 | 2 | DIBBS |
| 6625-01-085-6665 | 2012-05-129 | 1 | United States |
Cross Reference | NSN 6625-01-085-6665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J91-0078 | 20019 | WARD LEONARD ELECTRIC CO INC |
| J91-0079 | 20019 | WARD LEONARD ELECTRIC CO INC |
| MIL-DTL-16034/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-16034/4 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MR49W200AFAAH | 71669 | GENERAL ELECTRIC CO SWITCHGEAR AND CONTROL DIVISION |
| MR49W200AFAAH | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
