NSN 6625-01-038-9024 AN/ARM-184, ANARM184, 0222000
Product Details | NAVIGATION TEST SET
6625-01-038-9024 An item or group of items specifically designed to examine and evaluate long range, short range or tactical type navigation sets. See also TEST SET, SIGNAL GENERATOR and TEST SET, RADAR.
Part Alternates: AN/ARM-184, ANARM184, 0222000, 0222-000, 0222100, 0222-100, 6625-01-038-9024, 01-038-9024, 6625010389024, 010389024
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 14 APR 1977 | 01-038-9024 | 47412 ( TEST SET, NAVIGATION ) |

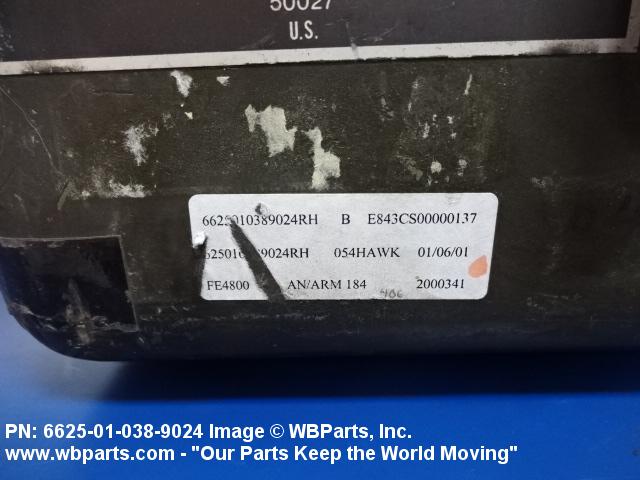

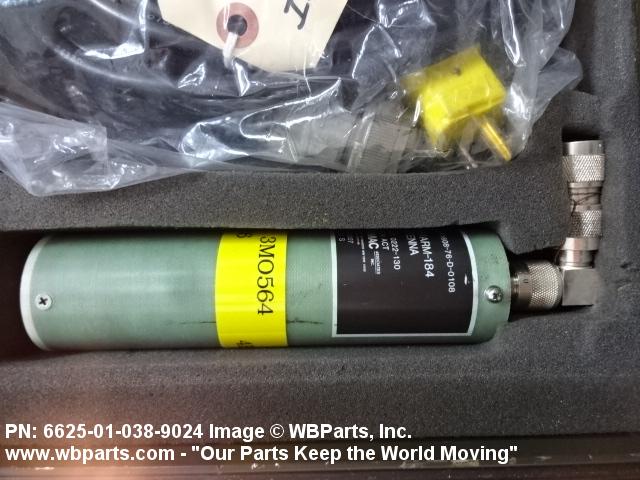

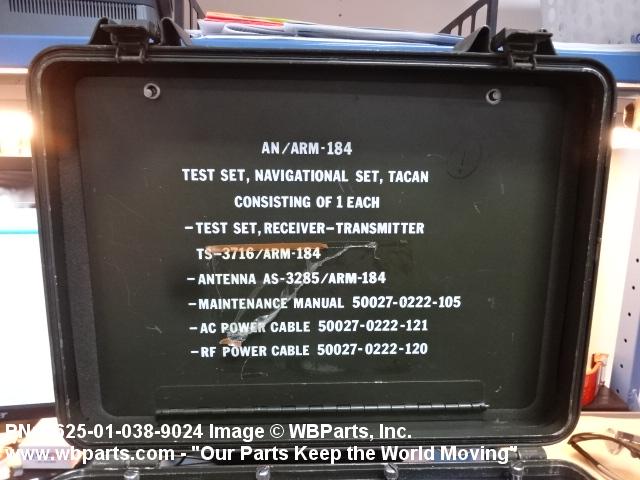

Drawings & Photos | NSN 6625-01-038-9024
Demand History | NSN 6625-01-038-9024
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 6625-01-038-9024 | 2025-05-135 | 1 | TW |
| 6625-01-038-9024 | 2025-03-76 | 1 | United States |
| 6625-01-038-9024 | 2018-10-285 | 1 | United States |
| 6625-01-038-9024 | 2018-10-283 | 1 | United States |
| 6625-01-038-9024 | 2018-10-283 | 1 | United States |
| 6625-01-038-9024 | 2016-08-236 | 1 | United States |
| 6625-01-038-9024 | 2015-02-59 | 1 | US |
| 6625-01-038-9024 | 2014-04-107 | 2 | US |
| 6625-01-038-9024 | 2014-04-92 | 1 | US |
| 6625-01-038-9024 | 2013-06-177 | 2 | Taiwan |
| 6625-01-038-9024 | 2011-08-216 | 1 | US |
| 6625-01-038-9024 | 2011-08-214 | 1 | Philippines |
| 6625-01-038-9024 | 2009-09-264 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-038-9024
Related Products | NSN 6625-01-038-9024
Technical Data | NSN 6625-01-038-9024
| Characteristic | Specifications |
|---|---|
| TEST TYPE FOR WHICH DESIGNED | RANGE ACCURACY, BEARING ACCURACY,RECEIVER SENSITIVITY, TRANSMITTER PEAK POWER OUTPUT |
| OPERATING TEST CAPABILITY | PULSE MODULATION: 962/1213MHZ; RF POWER OUTPUT: 0/100DBM; PEAK PULSE INPUT RF POWER: 100/4000 WATTS; PULSE RATE: 10/7200 PER SECOND |
| ELECTRICAL POWER SOURCE RELATIONSHIP | OPERATING |
| AC VOLTAGE RATING | 115.0 VOLTS NOMINAL |
| FREQUENCY RATING | 50.0 HERTZ MINIMUM AND 400.0 HERTZ MAXIMUM |
| PHASE | SINGLE |
| INCLOSURE FEATURE | SINGLE ITEM W/HOUSING |
| HEIGHT | 12.000 INCHES NOMINAL |
| LENGTH | 20.000 INCHES NOMINAL |
| WIDTH | 14.000 INCHES NOMINAL |
| SPECIAL FEATURES | ASSIGNED NAME: TEST SET, TACAN; 232 CHANNELS; T/R, A/A, A/A BCN MODES; BENCH MOUNTED; 0/40 PCT AMPLITUDE MODULATION |
| III END ITEM IDENTIFICATION | TACTICAL AIR NAVIGATIONAL SYSTEMS |
| III FUNCTIONAL CLASSIFICATION | CC-2.3 |
| III FUNCTIONAL DESCRIPTION | MEASURES RANGE ACCURACY,TESTS ABILITY TO SEARCH AND TRACK,MEASURES BEARING ACCURACY,AND RECEIVER SENSITIVITY,MEASURES TRANSMITTER PEAK POWER OUTPUT |

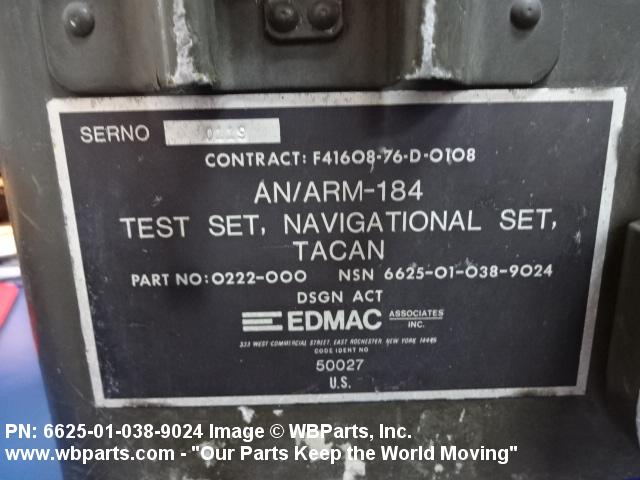

| III TYPE/MODEL DESIGNATION | AN/ARM-184 |
| III RELATIONSHIP TO SIMILAR EQUIPMENT | 6625000892765,6625009335030,66250 09375165,6625009570403,6625007248 868 |
| III REFERENCE DATA AND LITERATURE | TO 33D2-8-375-1 |
| III ENTRY DATE | 80-12-15 |
| (NON-CORE DATA) UNPACKAGED UNIT WEIGHT | 40.000 POUNDS |
| MANUFACTURERS CODE | 50027 |
| DESIGN CONTROL REFERENCE | 0222-000 |
