NSN 6625-01-020-7269 AX1, AX-1, 01-020-7269
Product Details | AMMETER
6625-01-020-7269 An instrument which measures electric current and is calibrated and marked in amperes or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display. For current detecting type of devices, see GALVANOMETER.
Part Alternates: AX1, AX-1, 6625-01-020-7269, 01-020-7269, 6625010207269, 010207269
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
66 | 03 MAY 1976 | 01-020-7269 | 16450 ( AMMETER ) |
Cross Reference | NSN 6625-01-020-7269
Part Number | Cage Code | Manufacturer |
---|---|---|
AX-1 | 13684 | CALIFORNIA HYDROFORMING COMPANY, INC DIV CALIFORNIA HYDROFORMING CO, INC. |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 6625-01-020-7269
Related Products | NSN 6625-01-020-7269
Technical Data | NSN 6625-01-020-7269
Characteristic | Specifications |
---|---|
DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
MOVEMENT TYPE | MOVING IRON VANE |
MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 6900.0 |
CIRCUIT CURRENT FOR WHICH DESIGNED | AC AND DC |

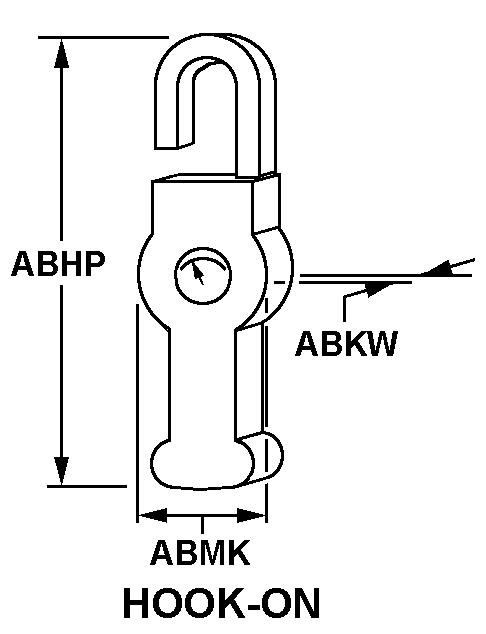

STYLE DESIGNATOR | D5 HOOK-ON |
MATERIAL | PLASTIC PHENOL-FORMALDEHYDE |
FURNISHED ITEMS AND QUANTITY | ADDITIONAL SCALE RANGES 10 |
FEATURES PROVIDED | ZERO ADJUSTER |
MANUFACTURERS CODE | 13684 |
DESIGN CONTROL REFERENCE | AX-1 |
Restrictions/Controls & Freight Information | NSN 6625-01-020-7269
Category | Code | Description |
---|---|---|
Shelf-Life Code: | 0 | Nondeteriorative |
Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
Controlled Inventory Item Code: | U | UNCLASSIFIED |
Precious Metals Indicator Code: | U | Precious metal type is unknown |
Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
Category | Code | Description |
---|---|---|
NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
Less than car load rating | D | 200 |
Less than truck load rating | J | 100.2 |
Water commodity Code | 738 | unknown |
Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
Air Special Handling | Q | Extremely fragile items including delicate instruments. |
Special Handling Code | 9 | unknonwn |
HAZMAT | ||
Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 6625-01-020-7269
Category | Code | Description |
---|---|---|
Fund Code | LP | Items initially authorized for local purchase. |
Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
Agency | DF | Department of the Air Force |
Service Organization | L | Lead Service - 22 (Repairable) |
Reparability | U | AF Equipment Management System (AFEMS) |
Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
Category | Code | Description |
---|---|---|
Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
Agency | DN | Department of the Navy |
Service Organization | N | U.S. Navy |
Reparability | H | Depot Level Reparable |
Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
Controlled Item Code | U | UNCLASSIFIED |
Shelf Life Code | 0 | Nondeteriorative |
Purchasing | QTY UOM |
1 EA : Each |
