NSN 6625-00-932-3133 196269, 00-932-3133, 009323133
Product Details | VOLTMETER
6625-00-932-3133 An instrument which measures electrical potential and is calibrated in volts or any multiple and/or submultiple thereof. The value may be expressed by means of a pointer and calibrated dial or a digital readout display.
Part Alternates: 196269, 6625-00-932-3133, 00-932-3133, 6625009323133, 009323133
Instruments and Laboratory Equipment | Electrical and Electronic Properties Measuring and Testing Instruments
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 66 | 15 FEB 1967 | 00-932-3133 | 16449 ( VOLTMETER ) |
Drawings & Photos | NSN 6625-00-932-3133
Cross Reference | NSN 6625-00-932-3133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 196269 | 65092 | SOLARTRON ELECTRONICS INC WESTON INSTRUMENTS DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 6625-00-932-3133
Technical Data | NSN 6625-00-932-3133
| Characteristic | Specifications |
|---|---|
| INSTALLATION DESIGN | PANEL |
| (NON-CORE DATA) PANEL FOR WHICH DESIGNED | MAGNETIC OR NONMAGNETIC |
| MEASUREMENT RANGE | 0.0 TO 15.0 VOLTS, AC SINGLE INDICATOR SINGLE RANGE |
| ACCURACY IN PERCENT | -3.0 TO 3.0 AT FULL SCALE SINGLE INDICATOR SINGLE RANGE |
| DIAL SCALE MARKING COLOR | BLACK SINGLE INDICATOR SINGLE RANGE |
| BACKGROUND COLOR | WHITE SINGLE INDICATOR SINGLE RANGE |
| MOVEMENT TYPE | MOVING IRON VANE |
| MOVEMENT SUSPENSION METHOD | JEWEL PIVOT BASE |
| CIRCUIT ATTACHMENT METHOD AND QUANTITY | 2 SOLDER LUG |
| CIRCUIT CURRENT FOR WHICH DESIGNED | AC |
| FREQUENCY RATING | 400.0 HERTZ NOMINAL |
| STYLE DESIGNATOR | C1 ROUND FLUSH MTG |
| METER BODY DIAMETER BEHIND MOUNTING FLANGE | 2.180 INCHES NOMINAL |
| METER DEPTH BEHIND MOUNTING FLANGE | 2.500 INCHES NOMINAL |
| OVERALL DIAMETER | 2.680 INCHES NOMINAL |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
| MOUNTING HOLE DIAMETER | 0.125 INCHES NOMINAL |

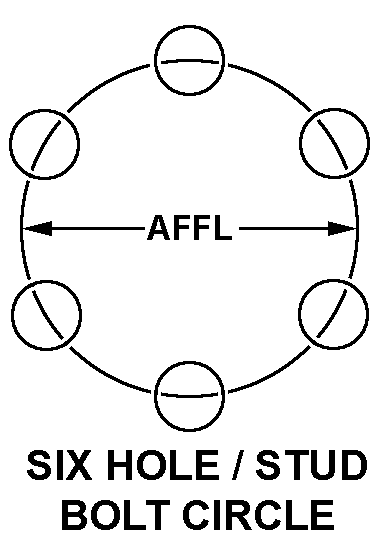

| MOUNTING ARRANGEMENT STYLE | E7 SIX HOLE/STUD BOLT CIRCLE |
| MOUNTING BOLT CIRCLE DIAMETER | 2.438 INCHES NOMINAL |
| MANUFACTURERS CODE | 65092 |
| DESIGN CONTROL REFERENCE | 196269 |
Restrictions/Controls & Freight Information | NSN 6625-00-932-3133
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 136740 | METERS ELEC/PARTS |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 657 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
